TH-55CX700M TH-60CX700M
7

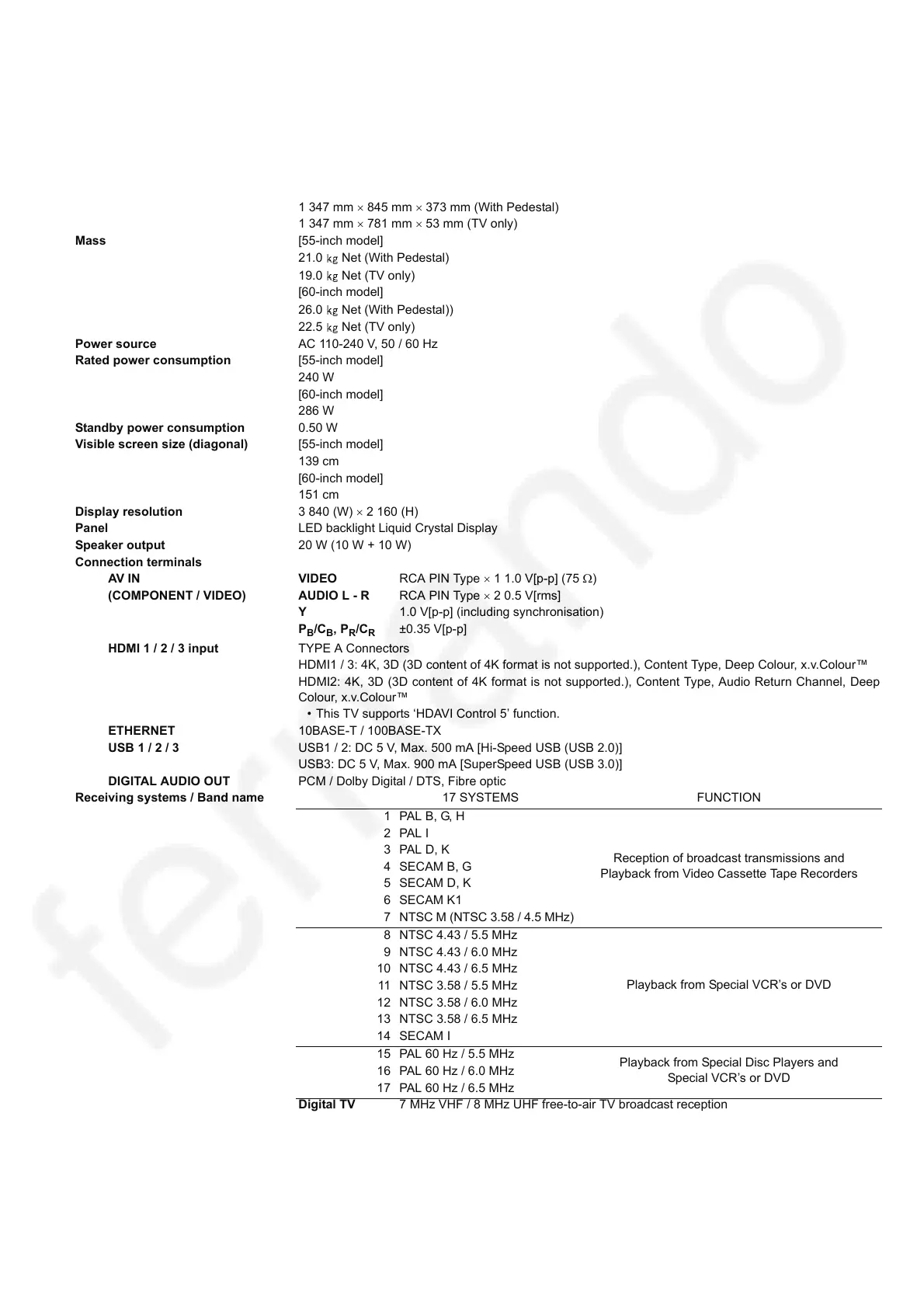

4 Specifications
Dimensions (W H D) [55-inch model]
1 239 mm 768 mm 235 mm (With Pedestal)
1 239 mm 719 mm 53 mm (TV only)
[60-inch model]
1 347 mm 845 mm 373 mm (With Pedestal)
1 347 mm 781 mm 53 mm (TV only)
Mass [55-inch model]
21.0 Net (With Pedestal)
19.0 Net (TV only)
[60-inch model]
26.0 Net (With Pedestal))
22.5 Net (TV only)
Power source AC 110-240 V, 50 / 60 Hz
Rated power consumption [55-inch model]
240 W
[60-inch model]
286 W
Standby power consumption 0.50 W
Visible screen size (diagonal) [55-inch model]
139 cm
[60-inch model]
151 cm
Display resolution 3 840 (W) 2 160 (H)
Panel LED backlight Liquid Crystal Display
Speaker output 20 W (10 W + 10 W)
Connection terminals
AV IN VIDEO RCA PIN Type 1 1.0 V[p-p] (75 )
(COMPONENT / VIDEO) AUDIO L - R RCA PIN Type 2 0.5 V[rms]
Y 1.0 V[p-p] (including synchronisation)
P
B
/C
B
, P
R
/C
R
±0.35 V[p-p]
HDMI 1 / 2 / 3 input TYPE A Connectors
HDMI1 / 3: 4K, 3D (3D content of 4K format is not supported.), Content Type, Deep Colour, x.v.Colour™
HDMI2: 4K, 3D (3D content of 4K format is not supported.), Content Type, Audio Return Channel, Deep
Colour, x.v.Colour™
• This TV supports ‘HDAVI Control 5’ function.
ETHERNET 10BASE-T / 100BASE-TX
USB 1 / 2 / 3 USB1 / 2: DC 5 V, Max. 500 mA [Hi-Speed USB (USB 2.0)]
USB3: DC 5 V, Max. 900 mA [SuperSpeed USB (USB 3.0)]
DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fibre optic
Receiving systems / Band name 17 SYSTEMS FUNCTION
1 PAL B, G, H
Reception of broadcast transmissions and
Playback from Video Cassette Tape Recorders
2PAL I
3PAL D, K
4 SECAM B, G
5SECAM D, K
6 SECAM K1
7
NTSC M (NTSC 3.58 / 4.5 MHz)
8 NTSC 4.43 / 5.5 MHz
Playback from Special VCR’s or DVD
9 NTSC 4.43 / 6.0 MHz
10 NTSC 4.43 / 6.5 MHz
11 NTSC 3.58 / 5.5 MHz
12 NTSC 3.58 / 6.0 MHz
13 NTSC 3.58 / 6.5 MHz
14 SECAM I
15 PAL 60 Hz / 5.5 MHz
Playback from Special Disc Players and
Special VCR’s or DVD
16 PAL 60 Hz / 6.0 MHz
17 PAL 60 Hz / 6.5 MHz
Digital TV 7 MHz VHF / 8 MHz UHF free-to-air TV broadcast reception
