TH-55CX700M TH-60CX700M
35
8 Measurements and Adjustments
8.1. Voltage chart of A-board
Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.

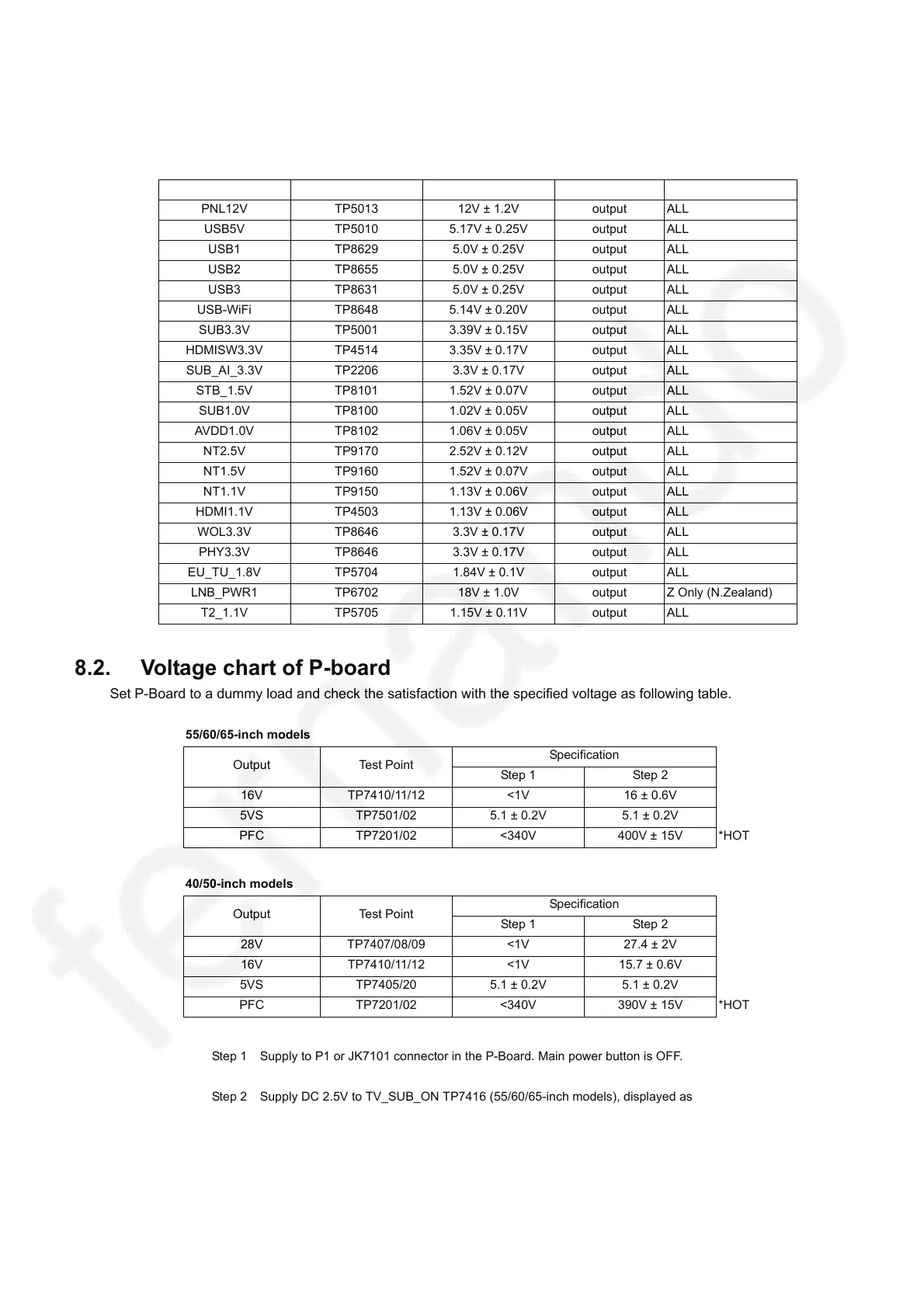

8.2. Voltage chart of P-board
Set P-Board to a dummy load and check the satisfaction with the specified voltage as following table.
Checked Name Test Point Specification In/Out Target Board Suffix
PNL12V TP5013 12V ± 1.2V output ALL
USB5V TP5010 5.17V ± 0.25V output ALL
USB1 TP8629 5.0V ± 0.25V output ALL
USB2 TP8655 5.0V ± 0.25V output ALL
USB3 TP8631 5.0V ± 0.25V output ALL
USB-WiFi TP8648 5.14V ± 0.20V output ALL
SUB3.3V TP5001 3.39V ± 0.15V output ALL
HDMISW3.3V TP4514 3.35V ± 0.17V output ALL
SUB_AI_3.3V TP2206 3.3V ± 0.17V output ALL
STB_1.5V TP8101 1.52V ± 0.07V output ALL
SUB1.0V TP8100 1.02V ± 0.05V output ALL
AVDD1.0V TP8102 1.06V ± 0.05V output ALL
NT2.5V TP9170 2.52V ± 0.12V output ALL
NT1.5V TP9160 1.52V ± 0.07V output ALL
NT1.1V TP9150 1.13V ± 0.06V output ALL
HDMI1.1V TP4503 1.13V ± 0.06V output ALL
WOL3.3V TP8646 3.3V ± 0.17V output ALL
PHY3.3V TP8646 3.3V ± 0.17V output ALL
EU_TU_1.8V TP5704 1.84V ± 0.1V output ALL
LNB_PWR1 TP6702 18V ± 1.0V output Z Only (N.Zealand)
T2_1.1V TP5705 1.15V ± 0.11V output ALL
55/60/65-inch models
Output Test Point
Specification
Step 1 Step 2
16V TP7410/11/12 <1V 16 ± 0.6V
5VS TP7501/02 5.1 ± 0.2V 5.1 ± 0.2V
PFC TP7201/02 <340V 400V ± 15V *HOT
40/50-inch models
Output Test Point
Specification
Step 1 Step 2
28V TP7407/08/09 <1V 27.4 ± 2V
16V TP7410/11/12 <1V 15.7 ± 0.6V
5VS TP7405/20 5.1 ± 0.2V 5.1 ± 0.2V
PFC TP7201/02 <340V 390V ± 15V *HOT
Step 1 Supply to P1 or JK7101 connector in the P-Board. Main power button is OFF.
Step 2 Supply DC 2.5V to TV_SUB_ON TP7416 (55/60/65-inch models), displayed as
SWITCH.
Supply DC 2.5V to TV_SUB_ON TP7419 (40/50-inch models), displayed as SWITCH.
