TH-55CX700M TH-60CX700M
40

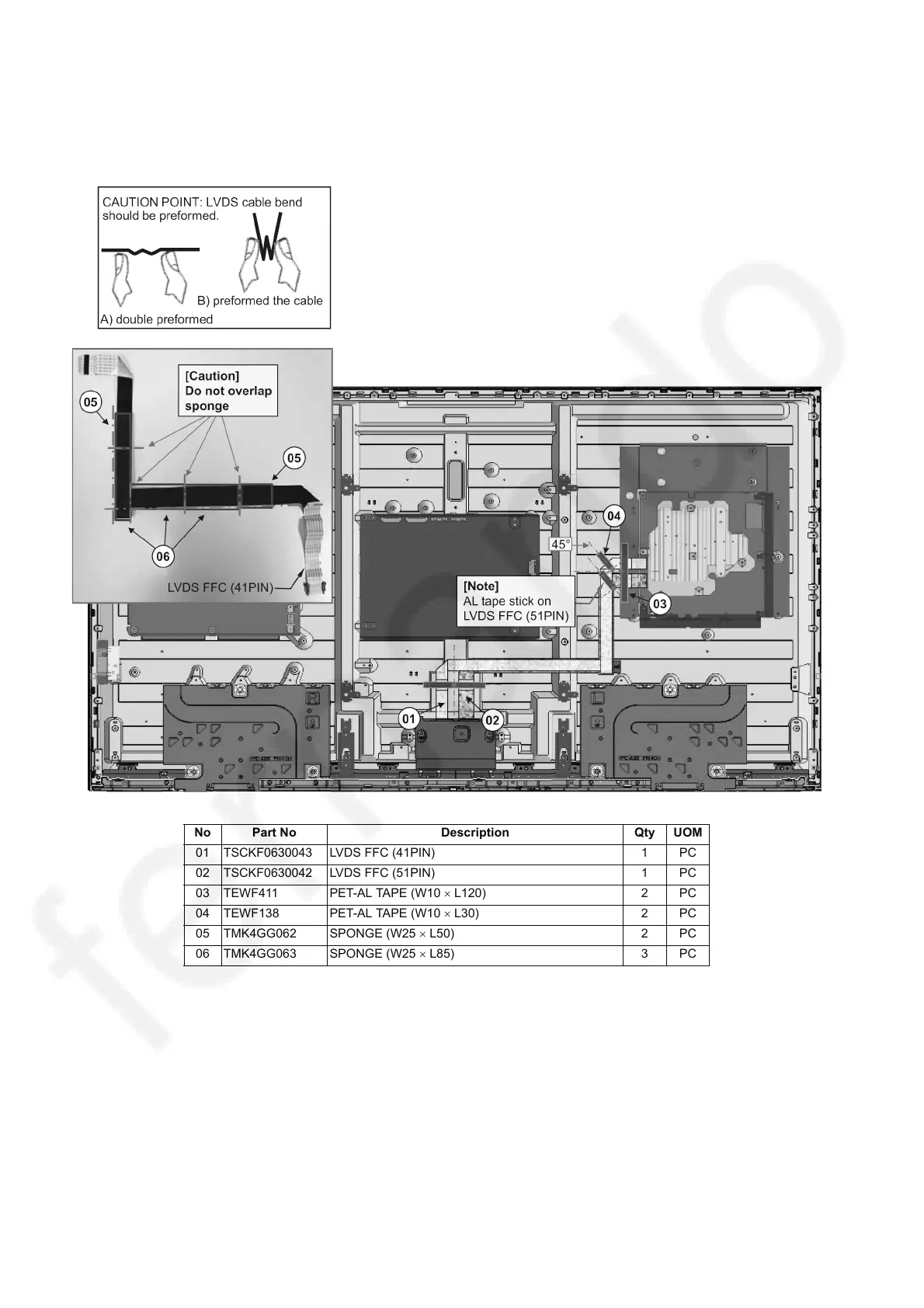

10.4. Wire Dressing 4 (TH-60CX700M)
1. Stick sponges to LVDs cable.
2. Do wire dressing follow below spec.
3. Stick tapes (rub evently at least twice)
No Part No Description Qty UOM
01 TSCKF0630043 LVDS FFC (41PIN) 1 PC
02 TSCKF0630042 LVDS FFC (51PIN) 1 PC
03 TEWF411 PET-AL TAPE (W10 L120) 2 PC
04 TEWF138 PET-AL TAPE (W10 L30) 2 PC
05 TMK4GG062 SPONGE (W25 L50) 2 PC
06 TMK4GG063 SPONGE (W25 L85) 3 PC
