SECTION 2 DISASSEMBLY PROCEDURES
<65BFE1W>
2.4. Wiring connections
2.4.1 Caution statement
Caution:
Please confirm that all flexible cables are assembled correctly.
Also make sure that they are locked in the connectors.
Verify by giving the flexible cables a very slight pull.

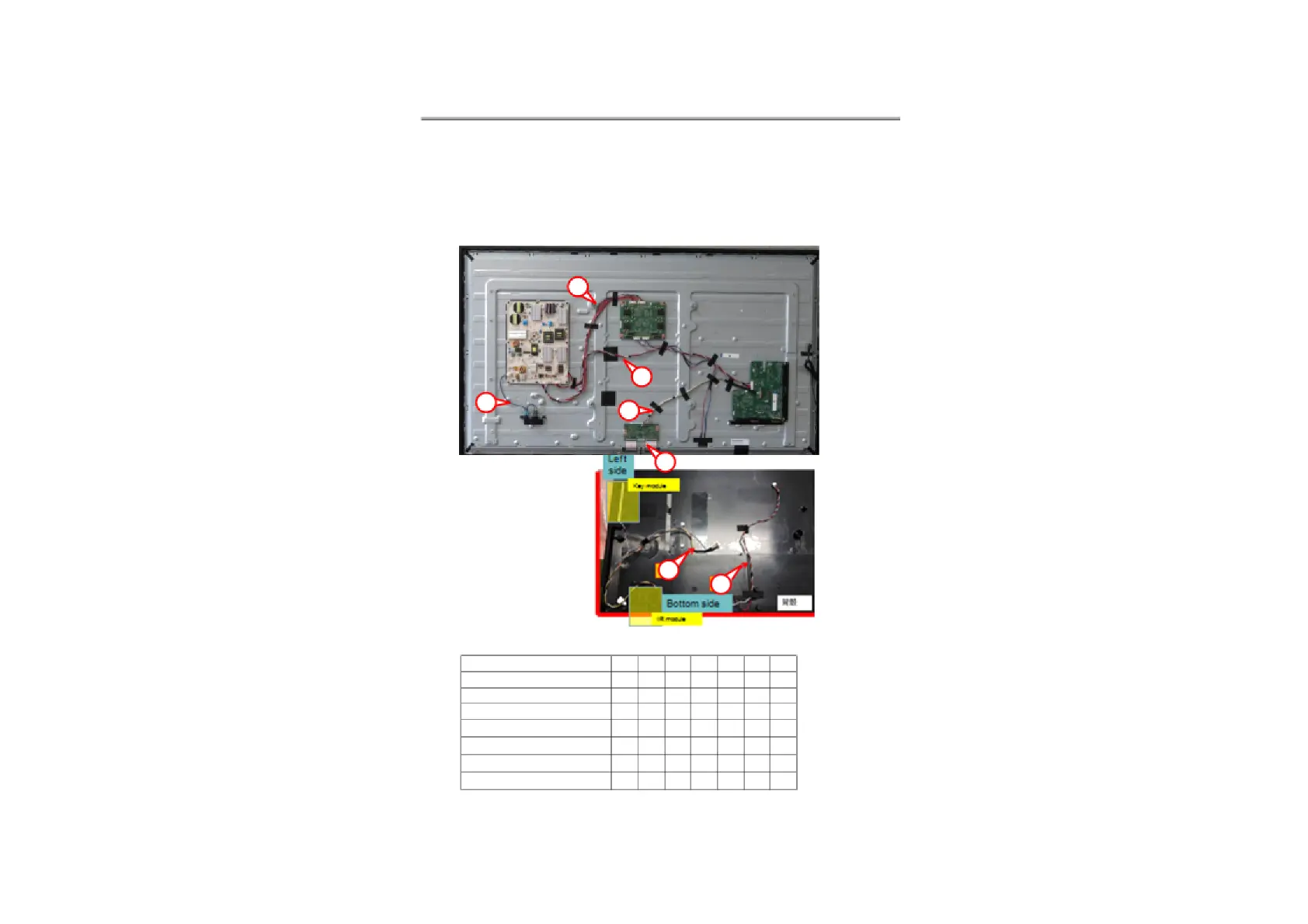

2.4.2. Wiring
1 2 3 4 5 6 7
P Module - AC inlet
●
P Module - Converter Module
●
A Module - P Module
●
A Module - T-CON
●
T-CON - Panel (LVDS)
●
A Module - Speaker Terminal
●
A Module - KEY Module / IR Module
●
7
6
3
1
2
4
5
To Next Page
