11
English

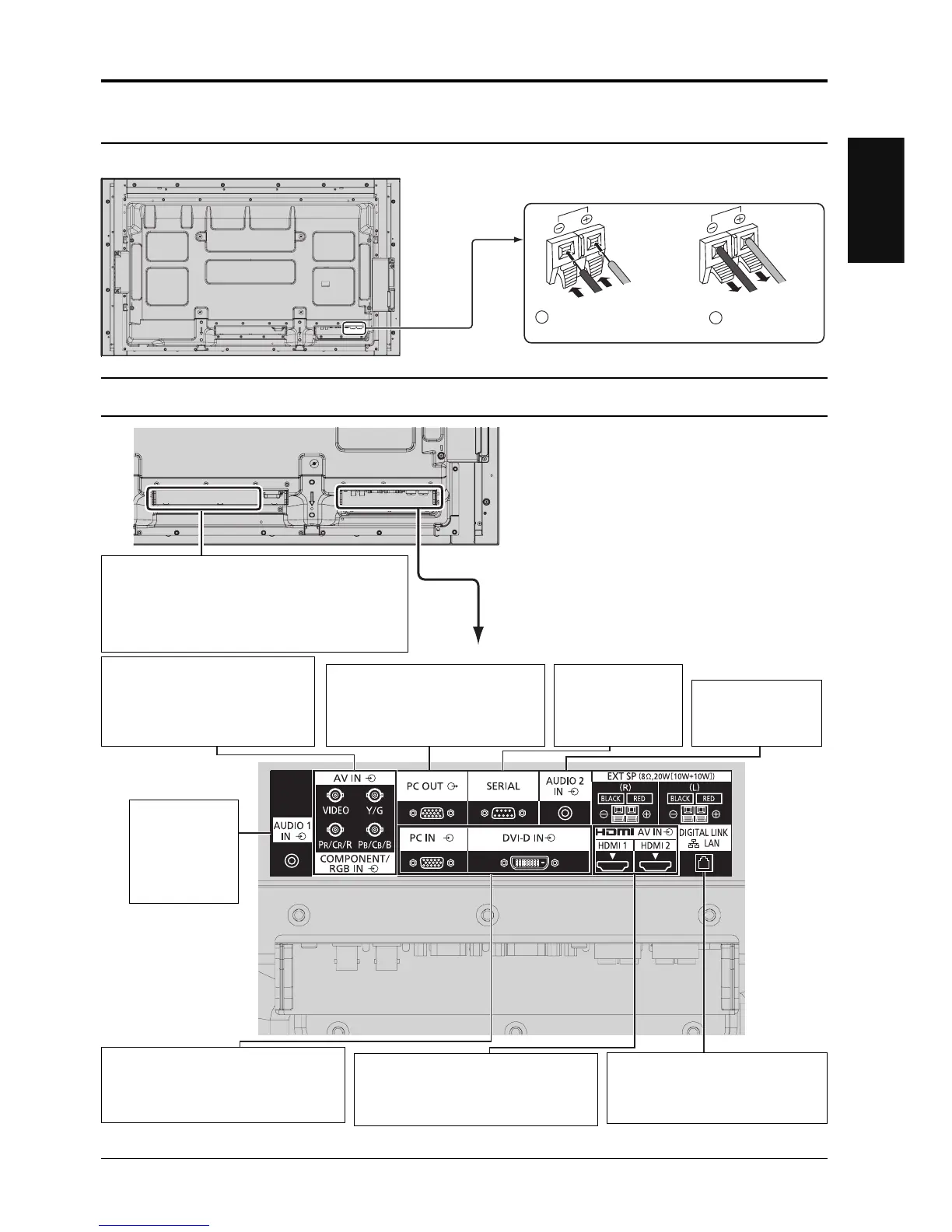

Video equipment connection
Connections
Please use 8 Ω/10 W speaker.
Speaker connection
Red
Black
Red
Black
1
While pressing the lever,
insert the core wire.
2
Return the lever.
*
DIGITAL LINK is technology that enables signals such as audio and video to be transmitted using twisted pair cables.
For details, see the Operating Instructions - “Network Operations”.
SLOT: Terminal board (optional accessories)
insert slot (see page 3)
Note:
The right side slot is for terminal board with 2-slot
width. The terminal board with 1-slot width does
not function when installed in the right side slot.
AUDIO 1 IN:
Audio input
terminal shared
with VIDEO and
COMPONENT/
RGB IN.
PC IN:
PC Input Terminal
Connect to video terminal of PC or equipment
with Y, P
B
(C
B
) and P
R
(C
R
) output.
DVI-D IN: DVI-D Input Terminal
LAN, DIGITAL LINK*
Connect to a DIGITAL LINK input terminal network to control
the Display. Alternatively, connect to a device that sends
video and audio signals via the DIGITAL LINK terminal.
SERIAL:
Serial Control Terminal.
Control the Display
by connecting to
PC.
AV IN (VIDEO): Composite Video
Input Terminal
COMPONENT/RGB IN: Component/
RGB Video
Input Terminal
AV IN (HDMI 1, HDMI 2): HDMI Input
Terminal
Connect to video equipment such as
VCR or DVD player.
AUDIO 2 IN:
Audio input terminal
shared with DVI-D
IN and PC IN.
PC OUT:
Monitor Out Terminal.
Video signals being reproduced on
the display are output to another
sub monitor as PC video signals.
To Next Page
