TH-L42E6S
14
7 Disassembly and Assembly Instructions

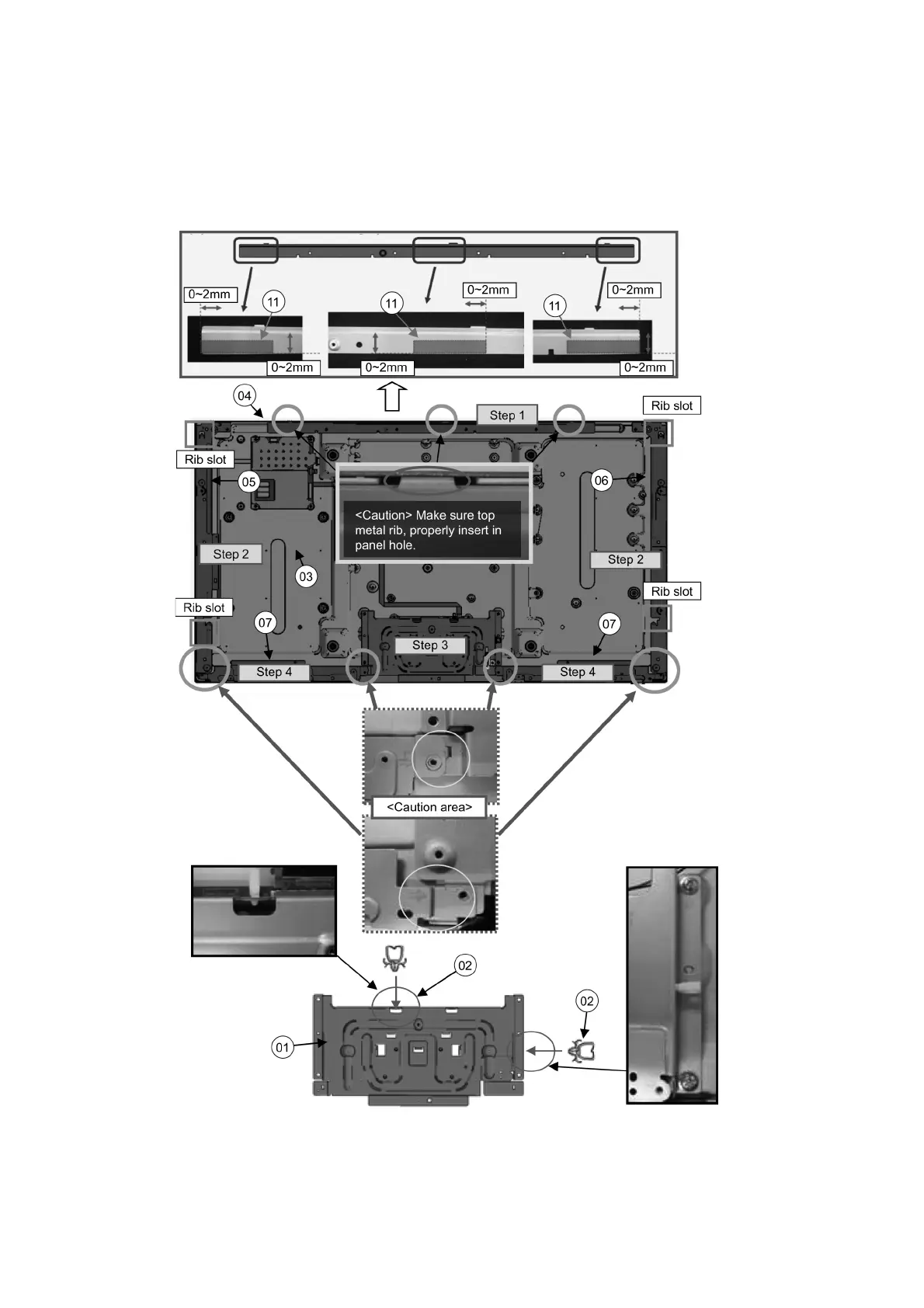

7.1. Panel Assembly
1. Install KEY BUTTON.
2. Install Rear Panel Metal follow Step 1 2 3 4.
3. Install METAL_BRACKET_BOTTOM after all rear panel fixing.
