5 Service Mode
5.1. How to enter into Service Mode
5.1.1. Purpose
After exchange parts, check and adjust the contents of adjustment mode.
While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.
5.1.2. Key command
[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )
5.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
5.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.

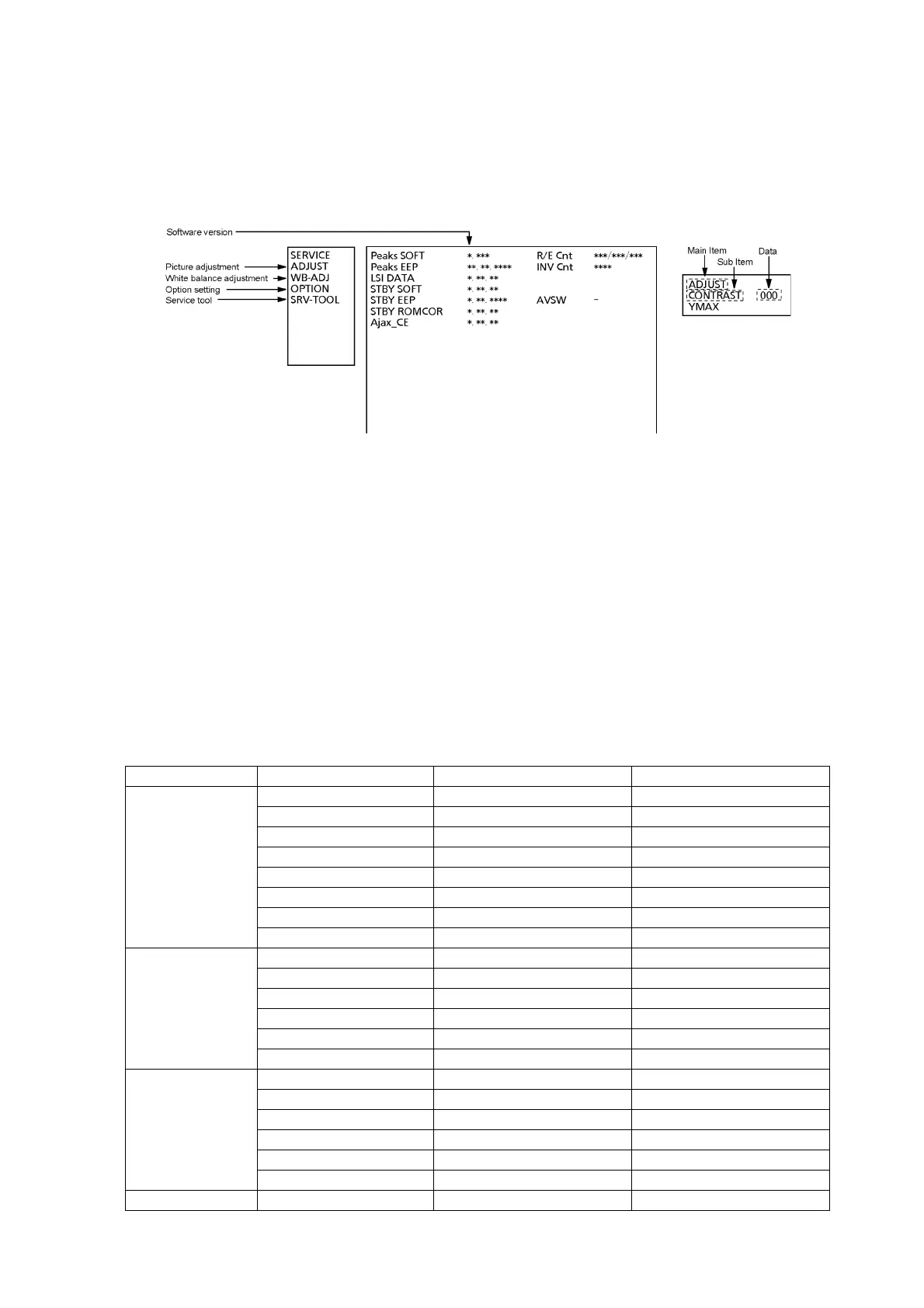

Main item Sub item Sample Data Remark
ADJUST CONTRAST default value
COLOR default value
TINT default value
SUB-BRT default value
BACKLGT default value
B-Y-G default value
R-Y-A default value
V COM default value
WB-ADJ R-GAIN default value
G-GAIN default value
B-GAIN default value
R-CENT default value
G-CENT default value
B-CENT default value
OPTION Boot default value Factory Preset.
STBY-SET default value
EMERGENCY default value
CLK MODE default value
CLOCK default value
EDID-CLK default value
SRV-TOOL default value See next.
