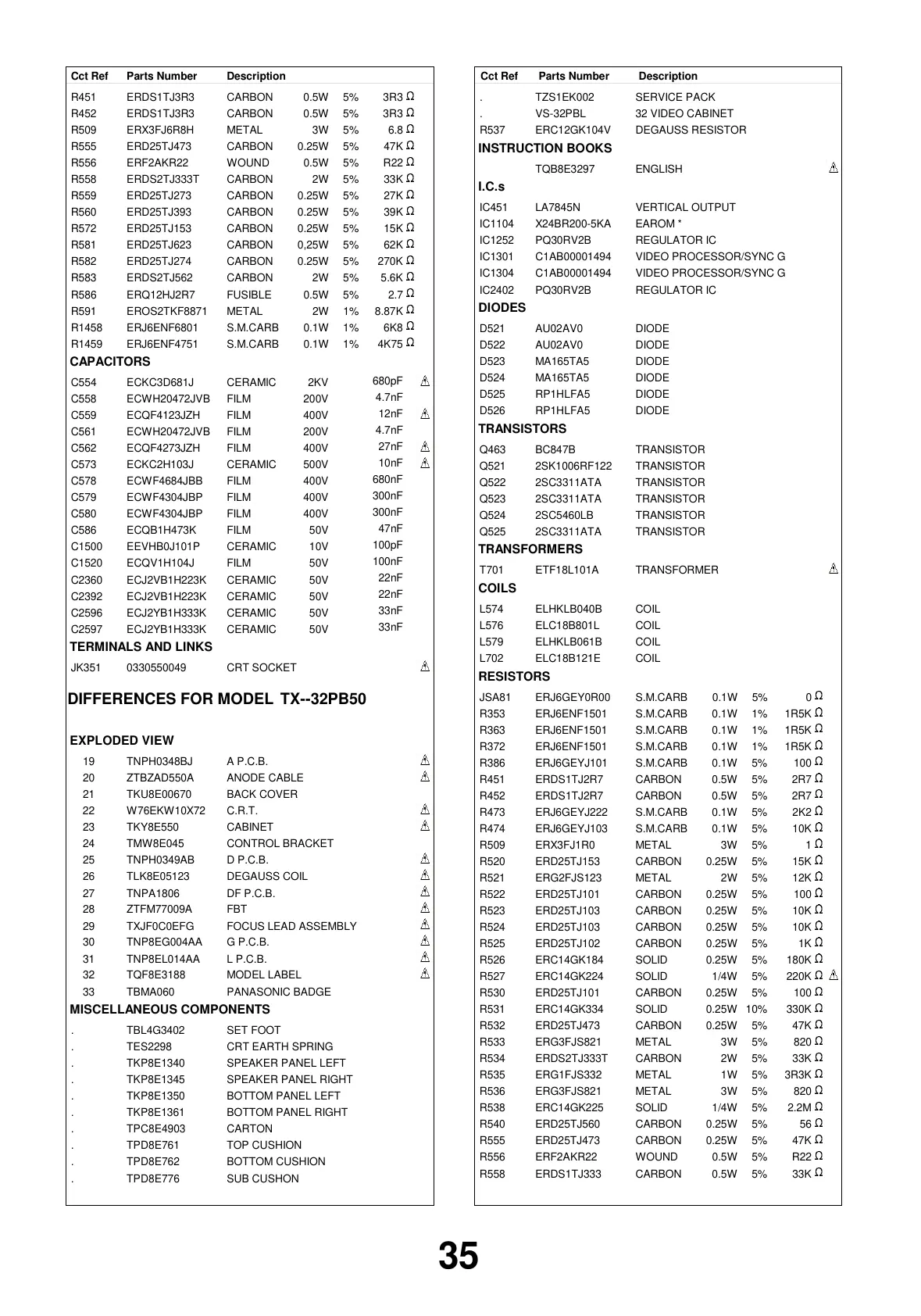

Panasonic TX-32PB50 - Page 35

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
CARBONR451 ERDS1TJ3R3 0.5W 5% 3R3
CARBONR452 ERDS1TJ3R3 0.5W 5% 3R3
METALR509 ERX3FJ6R8H 3W 5% 6.8
CARBONR555 ERD25TJ473 0.25W 5% 47K
WOUNDR556 ERF2AKR22 0.5W 5% R22
CARBONR558 ERDS2TJ333T 2W 5% 33K
CARBON R559 ERD25TJ273 0.25W 5% 27K
CARBON R560 ERD25TJ393 0.25W 5% 39K
CARBONR572 ERD25TJ153 0.25W 5% 15K
CARBONR581 ERD25TJ623 0,25W 5% 62K
CARBONR582 ERD25TJ274 0.25W 5% 270K
CARBONR583 ERDS2TJ562 2W 5% 5.6K
FUSIBLER586 ERQ12HJ2R7 0.5W 5% 2.7
METALR591 EROS2TKF8871 2W 1% 8.87K
S.M.CARBR1458 ERJ6ENF6801 0.1W 1% 6K8
S.M.CARBR1459 ERJ6ENF4751 0.1W 1% 4K75
CAPACITORS
CERAMIC C554 ECKC3D681J 2KV
680pF
FILMC558 ECWH20472JVB 200V
4.7nF
FILMC559 ECQF4123JZH 400V
12nF
FILMC561 ECWH20472JVB 200V
4.7nF
FILM C562 ECQF4273JZH 400V
27nF
CERAMIC C573 ECKC2H103J 500V
10nF
FILMC578 ECWF4684JBB 400V
680nF
FILMC579 ECWF4304JBP 400V
300nF
FILMC580 ECWF4304JBP 400V
300nF
FILMC586 ECQB1H473K 50V
47nF
CERAMICC1500 EEVHB0J101P 10V
100pF
FILMC1520 ECQV1H104J 50V
100nF
CERAMICC2360 ECJ2VB1H223K 50V
22nF
CERAMICC2392 ECJ2VB1H223K 50V
22nF
CERAMICC2596 ECJ2YB1H333K 50V
33nF
CERAMICC2597 ECJ2YB1H333K 50V
33nF
TERMINALS AND LINKS
CRT SOCKET JK351 0330550049
DIFFERENCES FOR MODEL TX--32PB50
EXPLODED VIEW
A P.C.B. 19 TNPH0348BJ
ANODE CABLE 20 ZTBZAD550A
BACK COVER 21 TKU8E00670
C.R.T. 22 W76EKW10X72
CABINET 23 TKY8E550
CONTROL BRACKET 24 TMW8E045
D P.C.B. 25 TNPH0349AB
DEGAUSS COIL 26 TLK8E05123
DF P.C.B. 27 TNPA1806
FBT 28 ZTFM77009A
FOCUS LEAD ASSEMBLY 29 TXJF0C0EFG
G P.C.B. 30 TNP8EG004AA
L P.C.B. 31 TNP8EL014AA
MODEL LABEL 32 TQF8E3188
PANASONIC BADGE 33 TBMA060
MISCELLANEOUS COMPONENTS
SET FOOT . TBL4G3402
CRT EARTH SPRING . TES2298
SPEAKER PANEL LEFT. TKP8E1340
SPEAKER PANEL RIGHT. TKP8E1345
BOTTOM PANEL LEFT. TKP8E1350
BOTTOM PANEL RIGHT. TKP8E1361
CARTON . TPC8E4903
TOP CUSHION . TPD8E761
BOTTOM CUSHION . TPD8E762
SUB CUSHON . TPD8E776
SERVICE PACK . TZS1EK002
32 VIDEO CABINET . VS-32PBL
DEGAUSS RESISTOR R537 ERC12GK104V
INSTRUCTION BOOKS
ENGLISH TQB8E3297
I.C.s
VERTICAL OUTPUT IC451 LA7845N
EAROM * IC1104 X24BR200-5KA
REGULATOR IC IC1252 PQ30RV2B
VIDEO PROCESSOR/SYNC GIC1301 C1AB00001494
VIDEO PROCESSOR/SYNC GIC1304 C1AB00001494
REGULATOR IC IC2402 PQ30RV2B
DIODES
DIODE D521 AU02AV0
DIODE D522 AU02AV0
DIODE D523 MA165TA5
DIODE D524 MA165TA5
DIODE D525 RP1HLFA5
DIODE D526 RP1HLFA5
TRANSISTORS
TRANSISTOR Q463 BC847B
TRANSISTOR Q521 2SK1006RF122
TRANSISTOR Q522 2SC3311ATA
TRANSISTOR Q523 2SC3311ATA
TRANSISTOR Q524 2SC5460LB
TRANSISTOR Q525 2SC3311ATA
TRANSFORMERS
TRANSFORMER T701 ETF18L101A
COILS
COIL L574 ELHKLB040B
COIL L576 ELC18B801L
COIL L579 ELHKLB061B
COIL L702 ELC18B121E
RESISTORS
S.M.CARBJSA81 ERJ6GEY0R00 0.1W 5% 0
S.M.CARBR353 ERJ6ENF1501 0.1W 1% 1R5K
S.M.CARBR363 ERJ6ENF1501 0.1W 1% 1R5K
S.M.CARBR372 ERJ6ENF1501 0.1W 1% 1R5K
S.M.CARBR386 ERJ6GEYJ101 0.1W 5% 100
CARBONR451 ERDS1TJ2R7 0.5W 5% 2R7
CARBONR452 ERDS1TJ2R7 0.5W 5% 2R7
S.M.CARBR473 ERJ6GEYJ222 0.1W 5% 2K2
S.M.CARBR474 ERJ6GEYJ103 0.1W 5% 10K
METALR509 ERX3FJ1R0 3W 5% 1
CARBONR520 ERD25TJ153 0.25W 5% 15K
METALR521 ERG2FJS123 2W 5% 12K
CARBONR522 ERD25TJ101 0.25W 5% 100
CARBONR523 ERD25TJ103 0.25W 5% 10K
CARBONR524 ERD25TJ103 0.25W 5% 10K
CARBONR525 ERD25TJ102 0.25W 5% 1K
SOLIDR526 ERC14GK184 0.25W 5% 180K
SOLIDR527 ERC14GK224 1/4W 5% 220K
CARBONR530 ERD25TJ101 0.25W 5% 100
SOLIDR531 ERC14GK334 0.25W 10% 330K
CARBONR532 ERD25TJ473 0.25W 5% 47K
METALR533 ERG3FJS821 3W 5% 820
CARBONR534 ERDS2TJ333T 2W 5% 33K
METALR535 ERG1FJS332 1W 5% 3R3K
METALR536 ERG3FJS821 3W 5% 820
SOLIDR538 ERC14GK225 1/4W 5% 2.2M
CARBON R540 ERD25TJ560 0.25W 5% 56
CARBONR555 ERD25TJ473 0.25W 5% 47K
WOUNDR556 ERF2AKR22 0.5W 5% R22
CARBONR558 ERDS1TJ333 0.5W 5% 33K
35
