Panasonic TX-32PS11F - Page 10

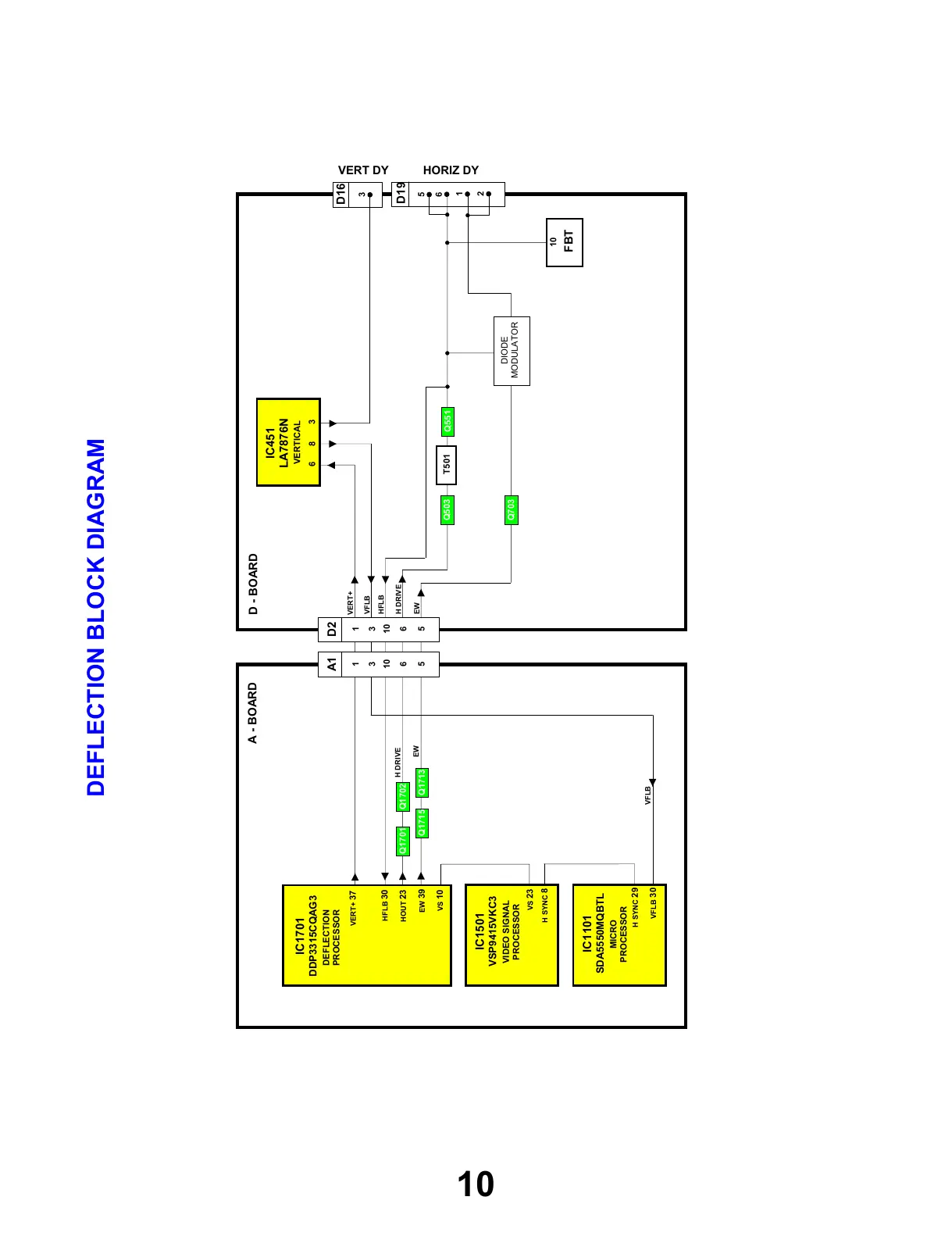

DEFLECTION BLOCK DIAGRAM
10
IC451
LA7876N
VERTICAL
8
3
6
IC1701
DDP3315CQAG3
DEFLECTION
PROCESSOR
VERT+ 37
VFLB
HFLB 30
HOUT 23
EW 39
Q1715
EW
IC1501
VSP9415VKC3
V
IDEO SIGNAL
PROCESSOR
IC1101
SDA5550MQBTL
MICRO
PROCESSOR
VS 10
VS 23
H SYNC 8
H SYNC 29
1
A1
3
10
6 5
D2
1
10
6 5 3
Q1701 Q1702
H DRIVE
VERT+
VFLB
HFLB
H DRIVE
EW
Q503
T501
Q551
Q703
FBT
10
DIODE
MODULATOR
3
D16
VERT DY
6
D19
1
HORIZ DY
A - BOARD
D - BOARD
5
2
VFLB 30
Q1713
