Panasonic TX-32PS11F - Service Hints

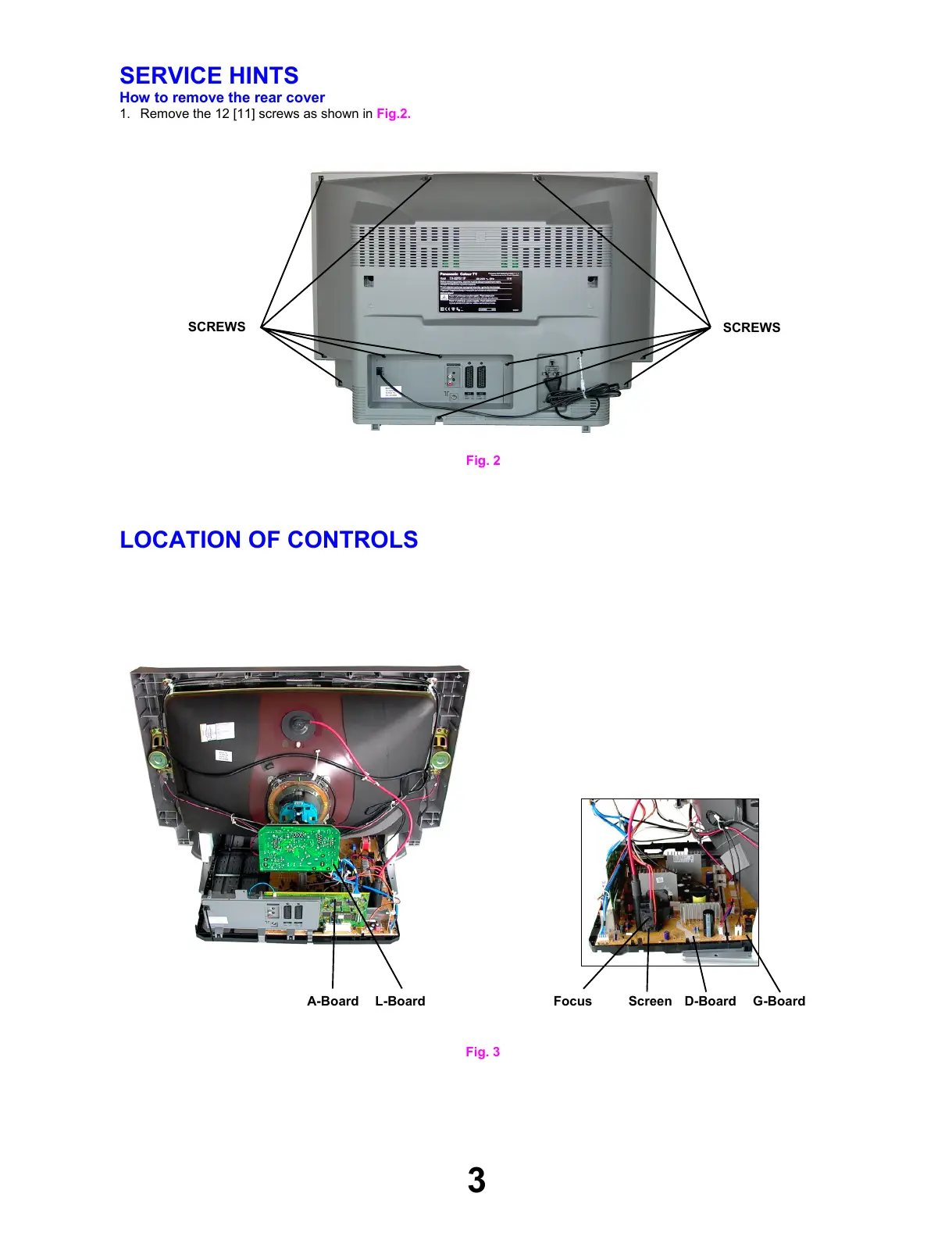

SERVICE HINTS
How to remove the rear cover
1. Remove the 12 [11] screws as shown in Fig.2.
LOCATION OF CONTROLS
3
Fig. 2
Fig. 3
SCREWS
SCREWS
L-Board
A-Board Focus
G-Board
Screen
D-Board
