6.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.

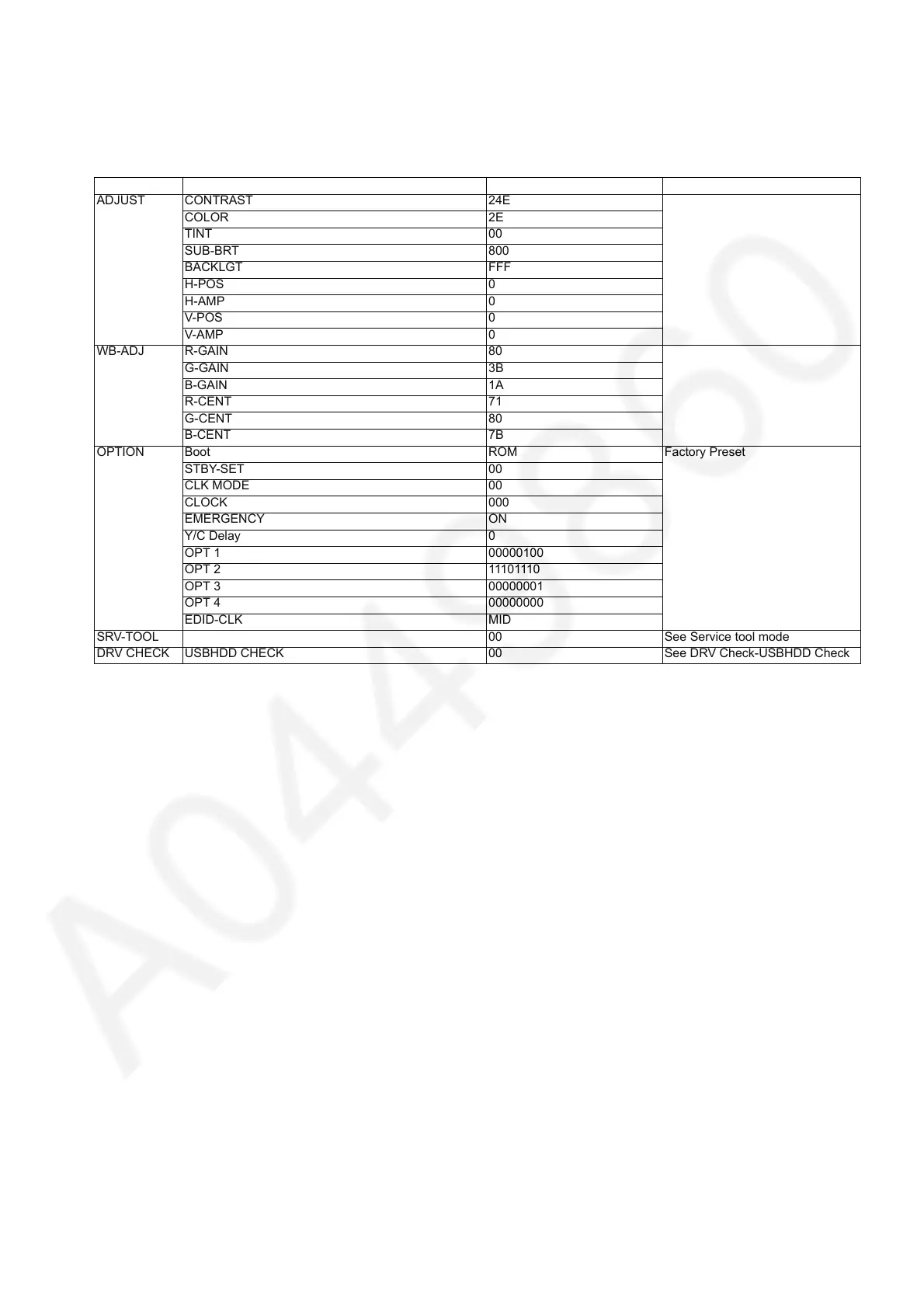

Main item Sub item Sample Data Remark
ADJUST CONTRAST 24E
COLOR 2E
TINT 00
SUB-BRT 800
BACKLGT FFF
H-POS 0
H-AMP 0
V-POS 0
V-AMP 0
WB-ADJ R-GAIN 80
G-GAIN 3B
B-GAIN 1A
R-CENT 71
G-CENT 80
B-CENT 7B
OPTION Boot ROM Factory Preset
STBY-SET 00
CLK MODE 00
CLOCK 000
EMERGENCY ON
Y/C Delay 0
OPT 1 00000100
OPT 2 11101110
OPT 3 00000001
OPT 4 00000000
EDID-CLK MID
SRV-TOOL 00 See Service tool mode
DRV CHECK USBHDD CHECK 00 See DRV Check-USBHDD Check
