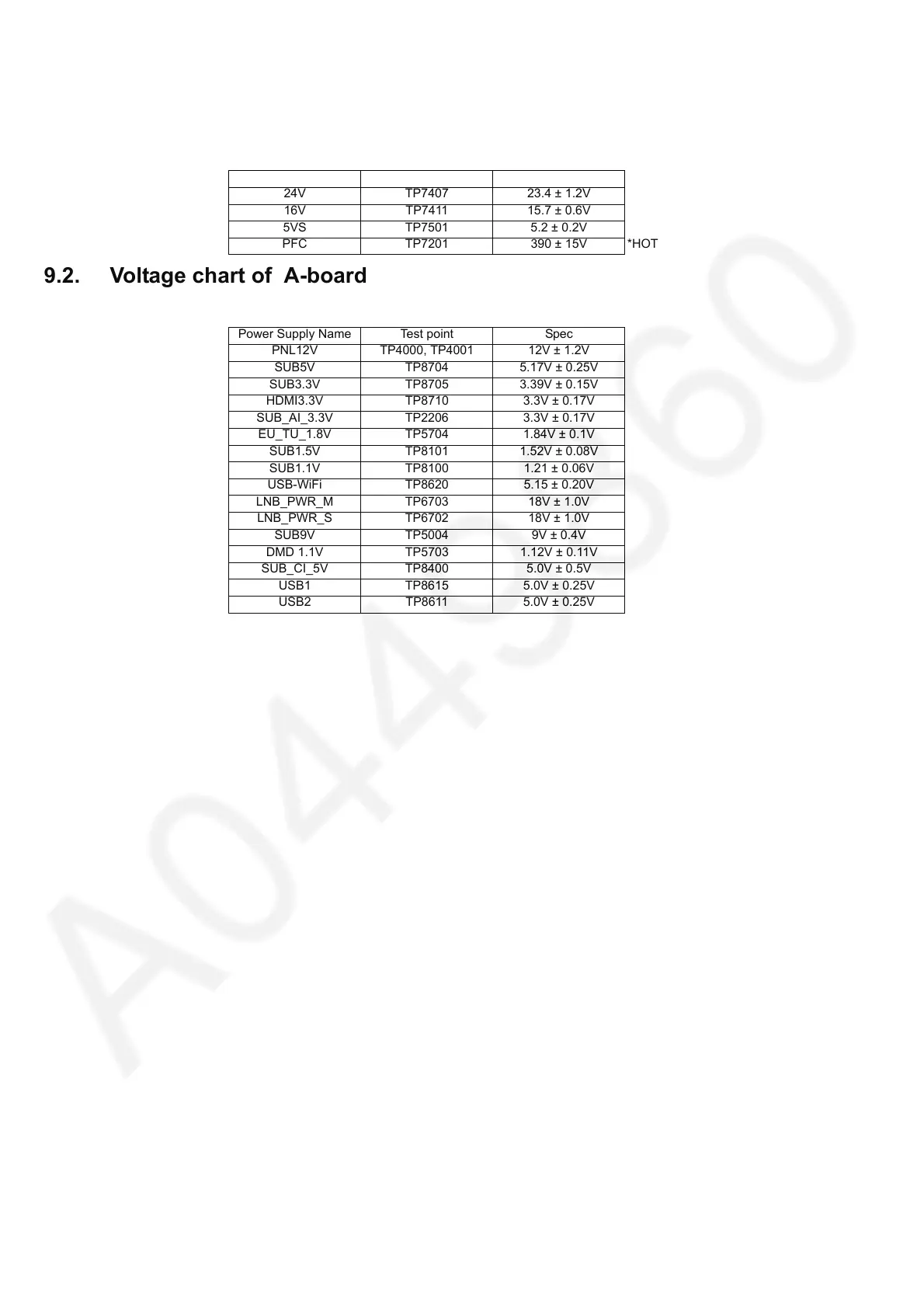

9 Measurements and Adjustments
9.1. Voltage chart of P-board
9.2. Voltage chart of A-board
Power Supply Name Test point Spec
24V TP7407 23.4 ± 1.2V
16V TP7411 15.7 ± 0.6V
5VS TP7501 5.2 ± 0.2V
PFC TP7201 390 ± 15V *HOT
Power Supply Name Test point Spec
PNL12V TP4000, TP4001 12V ± 1.2V
SUB5V TP8704 5.17V ± 0.25V
SUB3.3V TP8705 3.39V ± 0.15V
HDMI3.3V TP8710 3.3V ± 0.17V
SUB_AI_3.3V TP2206 3.3V ± 0.17V
EU_TU_1.8V TP5704 1.84V ± 0.1V
SUB1.5V TP8101 1.52V ± 0.08V
SUB1.1V TP8100 1.21 ± 0.06V
USB-WiFi TP8620 5.15 ± 0.20V
LNB_PWR_M TP6703 18V ± 1.0V
LNB_PWR_S TP6702 18V ± 1.0V
SUB9V TP5004 9V ± 0.4V
DMD 1.1V TP5703 1.12V ± 0.11V
SUB_CI_5V TP8400 5.0V ± 0.5V
USB1 TP8615 5.0V ± 0.25V
USB2 TP8611 5.0V ± 0.25V
