English
13
Connections
●
External equipment and cables shown are not
supplied with this TV.
●
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
●
Check the terminal type and cable plugs are correct
for connection.
●
Use a fully wired HDMI compliant cable.
●
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
●
Please also read the manual of the equipment being
connected.

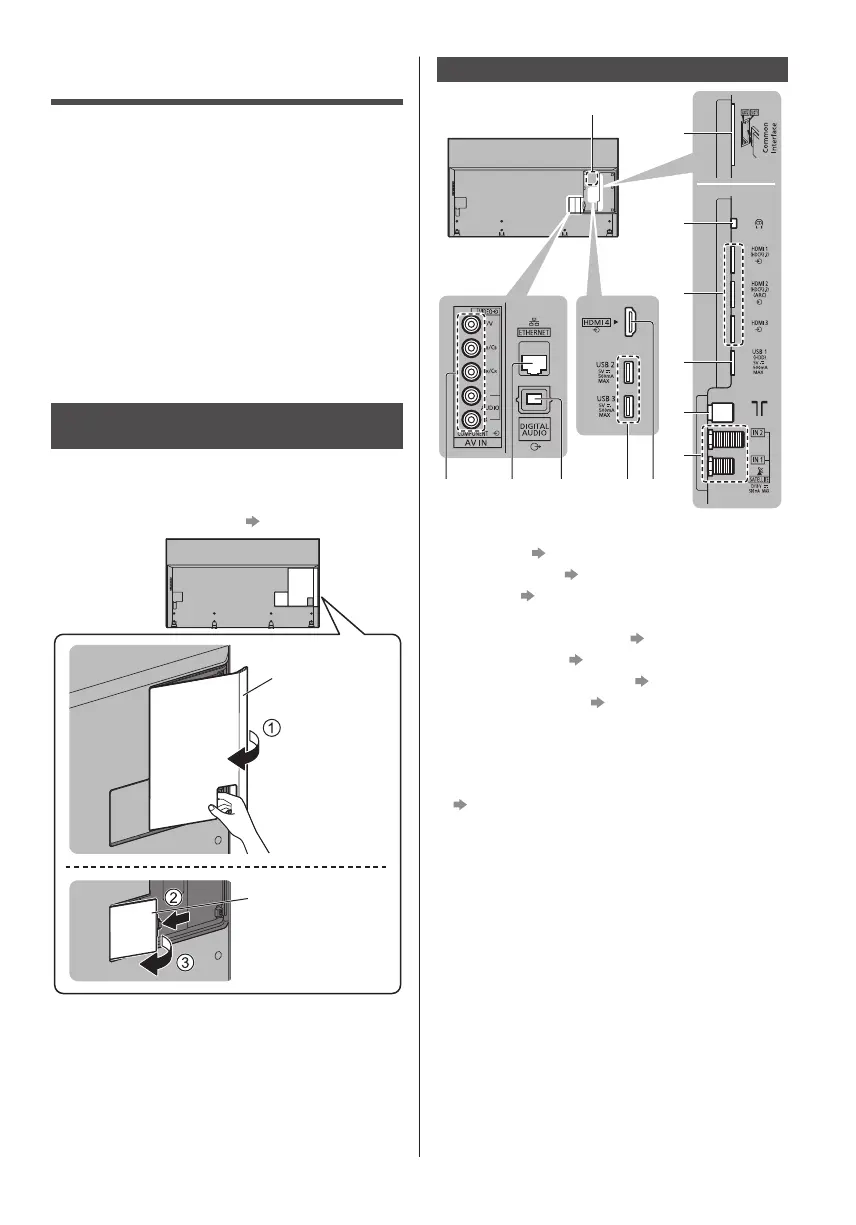

Removing the cable cover / terminal
cover from the TV
●
Be sure to remove the cable cover / terminal cover
before connecting or disconnecting cables.
●
When the connections are completed, attach the
cable cover / terminal cover.
(p. 18)
Cable cover
Terminal cover
Terminals
2
1
3
4
5
6
7
8 9 10 11 12
1 Model name plate
2 CI slot 1 - 2
(p. 17)
3 Headphone jack
(p. 17)
4 HDMI1 - 3
(p. 15, 16, 17)
5 USB 1 port
6 Terrestrial / cable terminal
(p. 14)
7 Satellite terminal
(p. 14)
8 AV (COMPONENT / VIDEO)
(p. 16)
9 ETHERNET terminal
(p. 16)
10
DIGITAL AUDIO
11
USB 2 - 3 port
12
HDMI4
●
To watch content in 4K format, use HDMI terminal.
(p. 16)
