Connecting Equipment to the TV

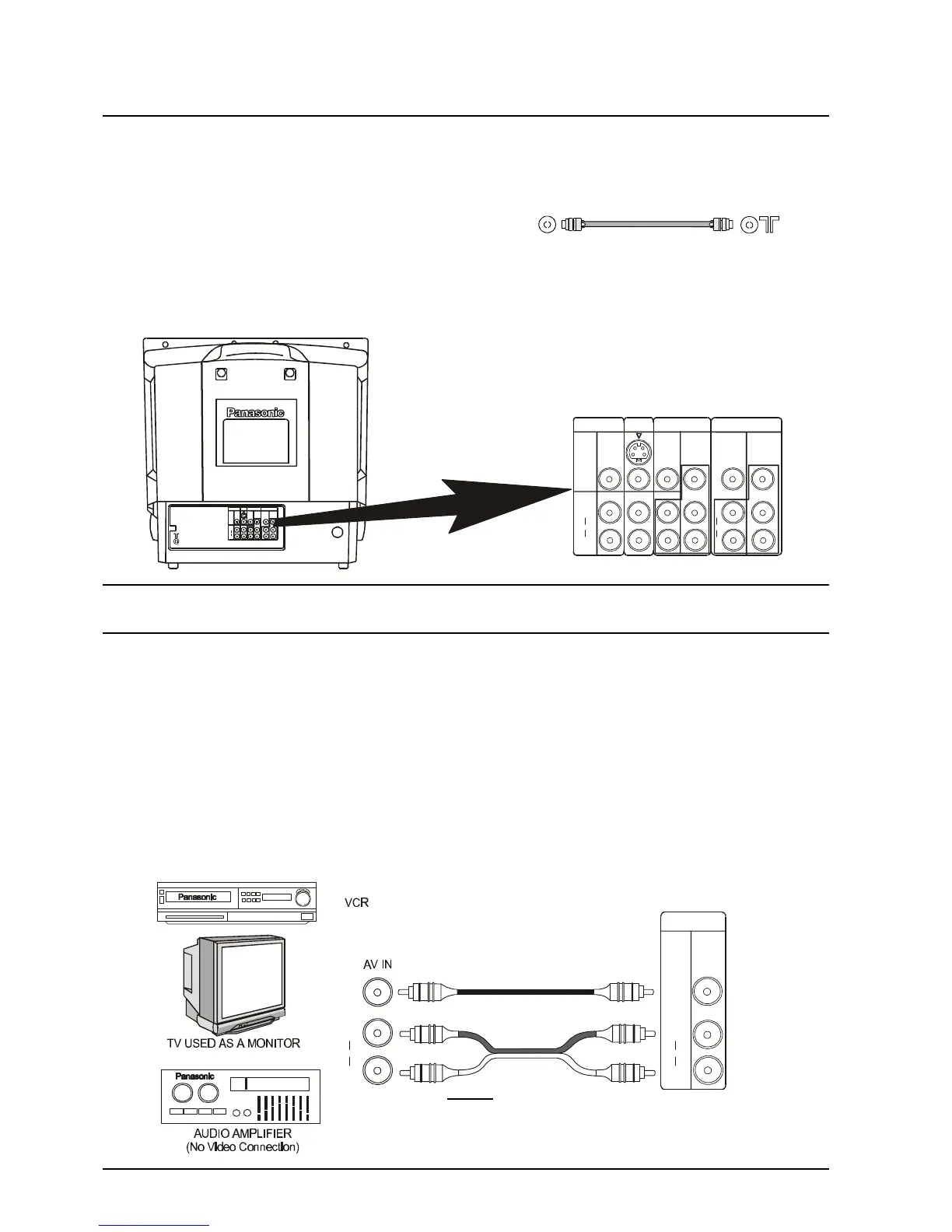

Rear Panel Connections
When using a VCR with the television always connect the Aerial to the VCR and connect an RF Cable (not
supplied) between the VCR RF-Out and the television RF-In.
You can watch videos by either tuning the television to the
VCR (see page 27) or by connecting the VCR to the rear RF Cable
AV terminals.
Note: When connecting a mono VCR through the RF-In, please switch the TV to mono.
Monitor Out
The Monitor Out terminals reproduce the signals currently on the television screen. The on-screen signals
could be a television programme or signals connected to one of the AV inputs.
The Monitor Out facility can be used to allow one video source (videotape, video disc etc.) to be connected
to more than one television. Connect the Monitor out from this television to the AV Input of the second
television.
If a video recorder is connected to the Monitor Out and video sources (VCR, video disc, camera etc.) are
connected to one or more of the AV inputs, the television becomes a visual display for tape editing or
copying. Unauthorised recording of material from Television Broadcasts or from other video
and/or audio sources may contravene copyright laws.
The Monitor Out Audio can also be connected to a stereo amplifier or other hi-fi equipment.
NOTE:
Never connect the same video recorder or other device
to both the VIDEO IN and MONITOR OUT terminals of
this television as this could cause incorrect operation.
MONITOR
OUT
VIDEO
AUDIO
L
R
VIDEO
AUDIO
L
R
MONITOR
OUT
AV1
IN
S-VIDEO
VIDEO
AV2
IN
AV4
IN
AUDIO
L
R
AUDIO
L
R
MONOMONOMONO
VIDEO
YY
P
B
P
B
P
R
P
R
DVD
Y-P-P
B R
DVD
Y-P-P
B R
MONITOR
OUT
AV1
IN
S-VIDEO
VIDEO
AV2
IN
AV4
IN
AUDIO
L
R
AUDIO
L
R
MONOMONO
MONO
VIDEO
Y
Y
P
B
P
B
P
R
P
R
DVD
Y-P-P
B R
DVD
Y-P-P
B R
