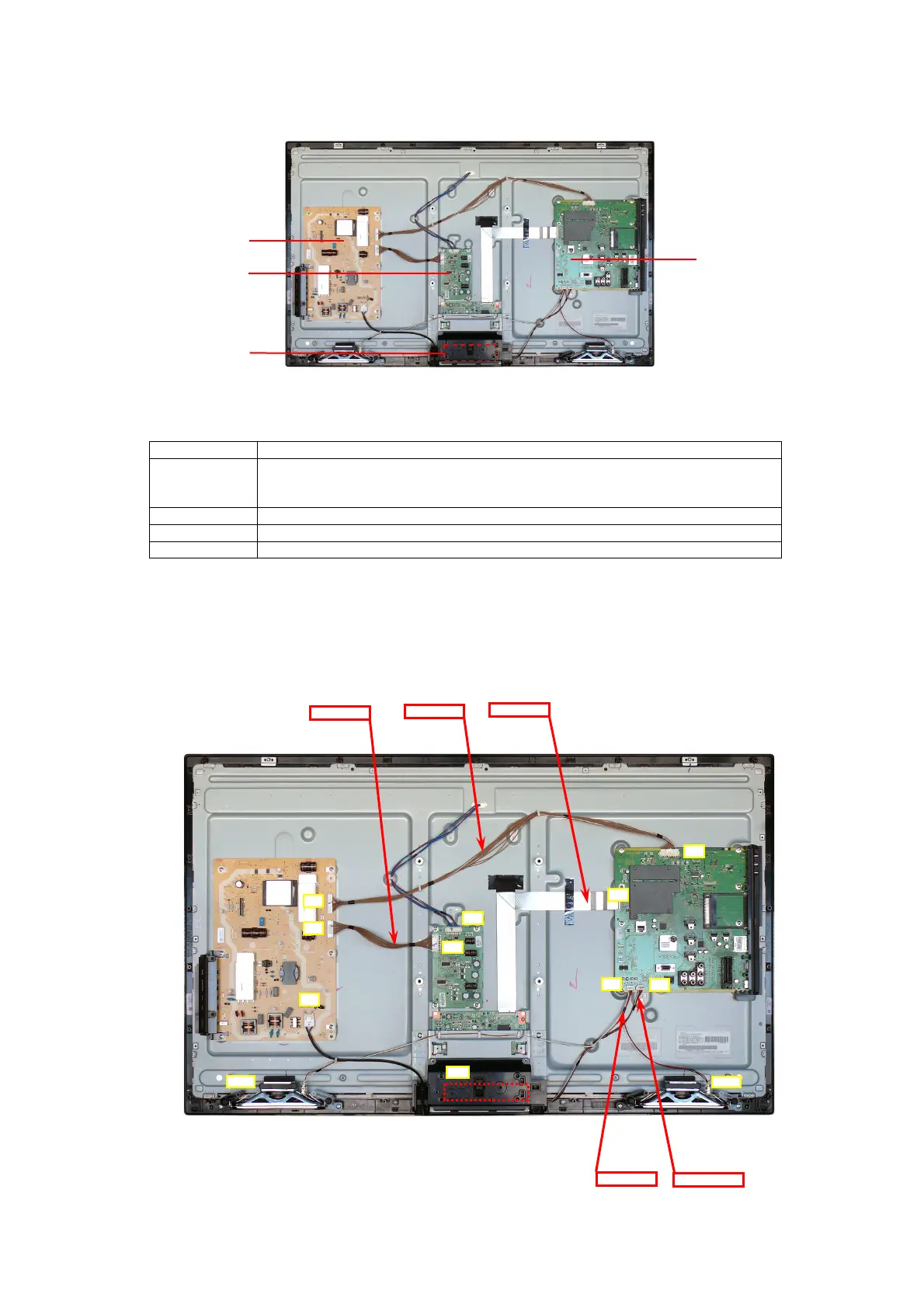

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
A-Board AV Terminal, HDMI, USB, Digital Audio Out, TV tuner, SD Card, CI slot, PC,
Ethernet, Peaks_LDA3, AV Switch, HDMI Switch, Speaker out,
EEPROM, Flash Memory, DDR SDRAM
KA-Board Remote Receiver, Power and Timer LED, C.A.T.S
P-Board Main Input, Power Supply, Key control, Power switch
LD-Board LED driver
P-BOARD
KA-BOARD
A-BOARD
LD-BOARD
A02
SP_L
A10
A12
KA10
A15
SP_R
LD2
A10-KA10 WIRE
P4-LD4 WIRE
A12-SPK WIRE
LD4
P1
P2
P4
A02-P2 WIRE
LVDS FFC
