TX-LR32EM5A
14

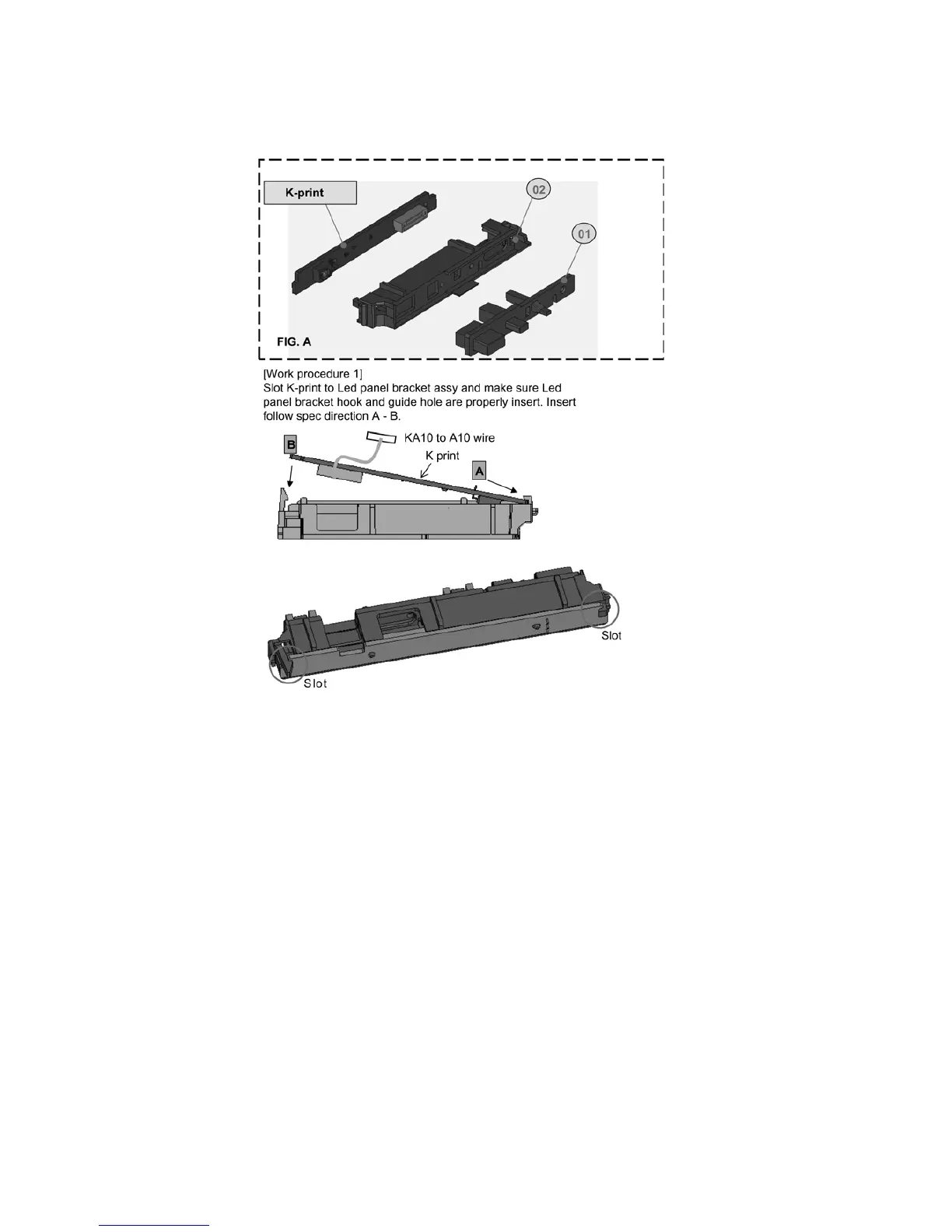

7.2. LED Panel Assy
1. Assy LED panel assy, LED panel bracket assy and V-board to Cabinet complete assy (Fig. A).
2. Fix LCD panel to Cabinet assy.
