TX-LR32EM5A
17

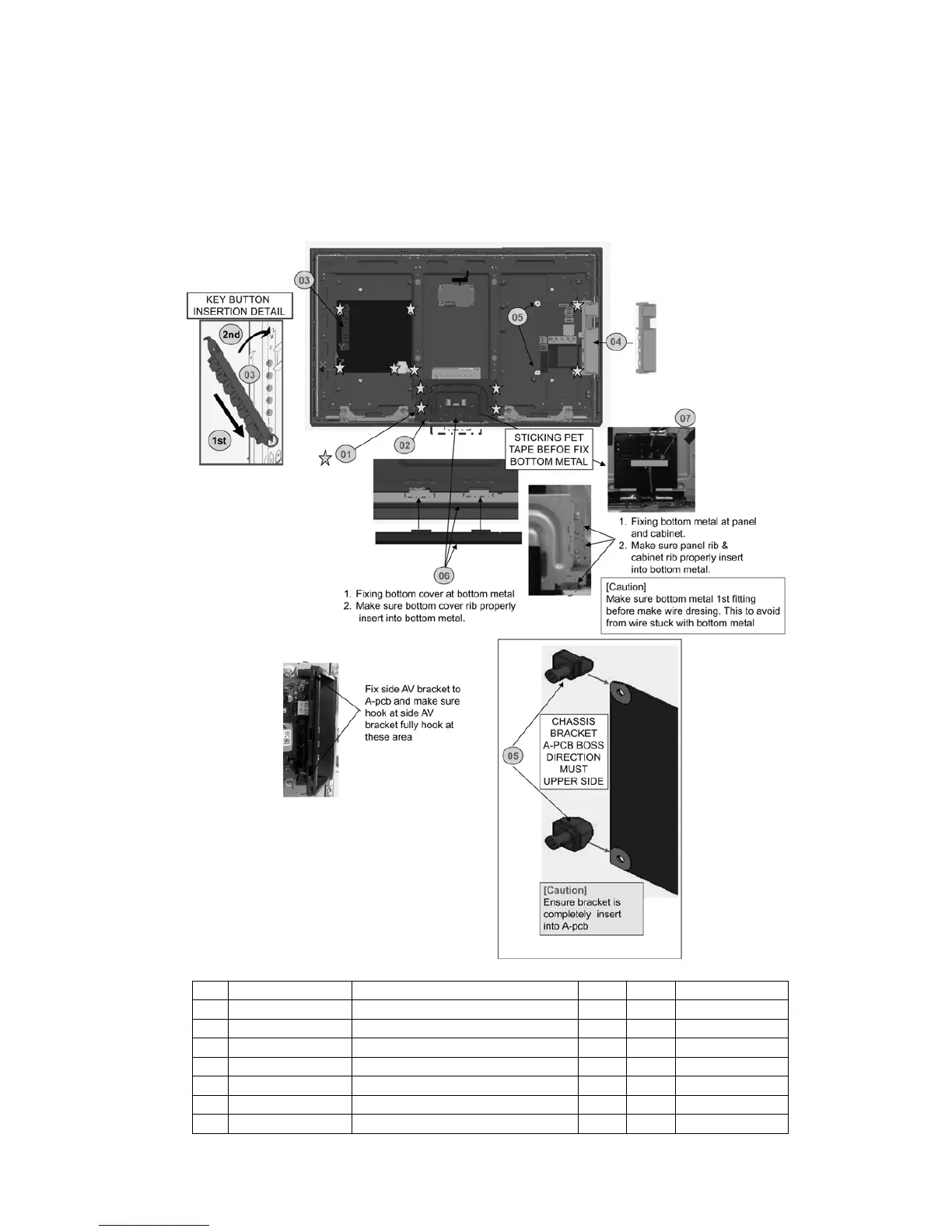

7.4. Fixing P Board and A Board
1. Fixing P-print to LCD panel.
2. Fix Spacer (P-pcb-4 pcs) & Key Btnto P-print.
3. Fixing chassis bracket A-pcb (2 pc) to A-print and fix to LCD panel.
4. Fixing Side AV Bracket to A-print.
5. Fix PET tape at K10~A10 wire (1 pc).
6. Fix metal bracket bottom.
7. Fix bottom cover.
8. Fix above part with screw.
No Item Description Qty UOM Remarks
01 THEJ036J SCREW 11 PC 60 ± 10 N·cm
02 TKZ5ZX50311 BOTTOM METAL 1 PC
03 TBX5ZA01701 CONTROL BUTTON 1 PC
04 TKP5ZA24703 SIDE AV BRACKET 1 PC
05 TMX5ZE0021 CHASSIS BRACKET A-PCB 2 PC
06 TKP5ZA24101 BOTTOM COVER 1 PC
06 T4FP1505J PET TAPE (GREY L=70 mm) 1 PC
To Next Page
