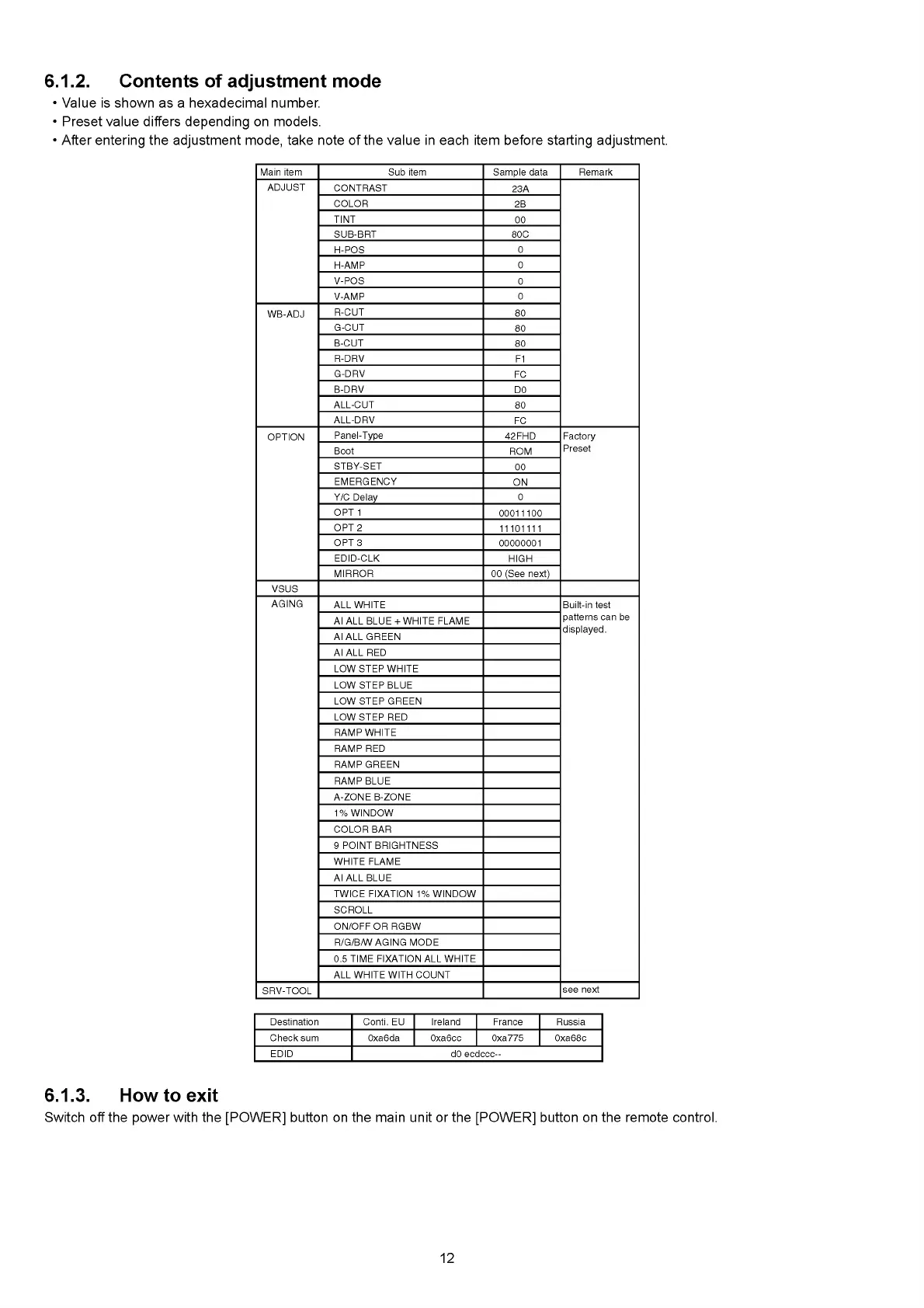

6.1.2. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample data Remark
ADJUST
CONTRAST
23A
COLOR
2B
TINT
00
SUB-BRT 80C
H-POS
0
H-AMP
0
V-POS
0
V-AMP
0
WB-ADJ
R-CUT
80
G-CUT
80
B-CUT
80
R-DRV
F1
G-DRV
FC
B-DRV
DO
ALL-CUT
80
ALL-DRV
FC
OPTION
Panel-Type
42FHD Factory
Boot
ROM
Preset
STBY-SET
00
EMERGENCY
ON
Y/C Delay
0
OPT 1
00011100
OPT 2
11101111
OPT 3
00000001
EDID-CLK
HIGH
MIRROR 00 (See next)
VSUS
AGING
ALL WHITE Built-in test
Al ALL BLUE + W HITE FLAME
patterns can be
displayed.
Al ALL GREEN
Al ALL RED
LOW STEP WHITE
LOW STEP BLUE
LOW STEP GREEN
LOW STEP RED
RAMP WHITE
RAMP RED
RAMP GREEN
RAMP BLUE
A-ZONE B-ZONE
1% W INDOW
COLOR BAR
9 POINT BRIGHTNESS
WHITE FLAME
Al ALL BLUE
TWICE FIXATION 1% WINDOW
SCROLL
ON/OFF OR RGBW
R/G/B/W AGING MODE
0.5 TIME FIXATION ALL WHITE
ALL WHITE WITH COUNT
SRV-TOOL
see next
Destination Conti. EU Ireland France Russia
Check sum 0xa6da Охабсс 0xa775 0xa68c
EDID dO ecdccc-
6.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
