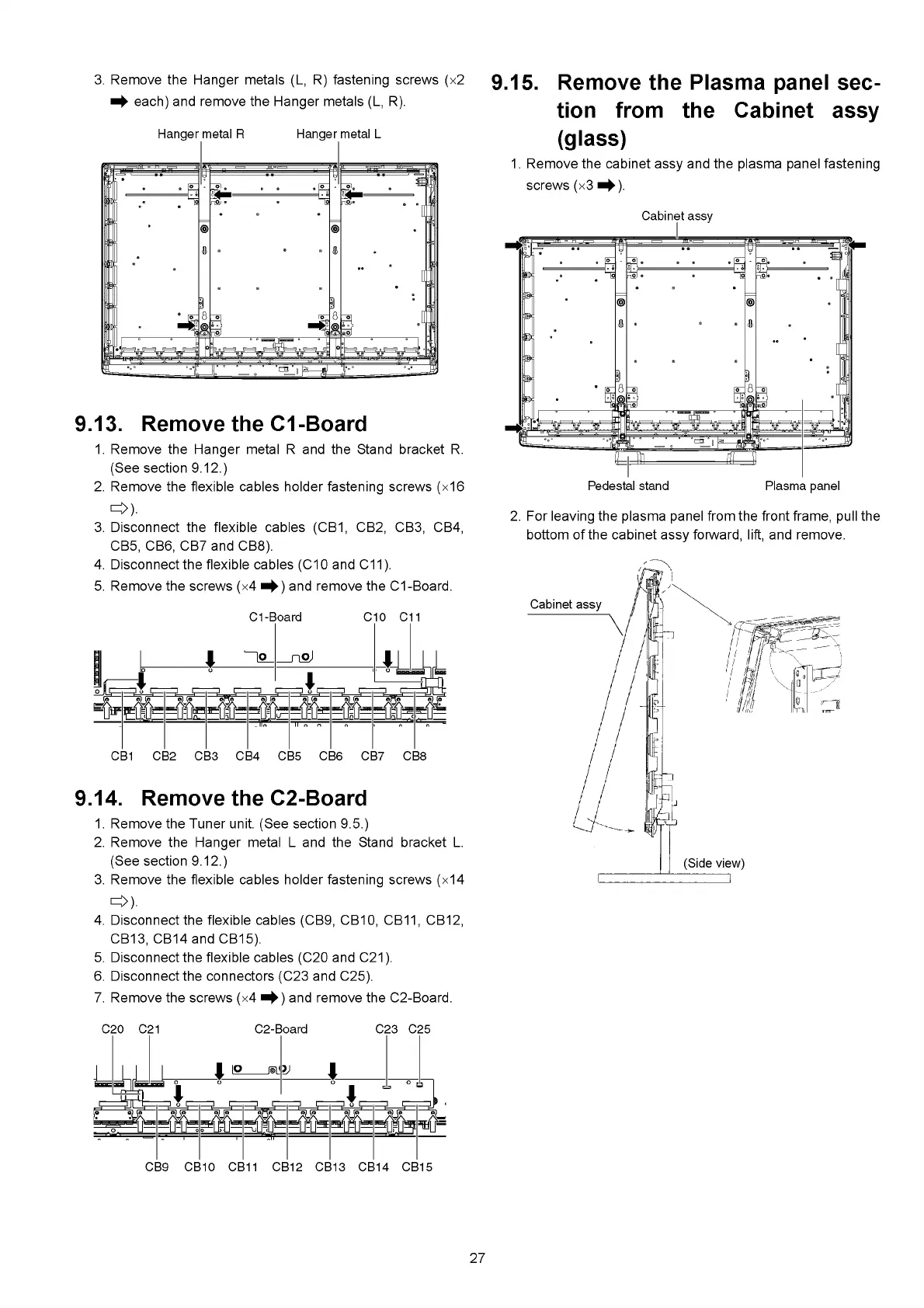

3. Remove the Hanger metals (L, R) fastening screws (x2
^ each) and remove the Hanger metals (L, R).
9.13. Remove the C1-Board
1. Remove the Hanger metal R and the Stand bracket R.
(See section 9.12.)
2. Remove the flexible cables holder fastening screws (x 16
<=»■
3. Disconnect the flexible cables (CB1, CB2, CB3, CB4,
CB5, CB6, CB7 and CB8).
4. Disconnect the flexible cables (C10 and C11).
5. Remove the screws (x4 ^ ) and remove the C1 -Board.
9.14. Remove the C2-Board
1. Remove the Tuner unit. (See section 9.5.)
2. Remove the Hanger metal L and the Stand bracket L.
(See section 9.12.)
3. Remove the flexible cables holder fastening screws (x 14
<=»■
4. Disconnect the flexible cables (CB9, CB10, CB11, CB12,
CB13, CB14 and CB15).
5. Disconnect the flexible cables (C20 and C21).
6. Disconnect the connectors (C23 and C25).
7. Remove the screws (x4 ^ ) and remove the C2-Board.
9.15. Remove the Plasma panel sec
tion from the Cabinet assy
(glass)
1. Remove the cabinet assy and the plasma panel fastening
screws (x3 ^ ) .
2. For leaving the plasma panel from the front frame, pull the
bottom of the cabinet assy forward, lift, and remove.
