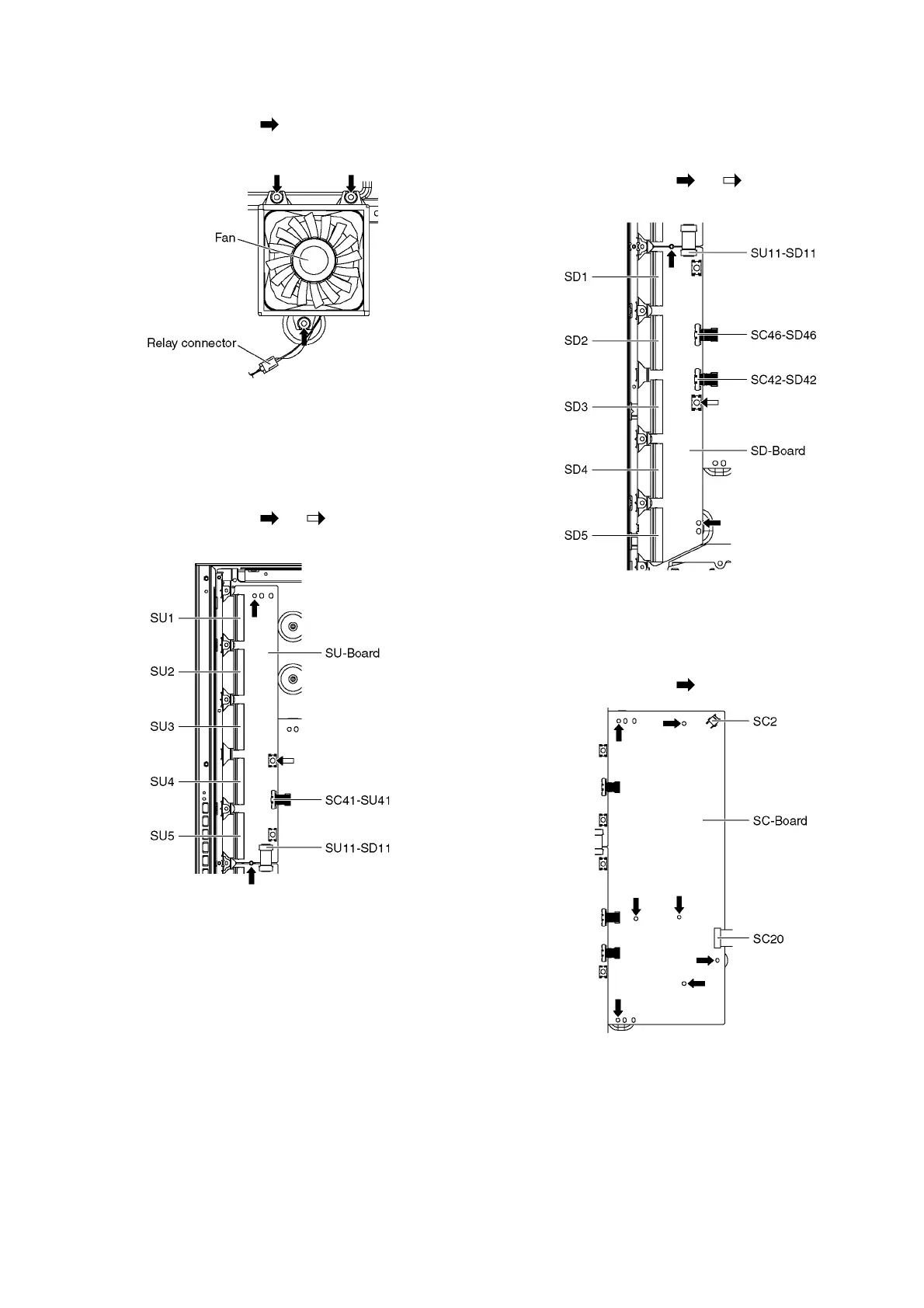

9.2.14. Remove the Fan
1. Unlock the hooks and the tapes to free the cables.
2. Remove the screws (×3 each).
3. Disconnect the Relay connector and remove the Fans.
9.2.15. Remove the SU-Board
1. Disconnect the flexible cables (SU1, SU2, SU3, SU4 and
SU5) connected to the SU-Board.
2. Disconnect the flexible cable (SU11-SD11) and the bridge
connector (SC41-SU41).
3. Remove the screws (×2 , ×1 ) and remove the SU-
Board.
9.2.16. Remove the SD-Board
1. Disconnect the flexible cables (SD1, SD2, SD3, SD4 and
SD5) connected to the SD-Board.
2. Disconnect the flexible cable (SU11-SD11) and the bridge
connectors (SC42-SD42 and SC46-SD46).
3. Remove the screws (×2 , ×1 ) and remove the SD-
Board.
9.2.17. Remove the SC-Board
1. Unlock the tapes to free the cables.
2. Disconnect the connector (SC2).
3. Disconnect the flexible cable (SC20).
4. Remove the screws (×7 ) and remove the SC-Board.
