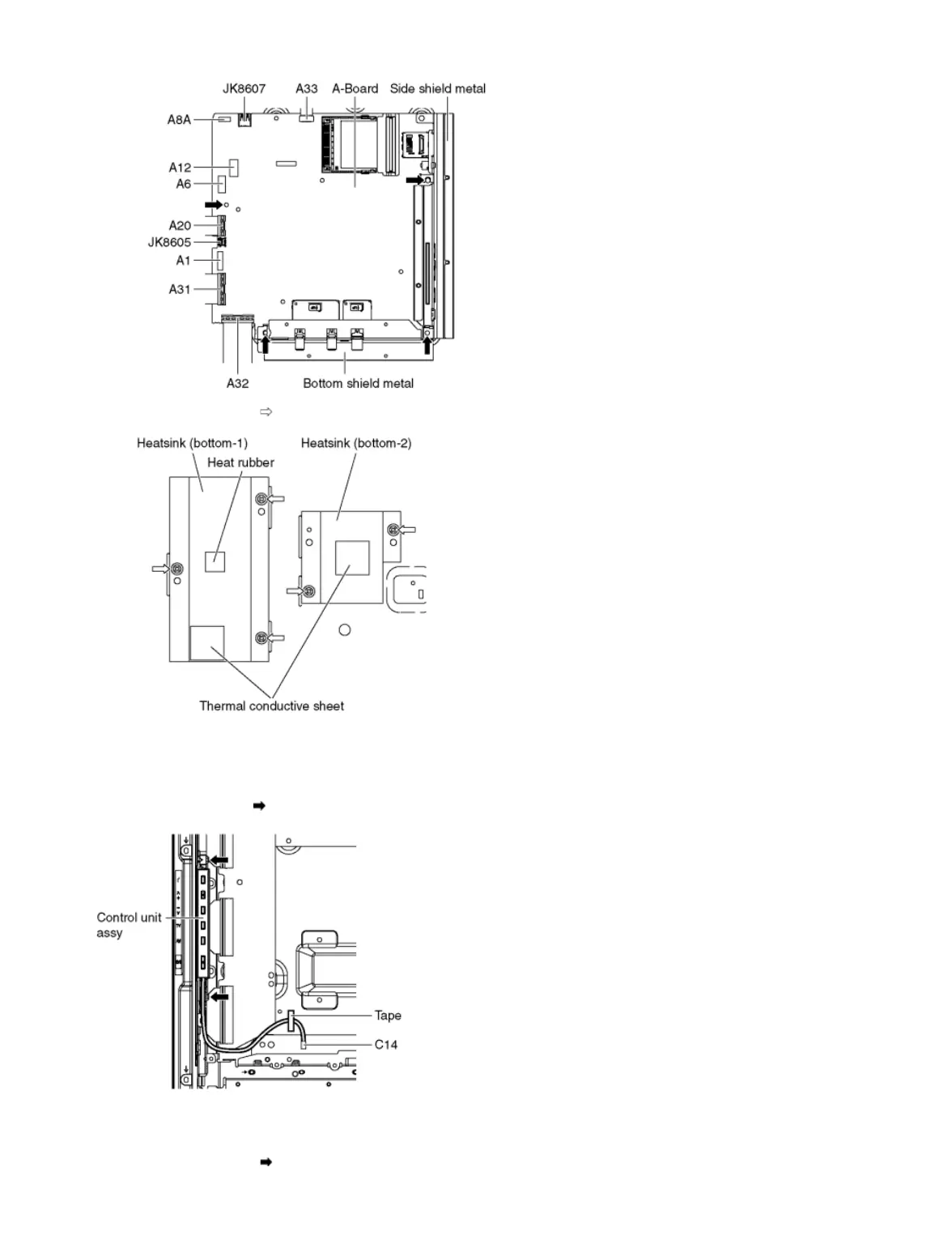

8. Remove the screws (×5 ).
9. Remove the Heatsinks (bottom-1, -2), the Thermal conductive sheets and the Heat rubber.
9.2.12 Remove the Control unit assy
1. Unlock the tape to free the cables.
2. Disconnect the connector (C14).
3. Remove the claws (×2 ) and remove the Control unit assy.
9.2.13 Remove the Speaker SQs
1. Unlock the hooks and the tapes to free the cables.
2. Remove the screws (×6 each) and remove the Speaker covers (L, R).
