Panasonic TX-P65VT60E - Service Navigation; PCB Component Layout and Board Functions

3 Service Navigation

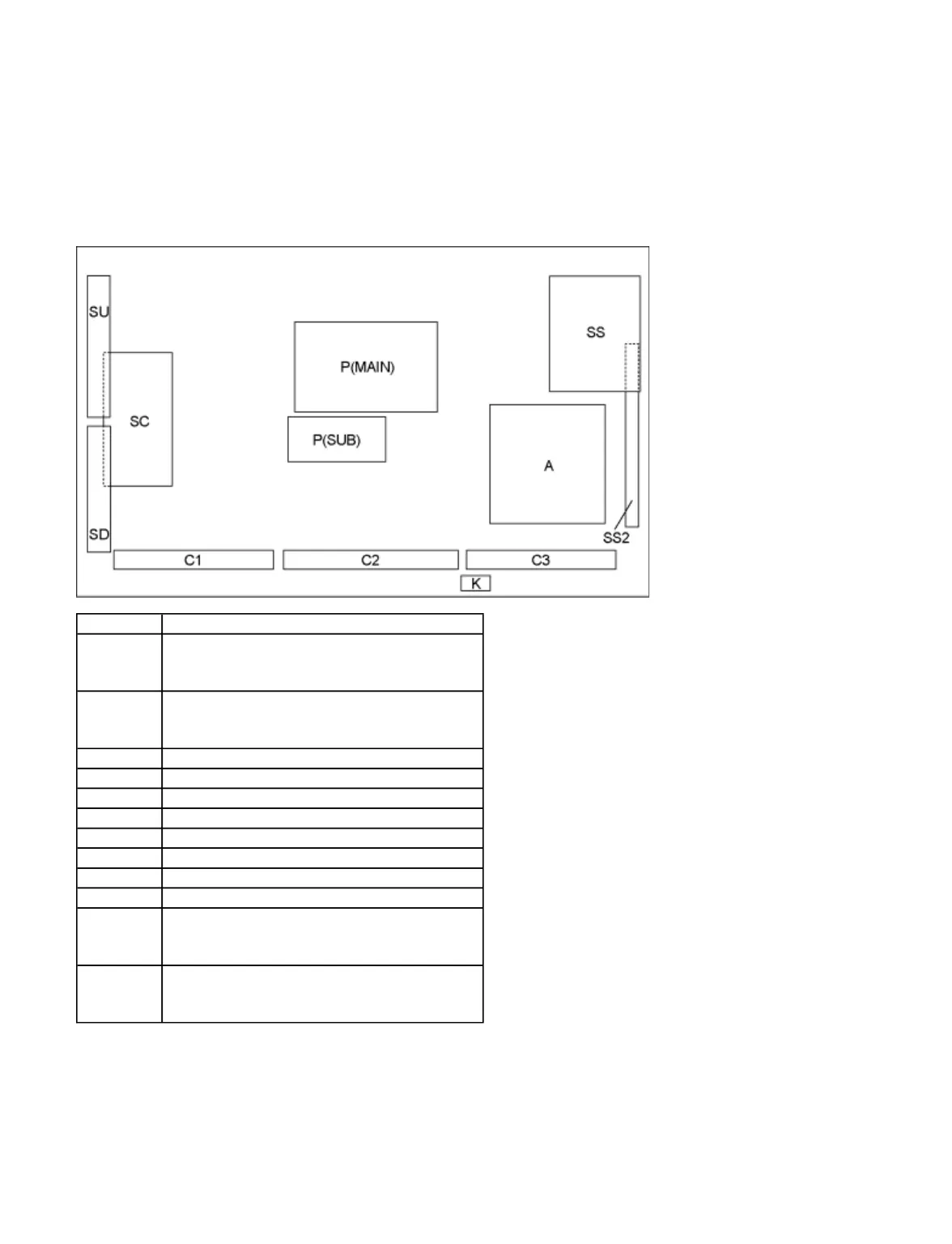

3.1 PCB Layout
Board Name
Function
P(MAIN)
Power Supply
Non serviceable.
P(MAIN)-Board should be exchanged for service.
P(SUB)
Power Supply
Non serviceable.
P(SUB)-Board should be exchanged for service.
A
Main AV input, processing
K
Remote receiver, Power LED, C.A.T.S sensor
C1
Data Driver (Lower Right)
C2
Data Driver (Lower Center)
C3
Data Driver (Lower Left)
SC
Scan Drive
SS
Sustain Drive
SS2
Sustain out (Lower)
SU
Scan out (Upper)
Non serviceable.
SU-Board should be exchanged for service.
SD
Scan out (Lower)
Non serviceable.
SD-Board should be exchanged for service.
