Assembling the Electronic Board
11
English
14

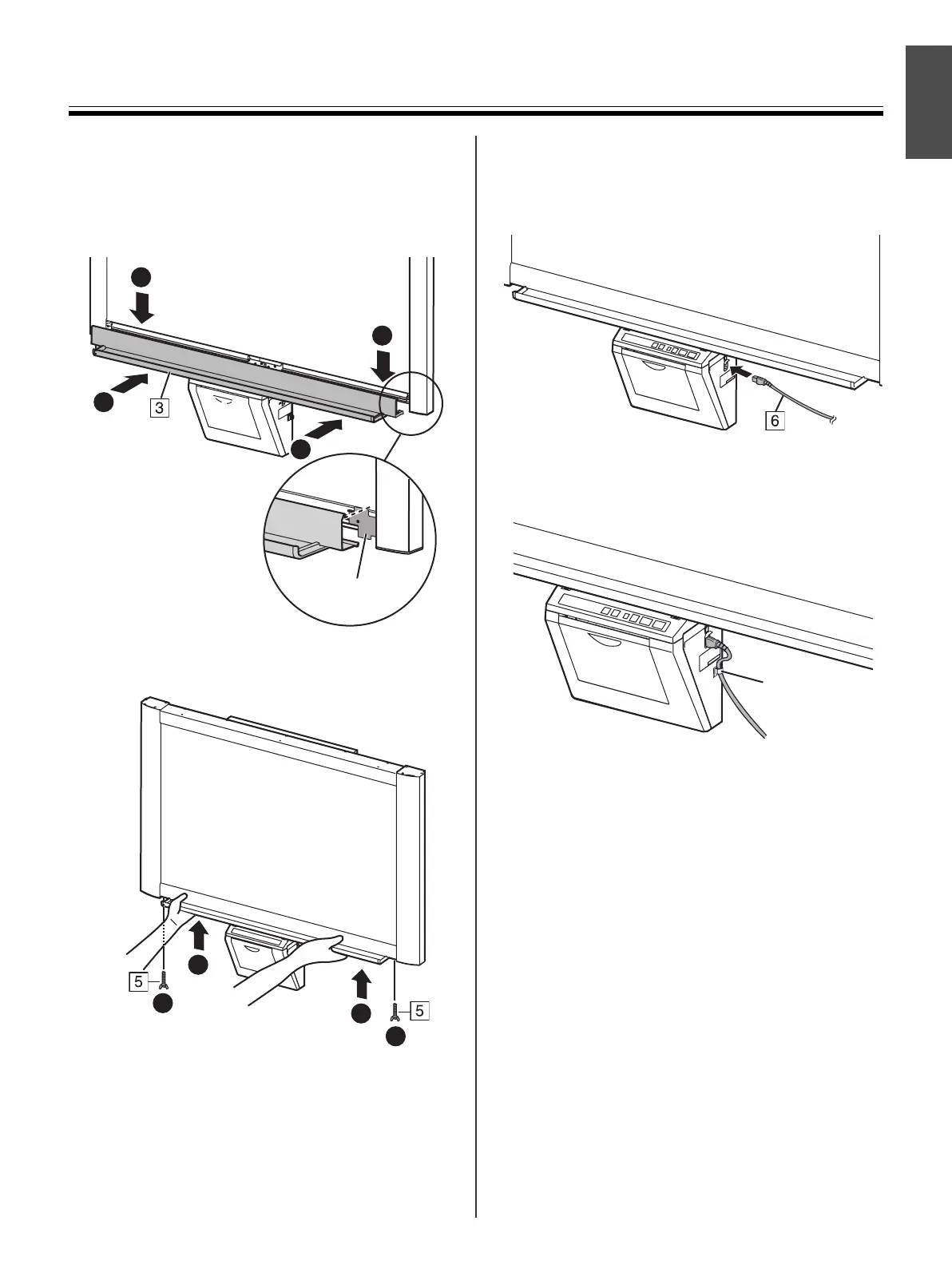

Attach the lower frame cover.
1) Align the lower frame cover with the metal
fittings on the left and right ends (➊), then
lower it in the direction of the arrows (➋).
2) Lift the lower frame cover up (➊) and fasten it
with the two supplied wing bolts (➋).
15
Connect the power cord.
1) Securely fit the supplied power cord into the
AC inlet on the printer unit.
2) Fit the power cord into the cable holder.
1
1
2
2
Metal fitting
2
2
1
1
Cable holder
