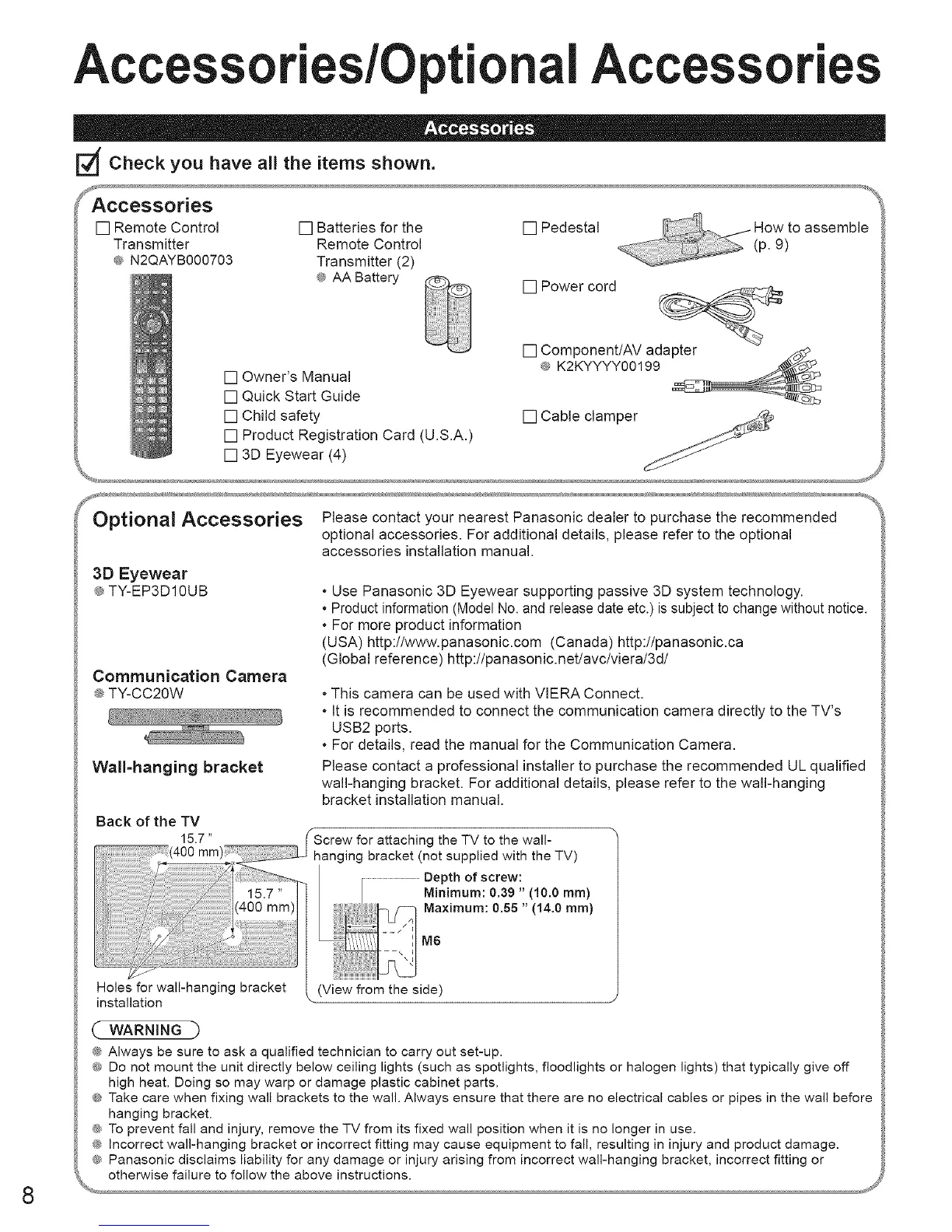

Accessories/Optional Accessories
Check you have all the items shown.
[] Remote Control [] Batteries for the [] Pedestal _How to assemble
Transmitter Remote Control (p. 9)
e N2QAYB000703 Transmitter (2)
® AA Battery
[] Owner's Manual
[] Quick Start Guide
[] Child safety
[] Product Registration Card (U.S.A.)
[] 3D Eyewear (4)
[] Power cord
[] Component/AV adapter
e K2KYYYY00199 _
[] Cable clamper
Optional Accessories
Please contact your nearest Panasonic dealer to purchase the recommended
optional accessories. For additional details, please refer to the optional
accessories installation manual.
3D Eyewear
e TY-EP3D10UB
Communication Camera
e TY-CC20W
Wall-hanging bracket
• Use Panasonic 3D Eyewear supporting passive 3D system technology.
• Product information (Model No. and release date etc.) is subject to change without notice.
• For more product information
(USA) http://www.panasonic.com (Canada) http://panasonic.ca
(Global reference) http://panasonic.net/avc/viera/3d/
• This camera can be used with VIERA Connect.
• it is recommended to connect the communication camera directly to the TV's
USB2 ports.
• For details, read the manual for the Communication Camera.
Please contact a professional installer to purchase the recommended UL qualified
wall-hanging bracket. For additional details, please refer to the wall-hanging
bracket installation manual.
Back ofthe TV
15.7" / Screw for attaching the TV to the wall-
(400ram) ot supped with the TV)
15 7 "
(400 mm)
t
Holes for wall-hanging bracket (View from the side)
installation _
( WARNING )
® Always be sure to ask a qualified technician to carry out set-up.
@ Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) that typically give off
high heat. Doing so may warp or damage plastic cabinet parts.
@ Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before
hanging bracket.
® To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.
® Incorrect wall-hanging bracket or incorrect fitting may cause equipment to fall, resulting in injury and product damage.
e Panasonic disclaims liability for any damage or injury arising from incorrect wall-hanging bracket, incorrect fitting or
8
