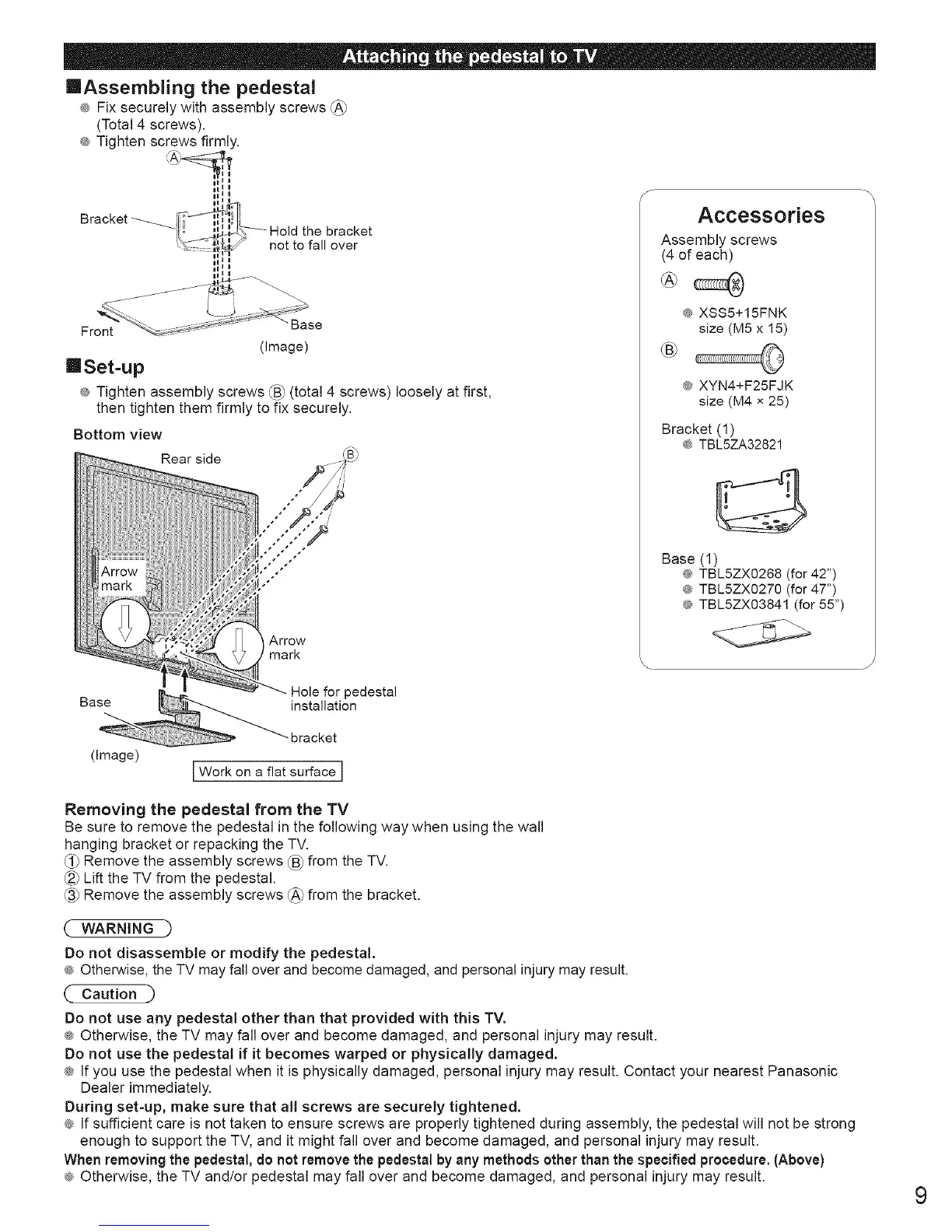

reAssembling the pedestal
® Fix securely with assembly screws _A_
(Total 4 screws).
® Tighten screws firmly.
bracket
not to fall over
Front Base
(Image)
reSet-up
® Tighten assembly screws (_ (total 4 screws) loosely at first,
then tighten them firmly to fix securely.
Bottom view
Rear side
Arrow
mark
- Hole for pedestal
Base installation
f
Accessories
Assembly screws
(4 of each)
_ XSS5+15FNK
size (M5 x 15)
(B>
® XYN4+F25FJK
size (M4 x 25)
Bracket (1)
_ TBL5ZA32821
Base (1)
@ TBL5ZXO268 (for 42")
_ TBL5ZXO270 (for 47")
_ TBL5ZXO3841 (for 55")
(image)
Work on a flat surface ]
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way when using the wall
hanging bracket or repacking the TV.
Remove the assembly screws (_ from the TV.
_2_Lift the TV from the pedestal.
_3_Remove the assembly screws (_ from the bracket.
( WARNING
Do not disassemble or modify the pedestal.
e Otherwise, the TV may fall over and become damaged, and personal injury may result.
( Caution )
Do not use any pedestal other than that provided with this TV.
_;_Otherwise, the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
_ if you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During set-up, make sure that all screws are securely tightened.
_ if sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong
enough to support the TV, and it might fall over and become damaged, and personal injury may result.
When removing the pedestal, do not remove the pedestal by any methods other than the specified procedure. (Above)
<¢_Otherwise, the TV and/or pedestal may fall over and become damaged, and personal injury may result.
