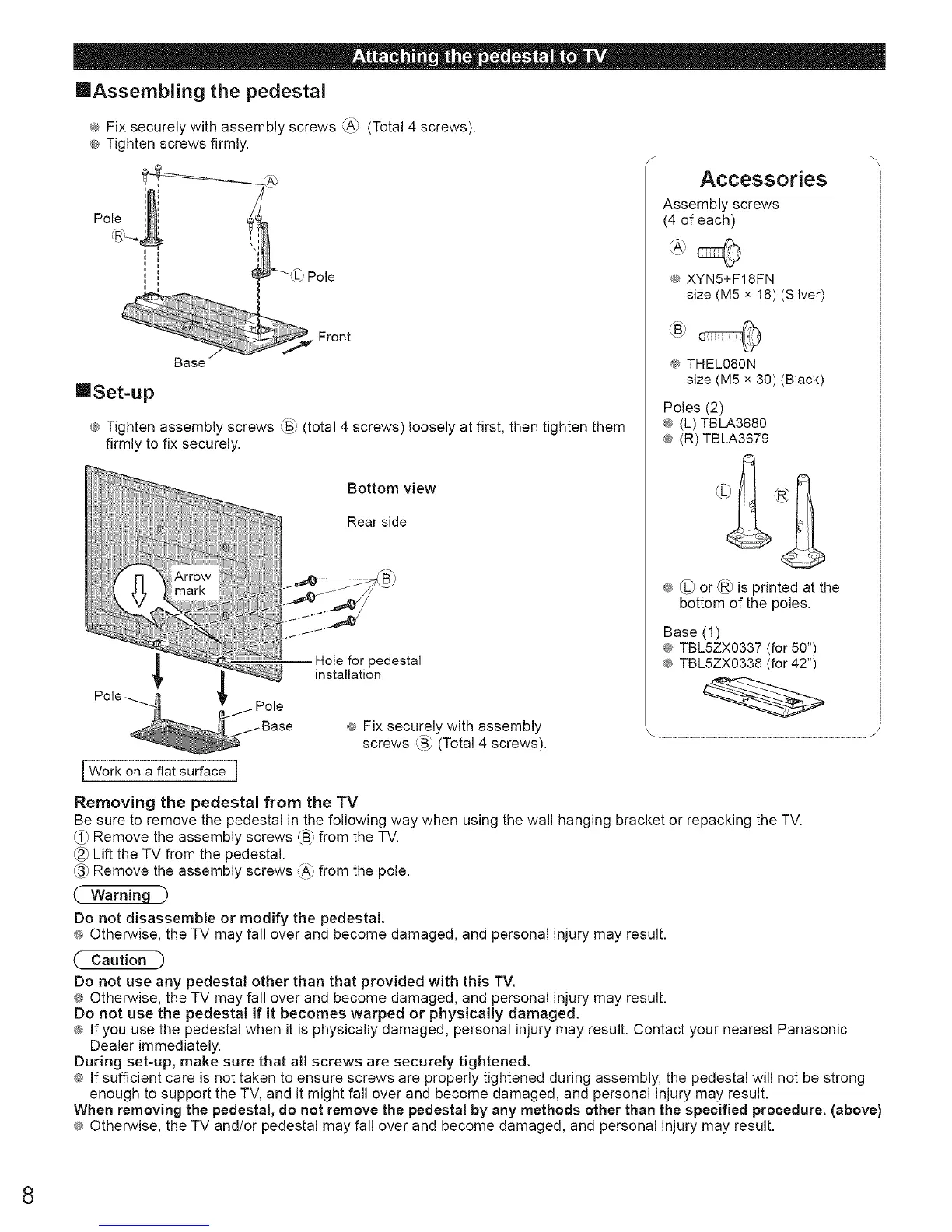

IIAssembling the pedestal
® Fix securely with assembly screws ,_A_(Total 4 screws).
_ Tighten screws firmly.
®
"-"{L} Pole
Front
reSet-up
_ Tighten assembly screws {_} (total 4 screws) loosely at first, then tighten them
firmly to fix securely.
Bottom view
Rear side
Hole for pedestal
installation
_ Fix securely with assembly
screws LB}(Total 4 screws).
I Work on a flat surface I
Removing the pedestal from the TV
Accessories
Assembly screws
(4 of each)
_A]J
@ XYN5+F18FN
size (M5 x 18) (Silver)
® THEL080N
size (M5 x 30) (Black)
Poles (2)
® (L) TBLA3680
(R) TBLA3679
® _L}or _,_ is printed at the
bottom of the poles.
Base (1)
® TBL5ZX0337 (for 50")
® TBL5ZX0338 (for 42")
........................................................................................................................................................J
Be sure to remove the pedestal in the following way when using the wall hanging bracket or repacking the TV.
d} Remove the assembly screws _B_from the TV.
(_ Lift the TV from the pedestal.
_3_Remove the assembly screws _A}from the pole.
( Warning )
Do not disassemble or modify the pedestal.
® Otherwise, the TV may fall over and become damaged, and personal injury may result.
(- Caution )
Do not use any pedestal other than that provided with this TV.
_ Otherwise, the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
¢ If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During set-up, make sure that all screws are securely tightened.
® If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong
enough to support the TV, and it might fall over and become damaged, and personal injury may result.
When removing the pedestal, do not remove the pedestal by any methods other than the specified procedure. (above)
® Otherwise, the TV and/or pedestal may fall over and become damaged, and personal injury may result.
8
