Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

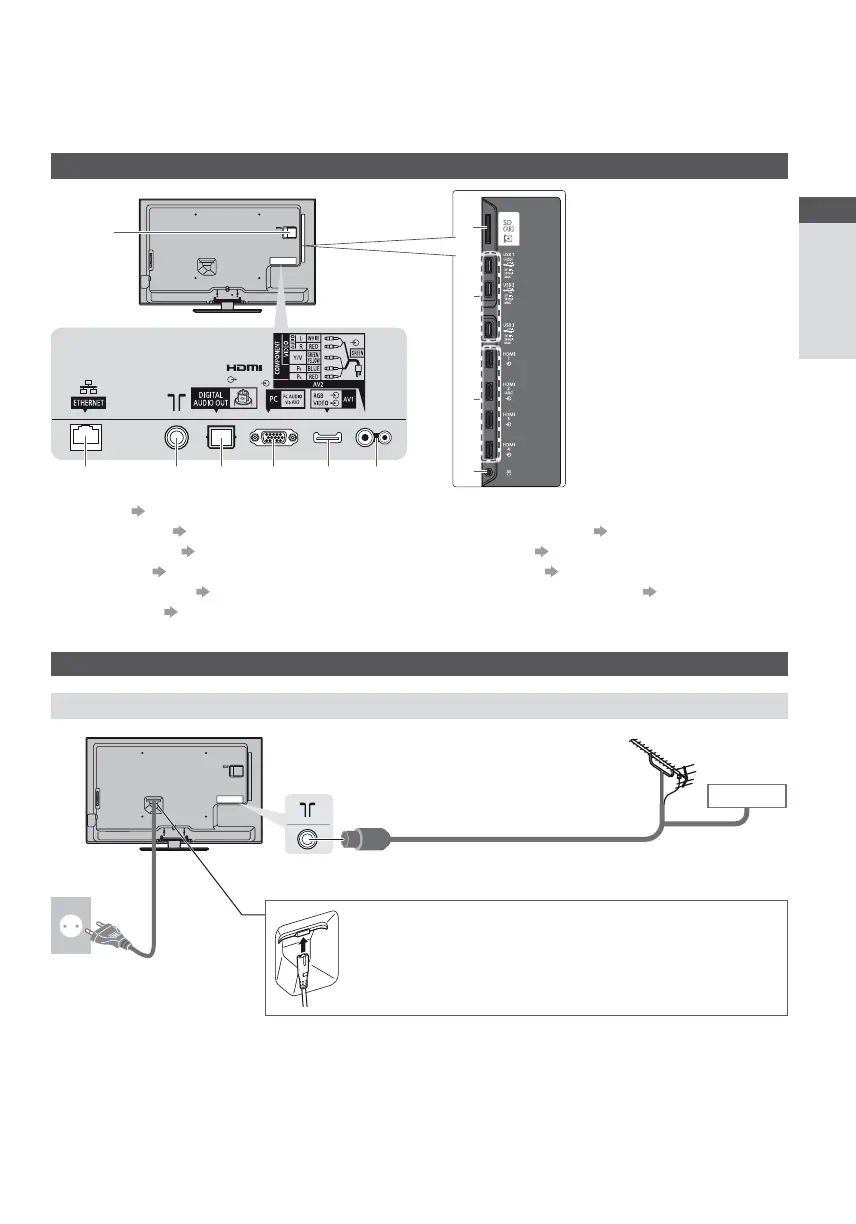

Terminals
678
1
91011
3
5
2
4
1
CI slot (p. 55)
2
SD Card slot (p. 60)
3
USB 1 - 3 port (p. 60, 87)
4
HDMI1 - 4 (p. 12, 87)
5
Headphone jack (p. 88)
6
ETHERNET (p. 13)
7
Terrestrial / cable terminal (see below)
8
DIGITAL AUDIO OUT (p. 87)
9
PC terminal (p. 87)
10
AV1 (SCART) (p. 12)
11
AV2 (COMPONENT / VIDEO) (p. 87, 88)
Connections
Mains lead and aerial
Cable
DVB-C, DVB-T, Analogue
AC 220-240 V
50 / 60 Hz
Mains lead
Terrestrial aerial
RF cable
Mains lead
Insert the mains plug (supplied) firmly into place.
When disconnecting the mains lead, be absolutely sure to
disconnect the mains plug at the socket outlet first.
