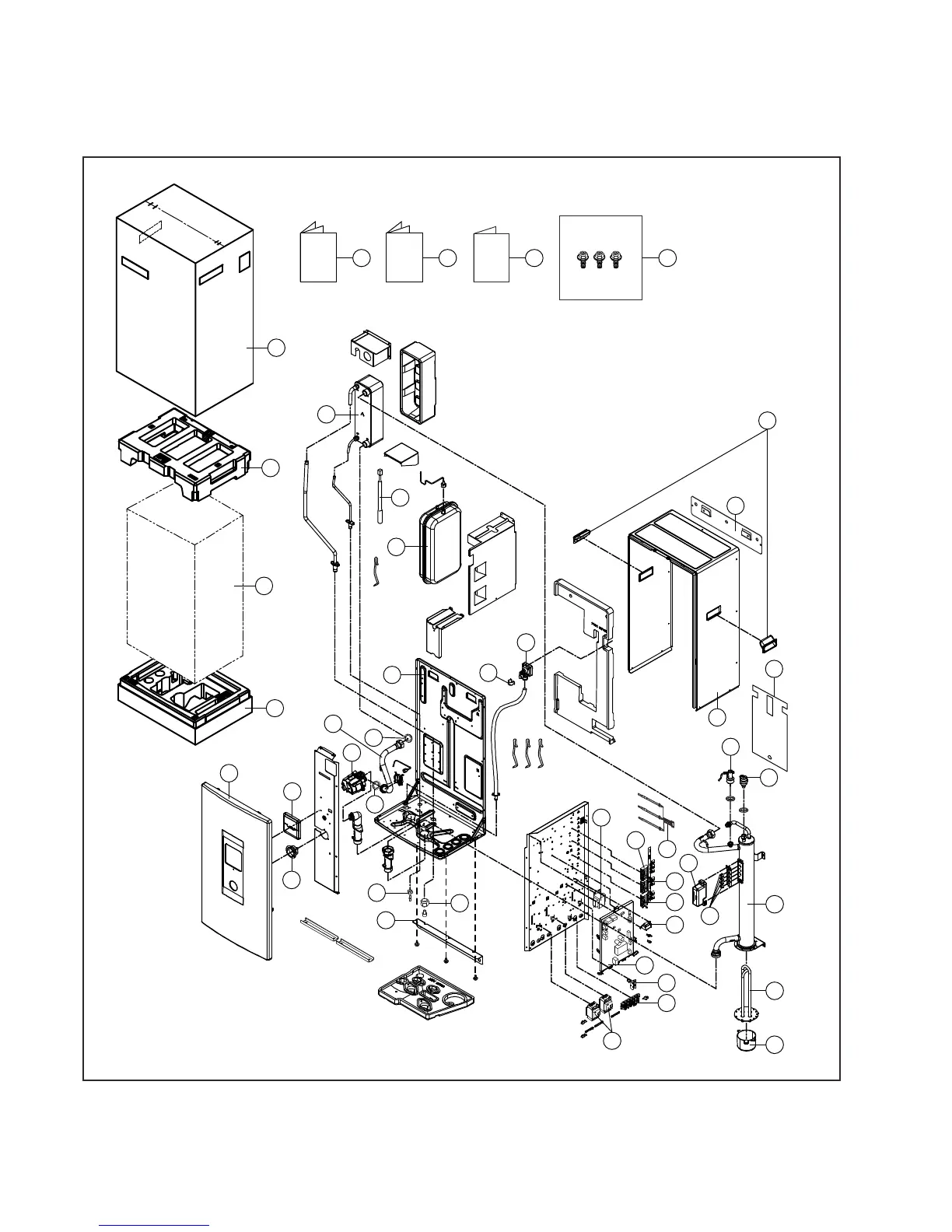

19. Exploded View and Replacement Parts List
19.1 WH-SHF09F3E5 WH-SHF12F6E5
40
I/I
39a
O/I
39
52
51
49
50
O/I
42
48
31
18
33
13
4
9
10
10
37
30
28
26
25
45
20
21
3
2
1
6
14
16
17
47
38a
31a
35
38
36
34
19
46
7
22
29
32
Note:
 The above exploded view is for the purpose of parts disassembly and replacement.
 The non-numbered parts are not kept as standard service parts.
