17
Position in the Rack

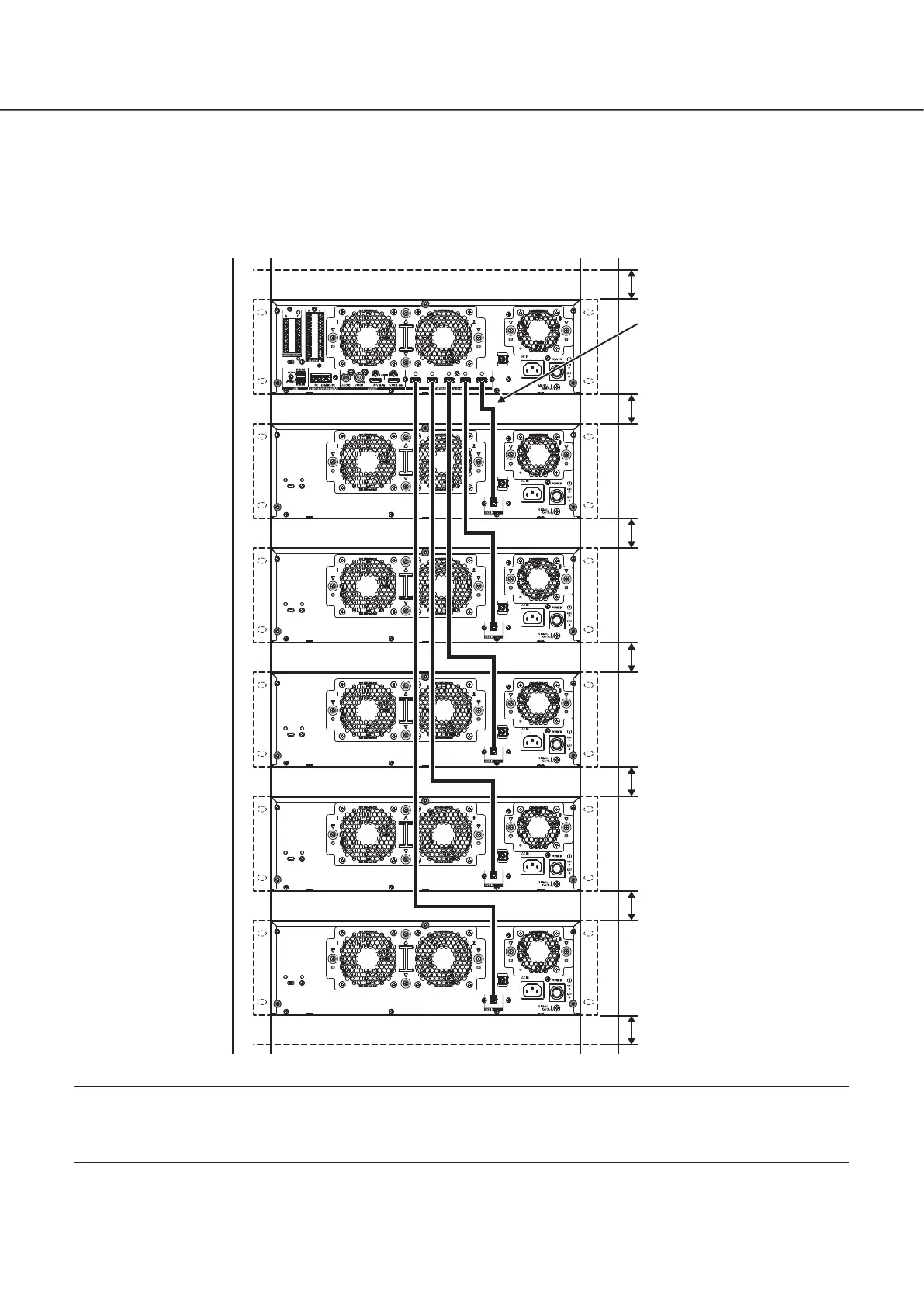

This is an example where the recorder (WJ-NX400K) and extension unit (max 5 units) are installed in the rack.
Connect the recorder and the extension unit using the connection cable (1.5 m {4 feet 11 inches}) provided with the unit.
(☞ Page 18)
(Other unit, Rack upper side)
(Other unit, Rack bottom side)
Recorder
Require a space of 1 unit
Require a space of 1 unit
Require a space of 1 unit
Require a space of 1 unit
Require a space of 1 unit
Connection cable
(provided with extension unit)
Extension Unit
(Unit number 1)
Extension Unit
(Unit number 2)
Extension Unit
(Unit number 3)
Extension Unit
(Unit number 4)
Extension Unit
(Unit number 5)
Require a space of 1 unit
Require a space of 1 unit
Note:
• When installing the extension unit in the rack, leave a space of 1U (44 mm {1-23/32 inches}) above and below the extension
unit for ventilation.
• The unit number is the same as the external storage connector number of the recorder.
1
Rack mounting (continued)
