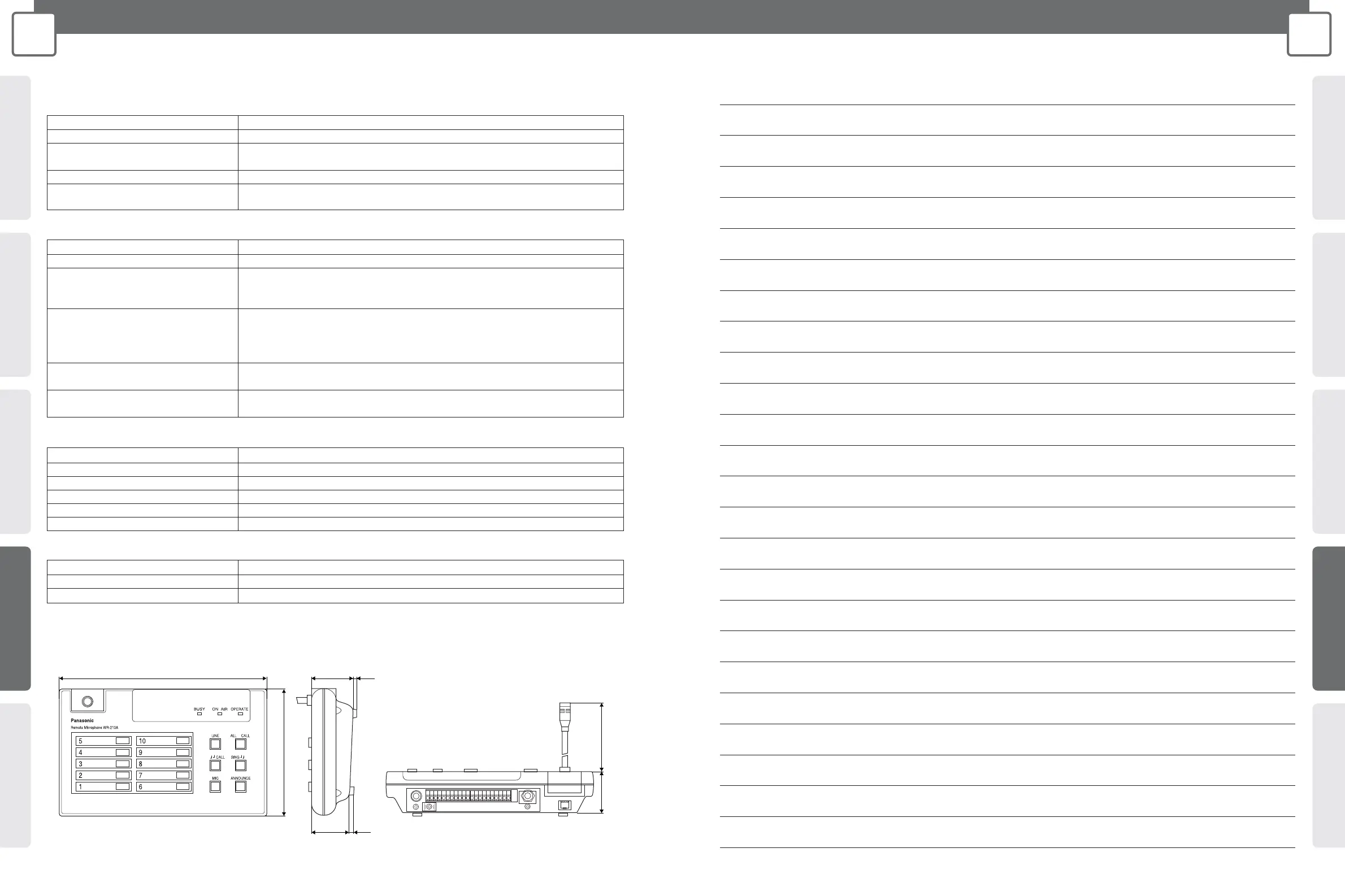

General
Power Supply 24 V DC, 45 mA or less (connection terminal)
Ambient Temperature 0 °C - +45 °C
Dimensions 250 (W) mm x 55 (H) mm x 155 (D) mm (excluding projections and flexible
microphone)
Weight Approx. 740 g {1.63 lbs}
Finishing Top case: OA ivory color (Munsell value 5.5Y7.5/0.3 approximate color)
Bottom case: Gray color (Munsell value N5.5 approximate color)
Audio-signal Input/Output
Frequency Characteristic Line: 50 Hz-15 000 Hz -3±2 dB
Distortion 1 % or less (at 1 000 Hz)
Microphone Input Unidirectional ECM microphone length: 350 mm
Input Sensitivity: -49 dBV (-44 dBV at factory)
SN Ratio 50 dB minimum
LINE IN ø 6.3 mm tip sleeve phone jack unbalanced
Input Sensitivity: -12 dBV (-2 dBV at factory)
Input impedance 10 kΩ
SN Ratio 70 dB minimum
Audio Output Connection terminal H,C, COM (0 V) balance
Output Level:0 dBV, matching load impedance 600 Ω
Record Output ø 6.3 mm tip sleeve phone jack unbalanced
Output Level:0 dBV, matching load impedance 10 kΩ
Control Output (Quick connection terminal panel)
Control Capacity Max: 30 V DC, 80 mA DC
Announcement Control 1 channel
Zone Control 1-10 channel
All-Zone Control CK0 one channel
Call Sign Control Rising, falling, 1 channel each
Priority Control Priority input, priority output 1 channel each
Other
Operation Buttons Individual, microphone, channel, all-zone, call sign up/down, announce
Indicators OPERATE, ON AIR, BUSY
Extension I/F Connector 1
