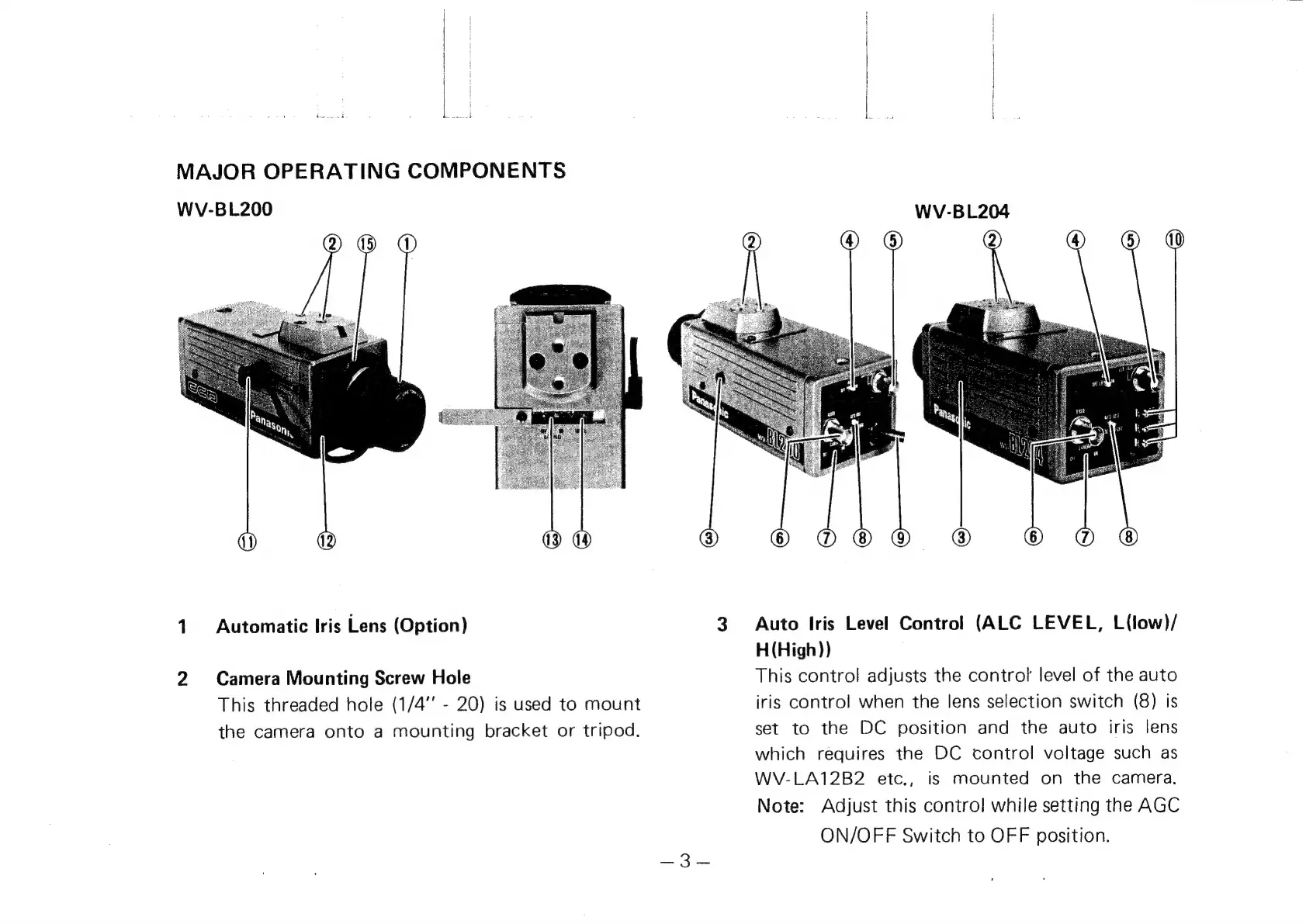

MAJOR OPERATING COMPONENTS
WV-BL200
i
|
|
|
|
|
|
|
| |
bw t
WV-BL204
1 Automatic Iris Lens (Option)
2 Camera Mounting Screw Hole
This threaded hole (1/4’’ - 20) is used to mount
the camera onto a mounting bracket or tripod.
Auto Iris Level Control (ALC LEVEL, L(low)/
H (High))
This control adjusts the controt level of the auto
iris control when the lens selection switch (8) is
set to the DC position and the auto iris lens
which requires the DC control voltage such as
WV-LA12B2 etc., is mounted on the camera.
Note: Adjust this contro! while setting the AGC
ON/OFF Switch to OFF position.
