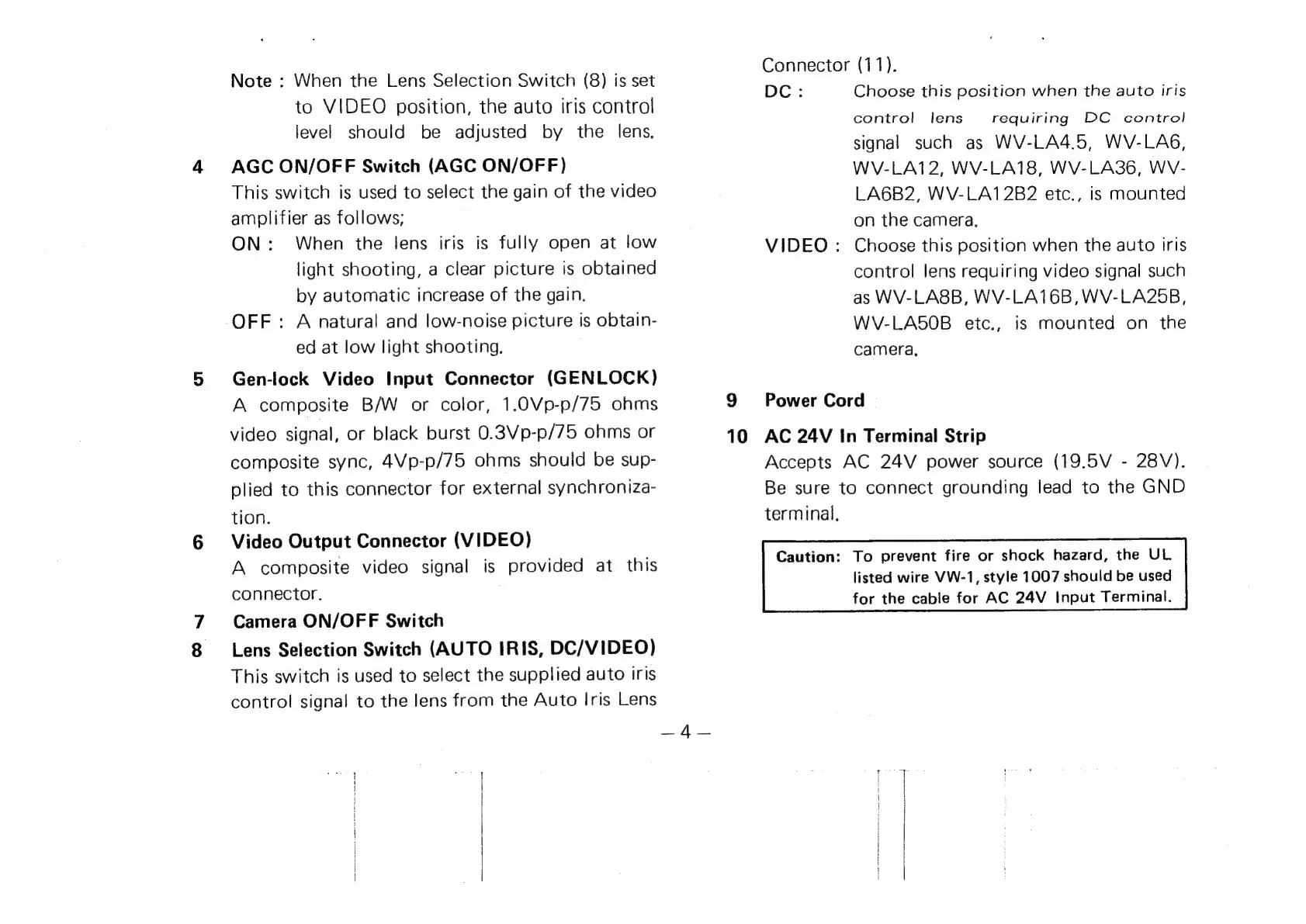

Note : When the Lens Selection Switch (8) is set
to VIDEO position, the auto iris control
level should be adjusted by the lens.
AGC ON/OFF Switch (AGC ON/OFF)
This switch is used to select the gain of the video
amplifier as follows;
ON: When the lens iris is fully open at low
light shooting, a clear picture is obtained
by automatic increase of the gain.
OFF: A natural and low-noise picture is obtain-
ed at low light shooting.
Gen-lock Video Input Connector (GENLOCK)
A composite B/W or color, 1.0Vp-p/75 ohms
video
signal,
or
black
burst
0.3Vp-p/75
ohms
or
composite
sync,
4Vp-p/75
ohms
should
be
sup-
plied
to
this
connector
for
external
synchroniza-
tion.
Video Output Connector (VIDEO)
A
composite
video
signal
is
provided
at
this
connector.
Camera ON/OFF Switch
Lens
Selection
Switch
(AUTO
IRIS,
DC/VIDEO)
This switch is used to select the supplied auto iris
control signal to the lens from the Auto Iris Lens
10
Connector (11).
DC: Choose this position when the auto iris
control lens requiring DC control
signal such as WV-LA4.5, WV-LAG,
WV-LA12, WV-LA18, WV-LA36, WV-
LA6B2, WV-LA12B2 etc., is mounted
on the camera.
Choose this position when the auto iris
control lens requiring video signal such
as WV-LA8B, WV-LA16B,WV-LA25B,
WV-LA5OB etc., is mounted on the
camera,
VIDEO :
Power Cord
AC 24V In Terminal Strip
Accepts AC 24V power source (19.5V - 28V).
Be sure to connect grounding lead to the GND
terminal,
To prevent fire or shock hazard, the UL
listed wire VW-1, style 1007 should be used
for the cable for AC 24V Input Terminal.
Caution:
