12

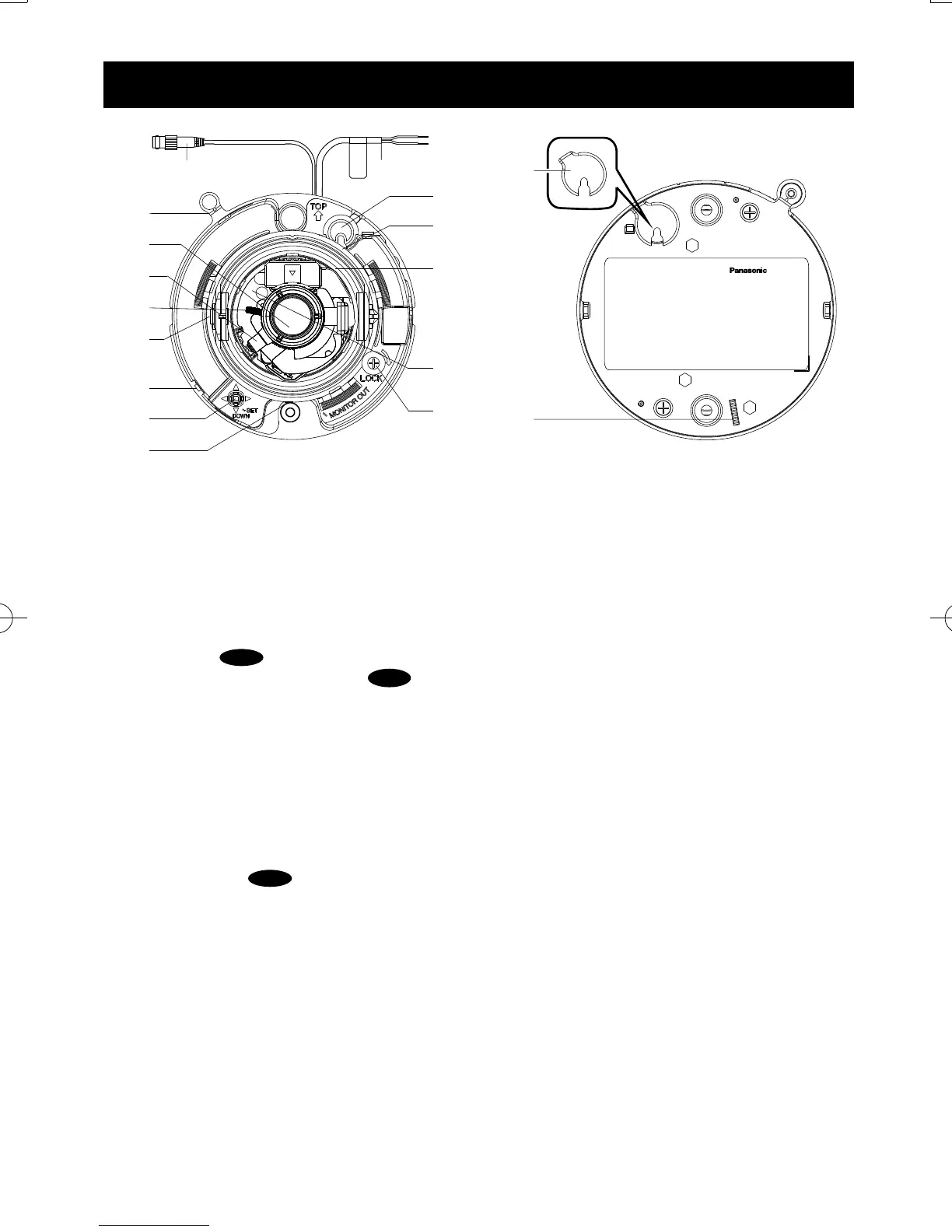

Major operating controls and their functions
(This illustration represents WV-CF634.)
1 Video output connector
Transmits composite video signals.
2 Mark
This mark is used when the dome cover is
installed.
3 Lens
4
Focus knob
CF634
Focus knob (with lock function)
Locks the focus position after focus adjust-
ment.
5 Zoom knob (with lock function)
Locks the zoom position after zoom adjust-
ment.
6 Tilting lock screw
Locks the tilting position.
7 AF button [AF]
CF634
page 21.
8 Setup button [SET]
Press the [SET] button once and the “FOCUS
ADJUSTMENT” screen will be displayed.
Hold down the [SET] button for more than 2
seconds and the setup menu will be
displayed.
•[LEFT]/[RIGHT]: Press the [RIGHT] or
[LEFT] button to move to the right or left in
the menu, or change the displayed values.
•[UP]/[DOWN]: Press the [UP] or [DOWN]
button to move up or down in the menu.
G
F
1
2
3
4
5
6
7
8
9
A
B
C
D
E
<
•
[SET]: Press this button in the menu to confirm
the selected value or function. In addition, this
button is used to open submenus.
9 Adjustment monitor output jack
Connect the adjustment monitor (small LCD
monitor, etc.) to the adjustment monitor
output jack to adjust the camera angle.
@ Panning table lock screw [LOCK]
Locks the panning position after adjustment.
A Azimuth adjuster
Adjusts the azimuth angle of the camera.
B Tilting table
Adjusts the tilting position of the camera.
C Panning table
Adjusts the panning position of the camera.
D Cable access hole
E Power cord
Supplies 24 V AC or 12 V DC from an
external power source.
F Dust guard cap
A rubber cap which prevent dust go into the
camera through the cable access hole.
G Fingerplate
This is where to put your fingers when
removing the dome cover.
