Installation
place
Applicable mount
bracket
Recommended
screw
Number
of screw
Minimum pull-out
strength (per 1 pc.)
Ceiling / wall
One-gang junction box
(locally procured)
M4 2 pcs. 196 N {44.06 lbf}
Ceiling / wall (Direct mounting) M4 2 pcs. 196 N {44.06 lbf}
Ceiling
WV-Q174
(approx. 310 g {0.66 lbs})
- - *1
*1 Make sure that the installed mount bracket can support more than 5 times of the weight of the
camera.
When installing the camera on a wall or ceiling, two are two methods as specified below.
 • Usetheone-gangjunctionbox
 • Installingthecameradirectlyonawallorceiling
 • UsingtheoptionalceilingmountbracketWV-Q174(forembeddedinstallationonaceiling)
Important:
 • Procure2screws(M4)tosecurethecameratoawallorceilingaccordingtothematerialofthe
installation area. Do not use wood screws and nails. For mounting a camera on a concrete wall
or ceiling, use an anchor bolt (M4) for securing.
(Recommended tightening torque M4: 1.6 N·m{1.18 lbf·ft})
 • Requiredpull-outstrengthofasinglescrew/boltis196N{44.06lbf}ormore.
 • Ifaceilingboardsuchasplasterboardistooweaktosupportthetotalweight,theinstallation
area shall be sufficiently reinforced.
 • Theprotectionsheetattachedtothedomesectionshouldbepeeledoffafterinstallation.
The mounting conditions of the camera are described as follows:

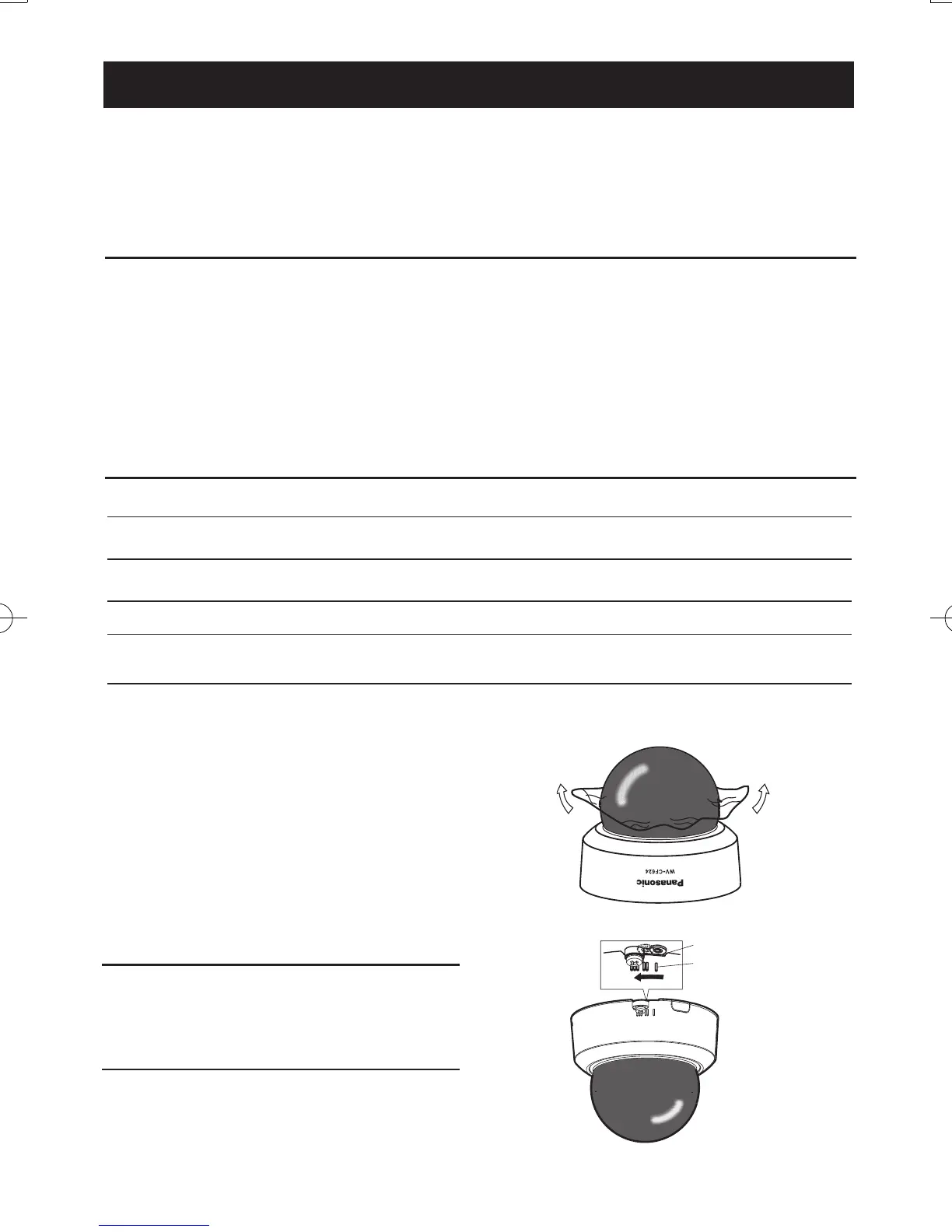

 Remove the dome cover
1 Peelofftheprotectionsheetfromthedome
cover. Don't remove completely as this pro-
tects the dome during installation.
2 Loosen the dome cover fixing screw.
3 Adjust the mark on this unit to [|] on the
dome cover, and turn the dome cover
counterclockwise to remove it.
Preparations
Mark
Mark
[
|
]
NOTE:
 • Thecleardomecoverandtheinnerdome
are joined into a single unit.
Therefore,nevertrytoremovethem.
