Panasonic WV-CF634 - Adjustment Procedures; Pan, Tilt, and Azimuth Adjustment

18
1 Connect the ∅3.5 mm miniature plug (mono channel) to the adjustment monitor output jack.
Important:
•Thisvideo output is intended for confirmation of view angle, etc. during installation or repair
service, and not for recording or monitoring.
Note:
•Video cannot be output through the video output cable after connecting the adjustment
monitor.

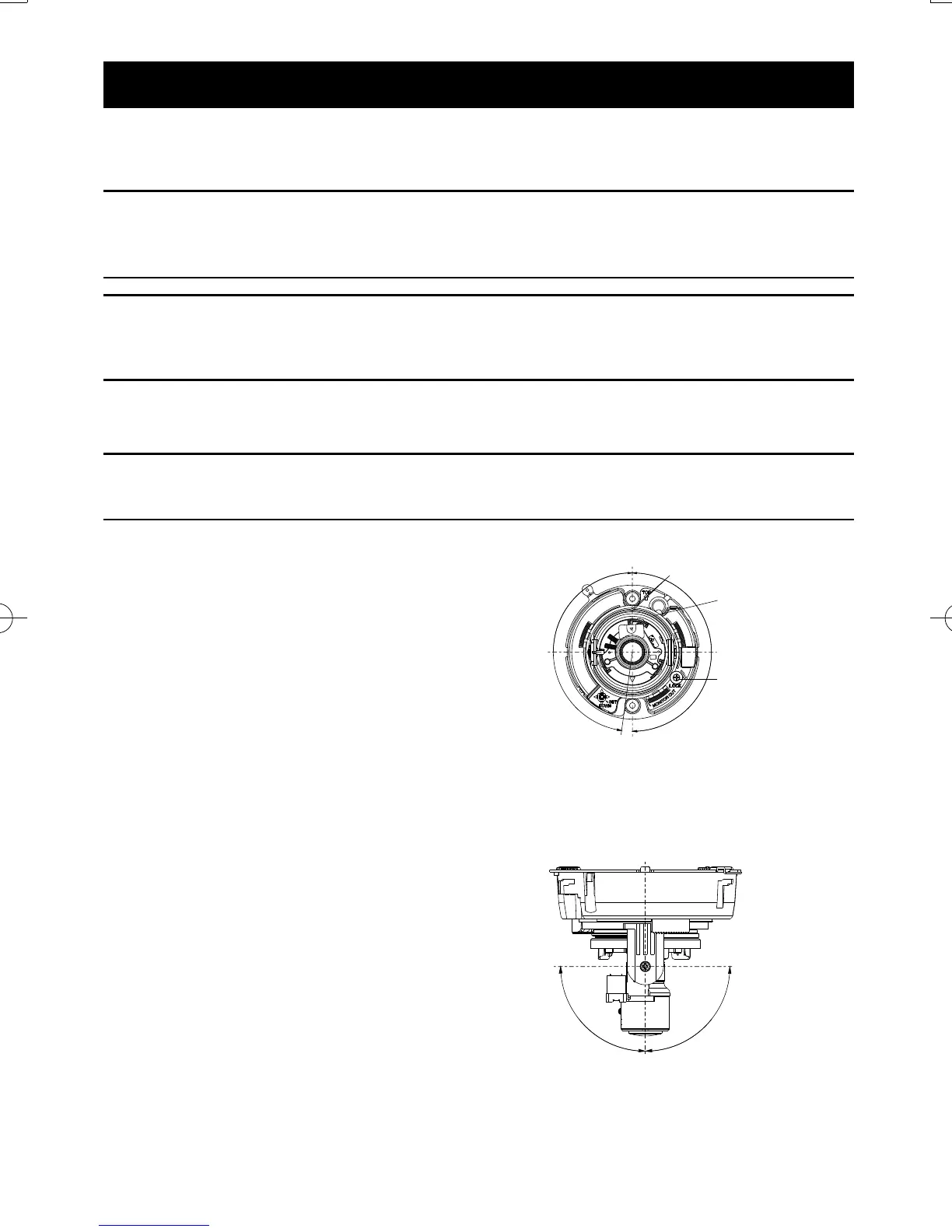

2 Pan, tilt and azimuth adjustment
Important:
•
Whenadjustingpan,tiltorazimuth,donotholdthelensofthecamera.
1 Adjustment of panning position
Loosen the panning table lock screw and
rotate the table to determine the panning
position (adjustable range: 350°).
• The panning position can be adjusted
between +180° (clockwise) and –170°
(counter-clockwise).
• Afterthepanningpositionisdetermined,fix
the panning table with the panning table
lockscrew.
(Recommended torque: 0.39 N·m {0.29 lbf·ft})
2 Adjustment of tilting position
Turn the tilting table to adjust the tilting
position of the camera. (adjustable range:
±90 °)
• Theviewanglecanbeadjustedasthecam-
era uses vari-focal lens.
• Tightenthetiltinglockscrewafter
adjustment.
(Recommended torque: 0.59 N·m {0.43 lbf·ft})
Adjustment
Original position mark
Panning table
Panning table lock
screw[LOCK]
Clockwise: +180 º
Counter-
clockwise: -170 º
Adjustable range: ±90 º
