10

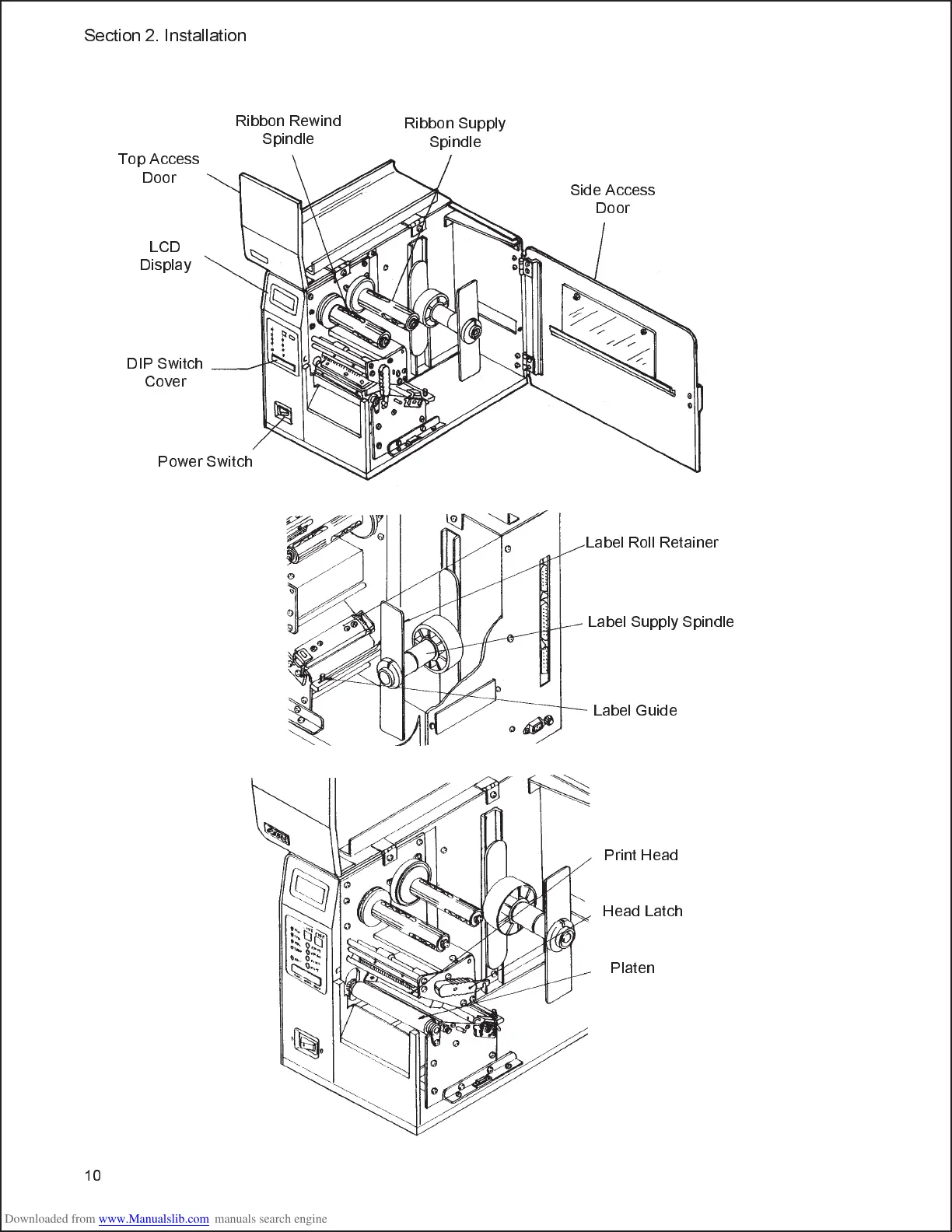

Section 2. Installation
Side Access
Door
Ribbon Supply
Spindle
Ribbon Rewind
Spindle
Top Access
Door
LCD
Display
DIP Switch
Cover
Power Switch
Label Roll Retainer
Label Supply Spindle
Label Guide
Print Head
Head Latch
Platen
