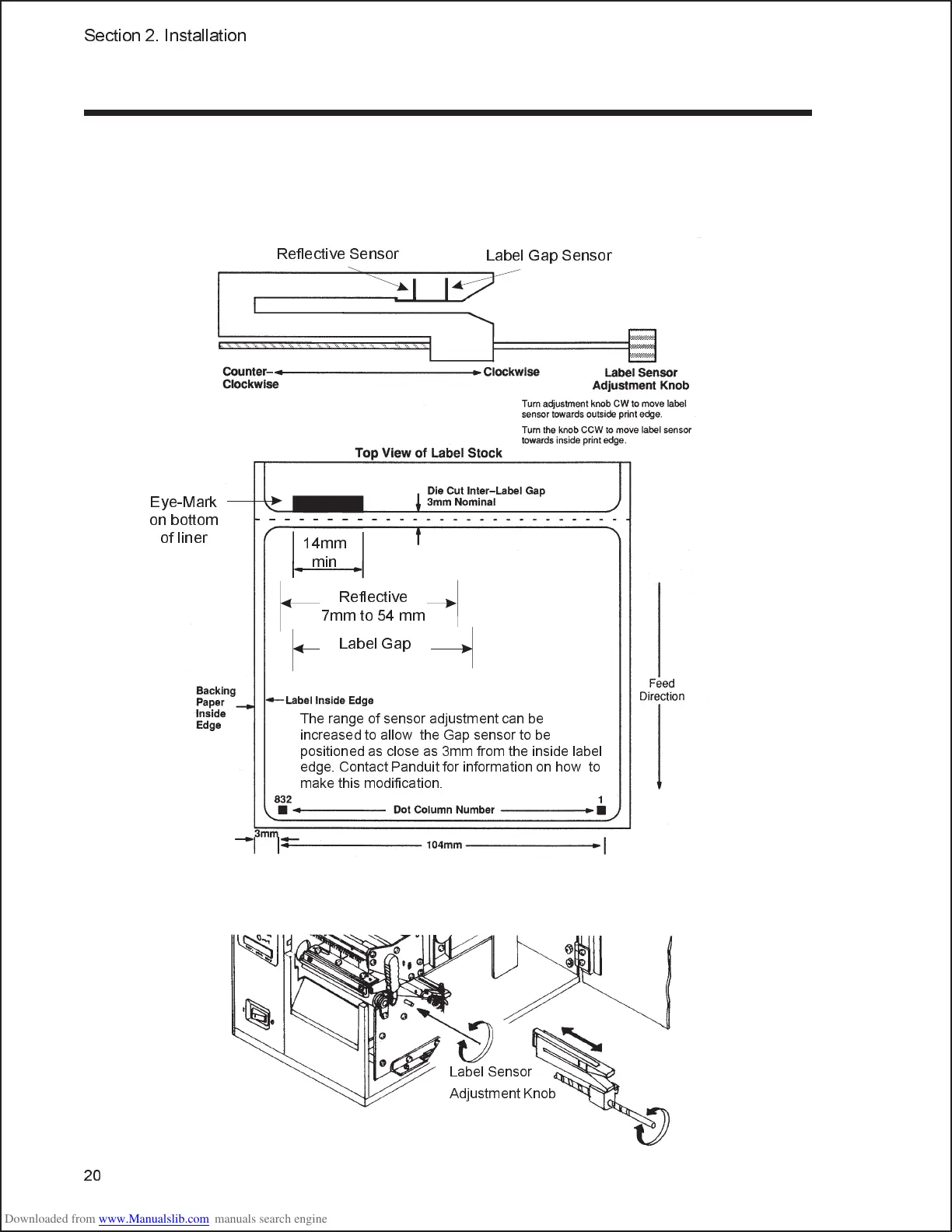

LABEL SENSOR ADJUSTMENT
The Label Sensor Assembly can be positioned to match the location of the label
registration hole/gap/edge. The diagram below illustrates the relative position of
each sensor along the Label Sensor Unit and its range of movement. To position the
sensors, use the adjustment knob located outside and below the print head
assembly.
20
Section 2. Installation
14mm
min
Reflective
7mm to 54 mm
Label Gap
Label Gap Sensor
Reflective Sensor
The range of sensor adjustment can be
increased to allow the Gap sensor to be
positioned as close as 3mm from the inside label
edge. Contact Panduit for information on how to
make this modification.
Eye-Mark
on bottom
of liner
Label Sensor
Adjustment Knob
To Next Page
