11. Adjust the outside Label Edge Guide until it touches the outside edge of the
label and tighten the thumb screw. Make sure the labels are also touching the
inside edge guides.
CAUTION: Using media narrower than the maximum print width may cause excess
head wear due to the label edge. See page 15 for precautions.
12. If the ribbon is already loaded, close the Print Head by rotating the black
Head Latch toward the front of the printer until it latches closed.
13. If the ribbon is not loaded, see the following description for loading
instructions.
14. Close both Access Doors.
13
Section 2. Installation

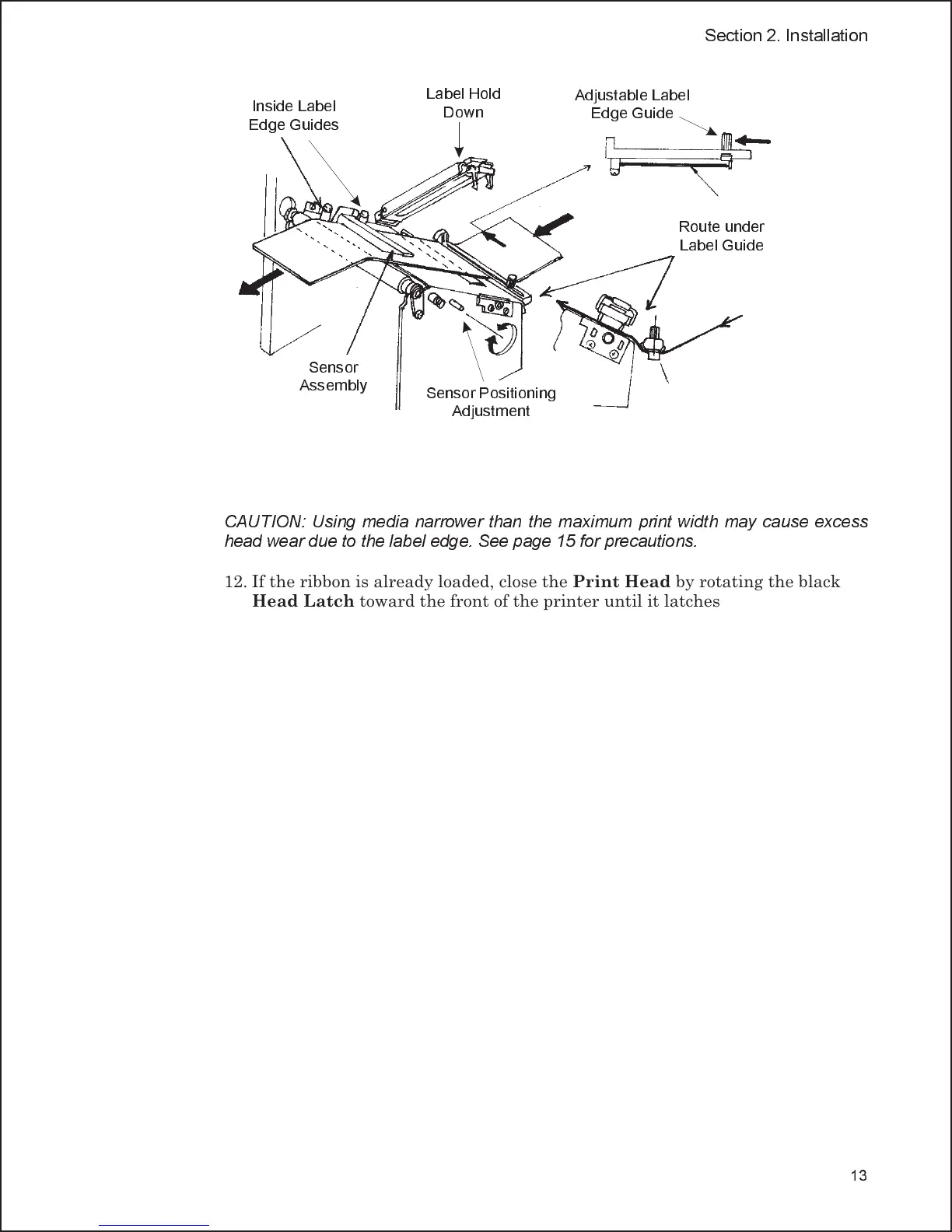

Adjustable Label
Edge Guide
Inside Label
Edge Guides
Sensor
Assembly
Sensor Positioning
Adjustment
Route under
Label Guide
Label Hold
Down
