ParaBody 220 - Step 12: Cable Routing

FIGURE 11
STEP 11:

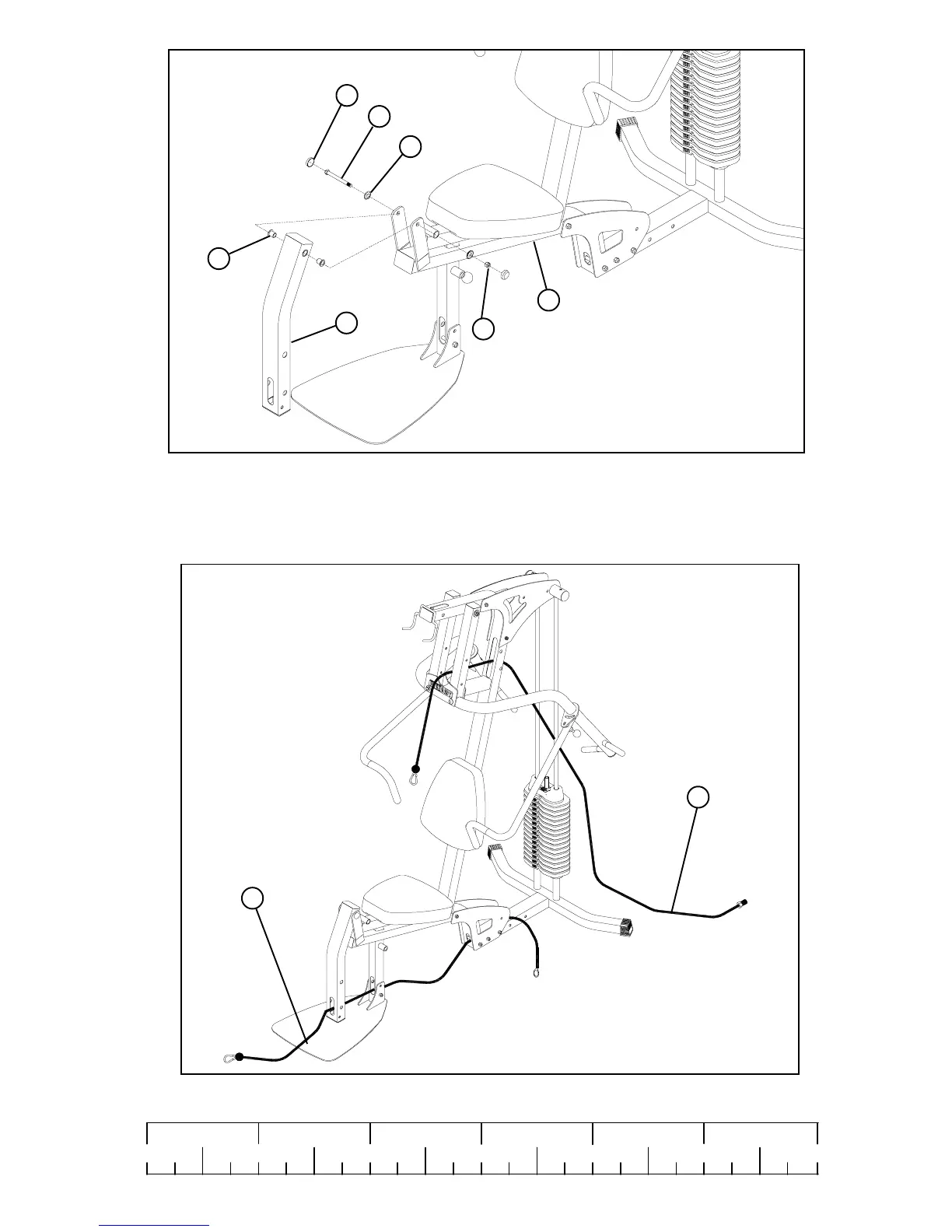

• Insert two 1/2” FLANGE BEARINGS (40) into LEG PEDESTAL (11) as shown.
• Assemble the LEG PEDESTAL (11) to the FRAME (1) using one 1/2 X 4” BOLT (32), two RH WASHERS (56)
and one 1/2” LOW HT LOCK NUT (35)
• Assemble two RH CAPS (55) to the 1/2” RH WASHERS (56) as shown in FIGURE 11
• Route LAT CABLE (20) and LOW CABLE (21) as shown in FIGURE 12
