ParaBody 220 - Assembly Instructions; Step 1: Base Plates and Footplate

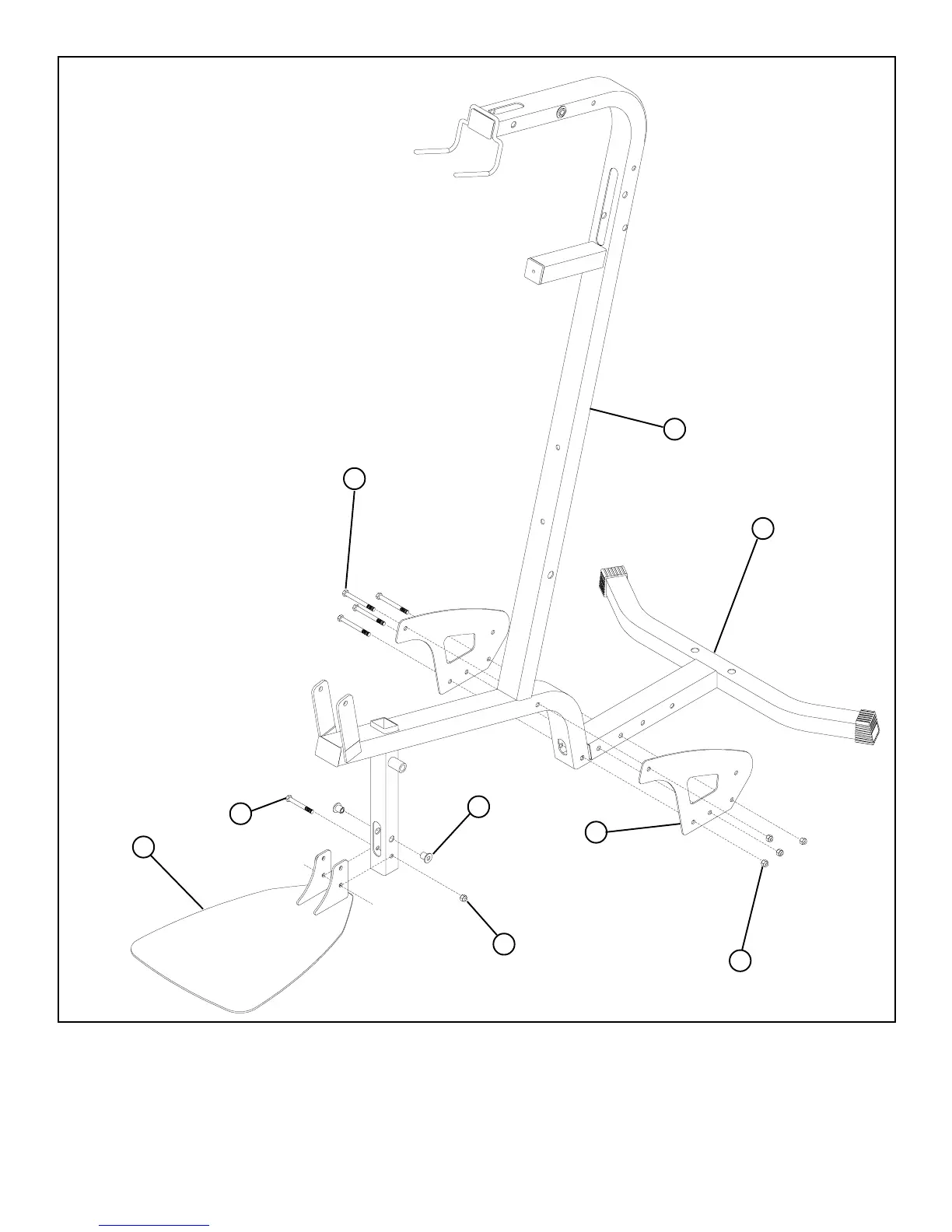

FIGURE 1
6
STEP 1:
• LOOSELY assemble the FOOTPLATE (62) to the lower holes in the FRAME (1) using one 3/8 x 3” BOLT (29) and one
3/8 LOCKNUT (34)
1
34
30
2
62
3/8 X 3-3/4
29
41
34
3
• LOOSELY assemble two BASE PLATES (3) to the FRAME (1) and BASE (2) using four 3/8 X 3-3/4” BOLTS (30)
and four 3/8” LOCK NUTS (34). See FIGURE 1.
• Insert two 3/8 x 9/16” FLANGE SPACERS (41) into the upper holes in the FRAME (1) as shown in figure 1
