ParaBody GS4 - Page 9

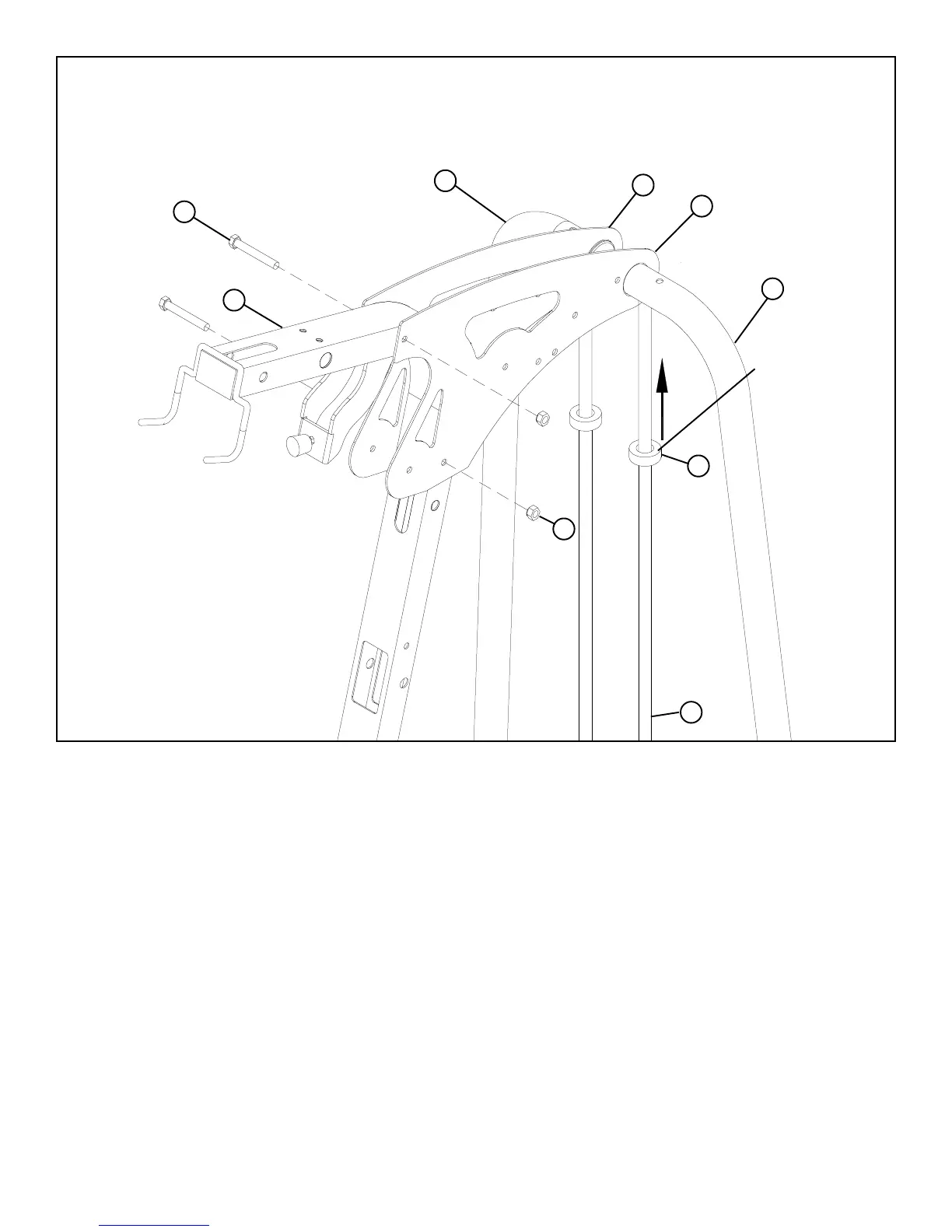

FIGURE 6
STEP 6:
9
19
AC
29
D
E
A
3/8 X 3-3/4” 6
• SECURELY assemble the LEFT (D) and RIGHT (E) BOOM PLATES to the FRAME (A) using two 3/8 X 3-3/4” BOLTS (6) and two 3/8”
LOCK NUTS (19). See FIGURE 6.
• Slide up both SHAFT COLLARS (29) to top until flush with bottom of the guide rod bushings in both the LEFT (M) and RIGHT (N) REAR
UPRIGHTS and SECURELY TIGHTENas shown in FIGURE 6
M
N
SLIDE COLLARS
UP AND SECURELY
TIGHTEN
