023-064X Technical Manual
70-PHW-1018-R3.2 MTA 8.5 023-064X Refrigerant Leak Detector Manual.docx 11

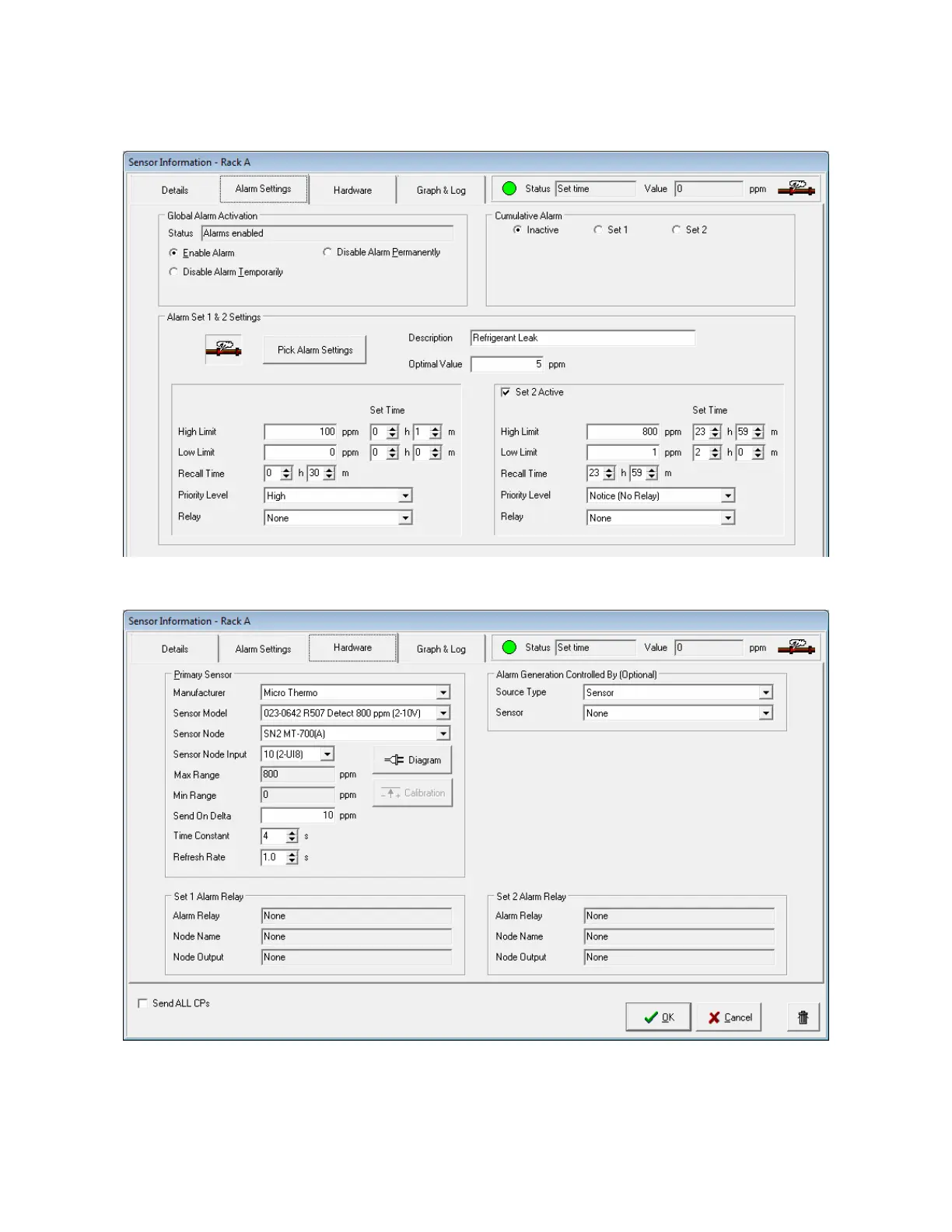

Select Alarm Settings tab to set the limit values and the set time inside which the monitoring should
run without any alarm. You can use predefined values by clicking on Pick Alarm Settings button.
Select the Hardware tab to review the sensor manufacturer and model and where you can select the node
and input where this sensor is connected. If you need help to make the wire connections click on Diagram.
Click OK to complete the connection. If the node is connected, you should get a green status right
away even if the sensor is not powered.
