023-064X Technical Manual
12
7 To add a missing Sensor model in the list

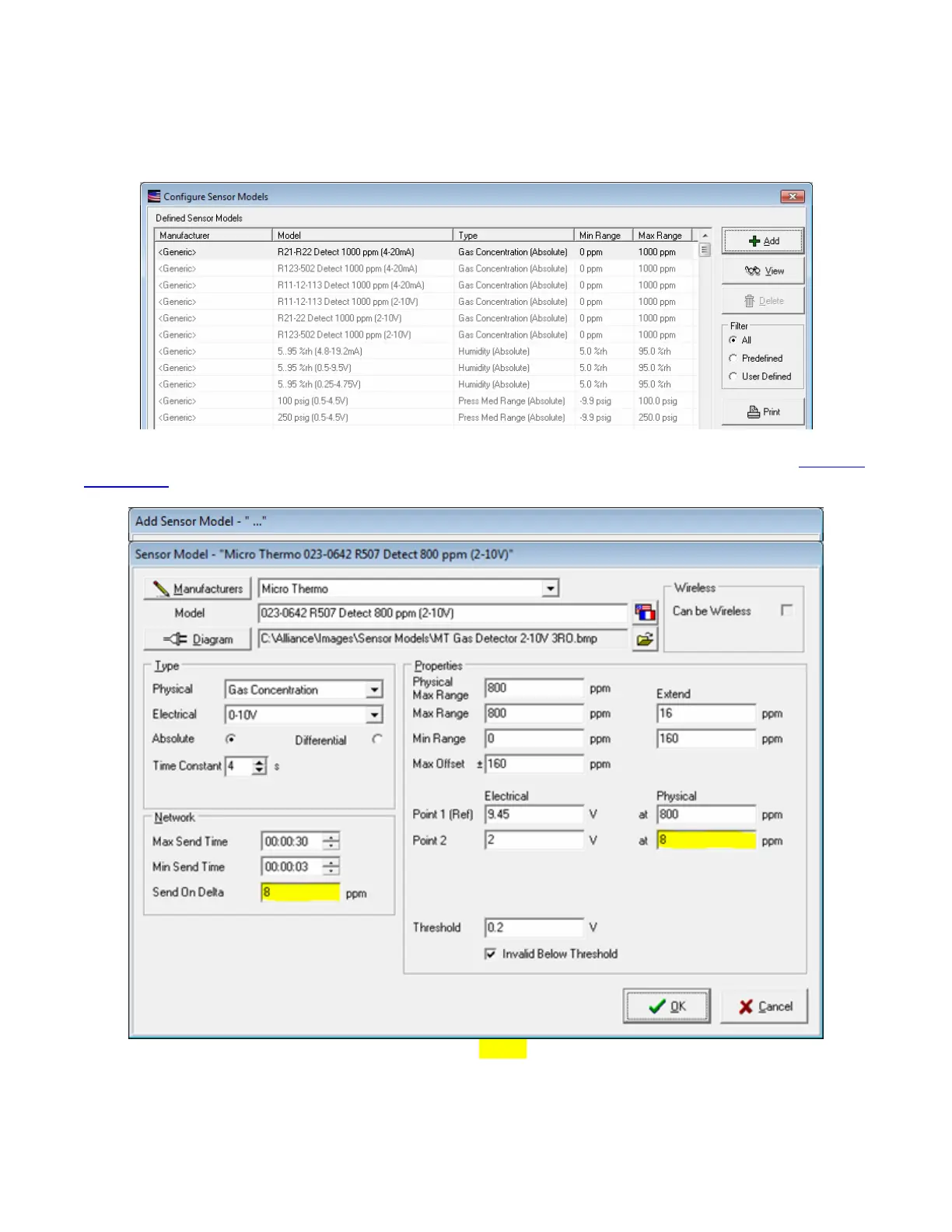

If the required 023-064X model does not exist on your site, you can create one with the Sensor model
form in the Configure menu:
Click Add and fill the form using the gas type and range accordingly to the table at section 1.3 Ordering
information
Electrical point values are constant and should always be 9.45V and 2V respectively.
Please pay special attention to put 1% of full range (8 ppm for 800 ppm) for Send On Delta and for the
bottom signal range Point 2. For all sensor with ppm reading keeping a non-zero value at Point 2 is the
way to allow the MT Alliance to monitor the heartbeat of the sensor while the sensor is showing 0 ppm.
