Refrigerating Specialties Division
6

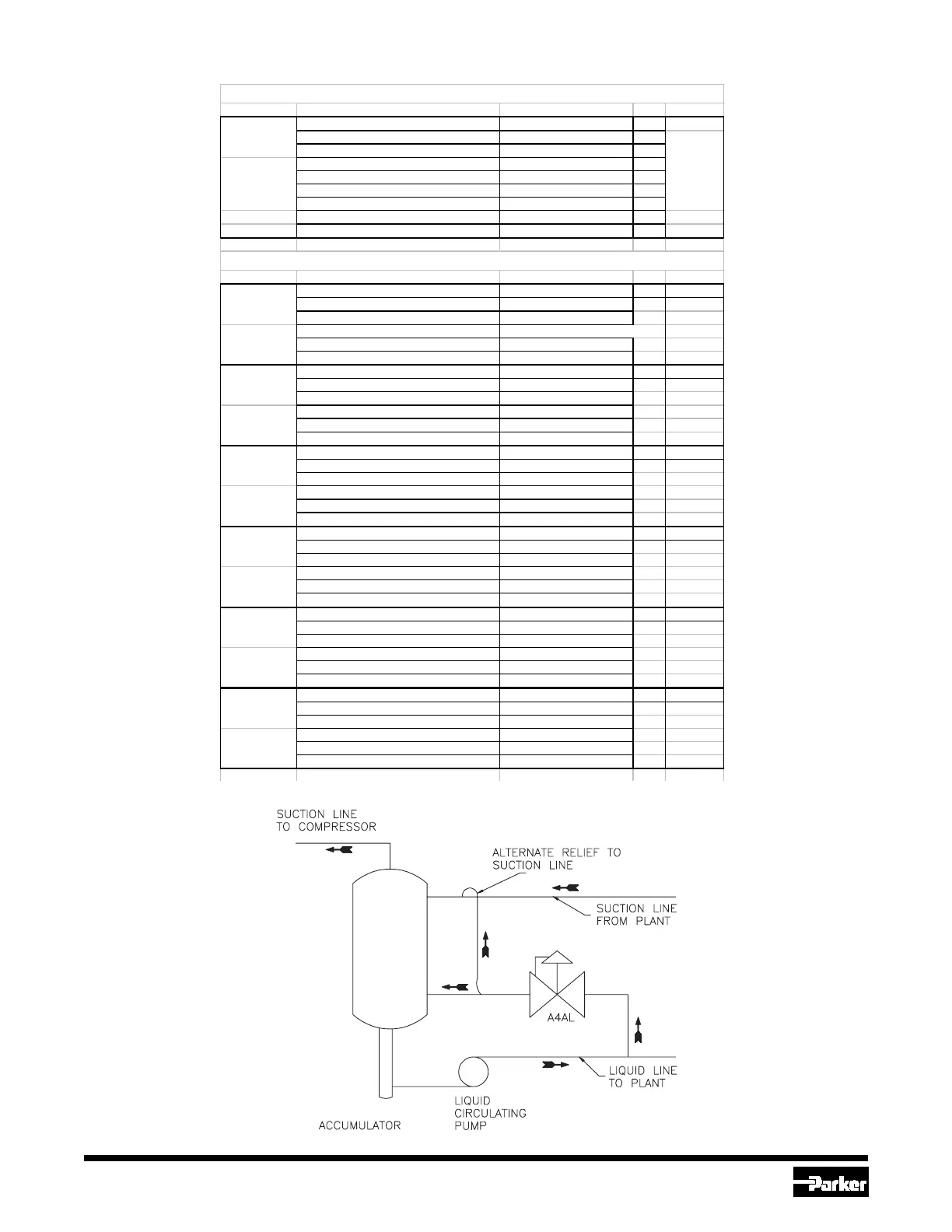

PRESSURE CONTAINING COMPONENTS A4A DN LINE: 3/4" & 1"
COMPONENT DESCRIPTION MATERIAL Kv VOLUME
BODY, A4A DN ASTM A-126 CLASS B 6.2
ADAPTER, A4A DN ASTM A-126 CLASS B &
COVER BOTTOM, A4A/S4A BARSTOCK ASTM 1213 CR 8.6
BONNET A4W ASTM A-126 CLASS B
BODY,S6A (REGULAR MATL) DUCTILE IRON ASTM A536
TUBE SOLENOID, S6 SS TUBING 304
SLEEVE, SOLENOID TUBE AISI 1117 CRS BARSTOCK
BODY, A2D DN ASTM A-126 CLASS B
PRESSURE CONTAINING COMPONENTS A4A DN LINE: 1-1/4 TO 4
COMPONENT DESCRIPTION MATERIAL Kv VOLUME
BODY, A4A DN DUCTILE IRON GGG 40.3 15 0.57 L
ADAPTER, A4A DN DUCTILE IRON GGG 40.3
COVER BOTTOM, A4A/S4A BARSTOCK ASTM 1213 CRS
BONNET A4W DUCTILE IRON GGG 40.6
COMPONENT DESCRIPTION MATERIAL Kv VOLUME
BODY, 2 A4A DN DUCTILE IRON GGG 40.3 28.6 1.61 L
ADAPTER, 2 A4A DN DUCTILE IRON GGG 40.3
COVER BOTTOM, A4A/S4A 1-5/8 to 2-1/2 DUCTILE IRON GGG 40.3
BONNET A4W DUCTILE IRON GGG 40.3
COMPONENT DESCRIPTION MATERIAL Kv VOLUME
BODY, 2 A4A DN DUCTILE IRON GGG 40.3 42.4 1.61 L
ADAPTER, 2 A4A DN DUCTILE IRON GGG 40.3
COVER BOTTOM, A4A/S4A 1-5/8 to 2-1/2 DUCTILE IRON GGG 40.3
BONNET A4W DUCTILE IRON GGG 40.3
COMPONENT DESCRIPTION MATERIAL Kv VOLUME
BODY, 2-1/2 A4A DN DUCTILE IRON GGG 40.3 60 3.19 L
ADAPTER, 3 A4A DN DUCTILE IRON GGG 40.3
COVER BOTTOM, 3 A4A/S4A DUCTILE IRON GGG 40.3
BONNET A4W DUCTILE IRON GGG 40.3
COMPONENT DESCRIPTION MATERIAL Kv VOLUME
BODY, 3 A4A DN DUCTILE IRON GGG 40.3 86 3.91 L
ADAPTER, 3 A4A DN DUCTILE IRON GGG 40.3
COVER BOTTOM, 3 A4A/S4A DUCTILE IRON GGG 40.4
BONNET A4W DUCTILE IRON GGG 40.3
COMPONENT DESCRIPTION MATERIAL Kv VOLUME
BODY, 4 A4A DN DUCTILE IRON GGG 40.3 116 6.5 L
ADAPTER, 4 A4A DN DUCTILE IRON GGG 40.3
COVER BOTTOM,4 A4A/S4A DUCTILE IRON GGG 40.4
BONNET A4W DUCTILE IRON GGG 40.3
75 MM
1-1/4 IN
1-5/8 IN
2 IN
2-1/2 IN
3/4 & 1IN
20 & 25
MM
100 MM
3 IN
4 IN
32 MM
40 MM
50 MM
65 MM
