Parker Compax3 S150 V4 Installation Manual

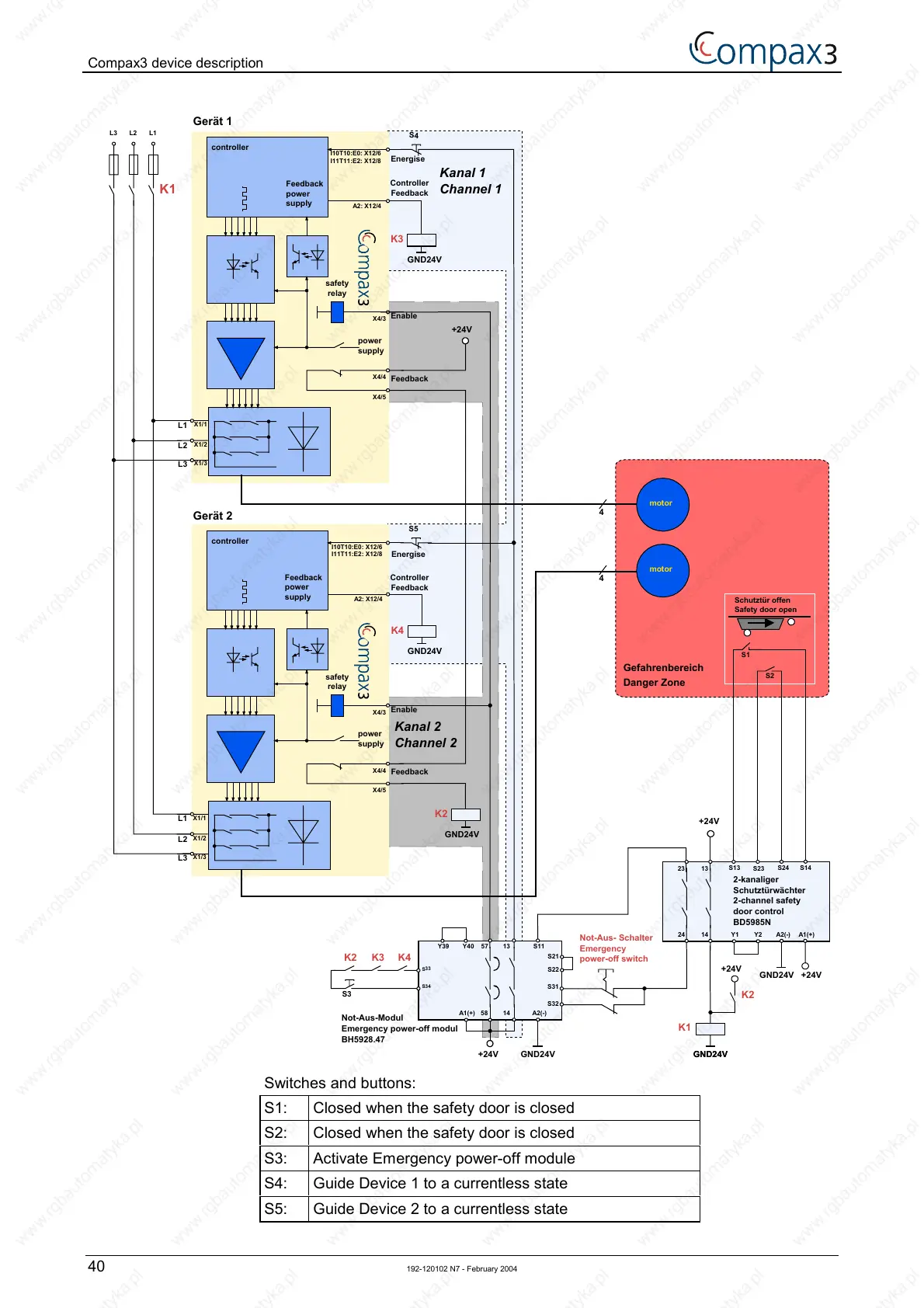

Compax3 device description
40 192-120102 N7 - February 2004
L3 L2 L1
K1
controller
L1
L2
L3
Energise
Controller
Feedback
Enable
Feedback
safety
relay
X4/3
X4/5
X4/4
X1/1
X1/2
X1/3
Feedback
power
supply
power
supply
A2: X1 2/4
I10T10:E0: X12/6
I11T11:E2: X12/8
Not-Aus-Modul
Emergency power-off modul
BH5928.47
S11
S31
Y39 Y40
A1(+)
2-kanaliger
Schutztürwächter
2-channel safety
door control
BD5985N
+24V
1424
1323
S13
S23
S14S24
K1
S32
Not-Aus- Schalter
Emergency
power-off switch
14
13
S
3
3
K2 K3
S
3
K4
S22
S21
A1(+)
+24V
GND24V
A2(-)Y1 Y2
controller
Energise
Controller
Feedback
Enable
Feedback
safety
relay
X4/3
X4/5
X4/4
Feedback
power
supply
power
supply
L1
L2
L3
X1/1
X1/2
X1/3
A2: X12/4
I10T10:E0: X12/6
I11T11:E2: X12/8
S2
S1
K4
GND24V
K3
GND24V
S
5
S
4
K2
GND24V
+24V
GND24V
A2(-)
57
58
+24V
motor
motor
4
4
Safety door open
Schutztür offen
Danger Zone
Gefahrenbereich
S
3
4
Kanal 1
Channel 1
Kanal 2
Channel 2
GND24VGND24V
+24V
K2
Gerät 1
Gerät 2
Switches and buttons:
S1: Closed when the safety door is closed
S2: Closed when the safety door is closed
S3: Activate Emergency power-off module
S4: Guide Device 1 to a currentless state
S5: Guide Device 2 to a currentless state

Parker Compax3 S150 V4 Specifications

General

Output Current	150 A
Control Type	Digital
Series	Compax3
Model	S150 V4
Enclosure Rating	IP20
Communication Interfaces	CANopen, RS-232, RS-485
Feedback Options	Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Relative Humidity	5 to 95% non-condensing
Operating Temperature	0 to +45 °C (32 to 113 °F)
