Parker EME

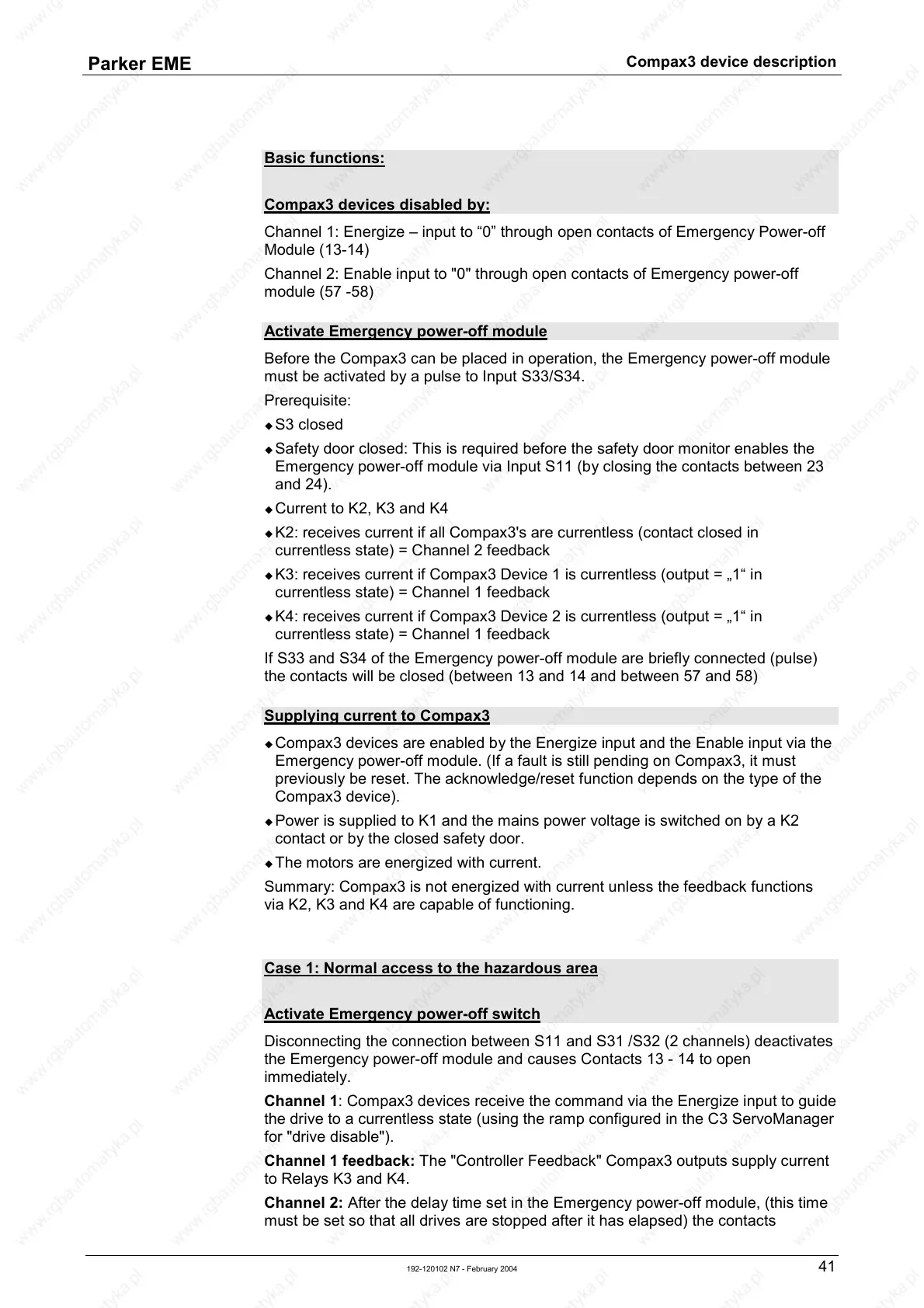

Compax3 device description
192-120102 N7 - February 2004 41
Basic functions:
Compax3 devices disabled by:
Channel 1: Energize – input to “0 through open contacts of Emergency Power-off
Module (13-14)
Channel 2: Enable input to "0" through open contacts of Emergency power-off
module (57 -58)
Activate Emergency power-off module
Before the Compax3 can be placed in operation, the Emergency power-off module
must be activated by a pulse to Input S33/S34.
Prerequisite:
! S3 closed
! Safety door closed: This is required before the safety door monitor enables the
Emergency power-off module via Input S11 (by closing the contacts between 23
and 24).
! Current to K2, K3 and K4
! K2: receives current if all Compax3's are currentless (contact closed in
currentless state) = Channel 2 feedback
! K3: receives current if Compax3 Device 1 is currentless (output = „1 in
currentless state) = Channel 1 feedback
! K4: receives current if Compax3 Device 2 is currentless (output = „1 in
currentless state) = Channel 1 feedback
If S33 and S34 of the Emergency power-off module are briefly connected (pulse)
the contacts will be closed (between 13 and 14 and between 57 and 58)
Supplying current to Compax3
! Compax3 devices are enabled by the Energize input and the Enable input via the
Emergency power-off module. (If a fault is still pending on Compax3, it must
previously be reset. The acknowledge/reset function depends on the type of the
Compax3 device).
! Power is supplied to K1 and the mains power voltage is switched on by a K2
contact or by the closed safety door.
! The motors are energized with current.
Summary: Compax3 is not energized with current unless the feedback functions
via K2, K3 and K4 are capable of functioning.
Case 1: Normal access to the hazardous area
Activate Emergency power-off switch
Disconnecting the connection between S11 and S31 /S32 (2 channels) deactivates
the Emergency power-off module and causes Contacts 13 - 14 to open
immediately.
Channel 1: Compax3 devices receive the command via the Energize input to guide
the drive to a currentless state (using the ramp configured in the C3 ServoManager
for "drive disable").
Channel 1 feedback: The "Controller Feedback" Compax3 outputs supply current
to Relays K3 and K4.
Channel 2: After the delay time set in the Emergency power-off module, (this time
must be set so that all drives are stopped after it has elapsed) the contacts
