PGP/PGM 300 Series
Gear Pumps & Motors Service Manual
Assembly Instructions
4) If the unit is equipped with an outboard bearing, install
bearing with arbor press then install new snap ring
(Fig. 5, 6, & 7).

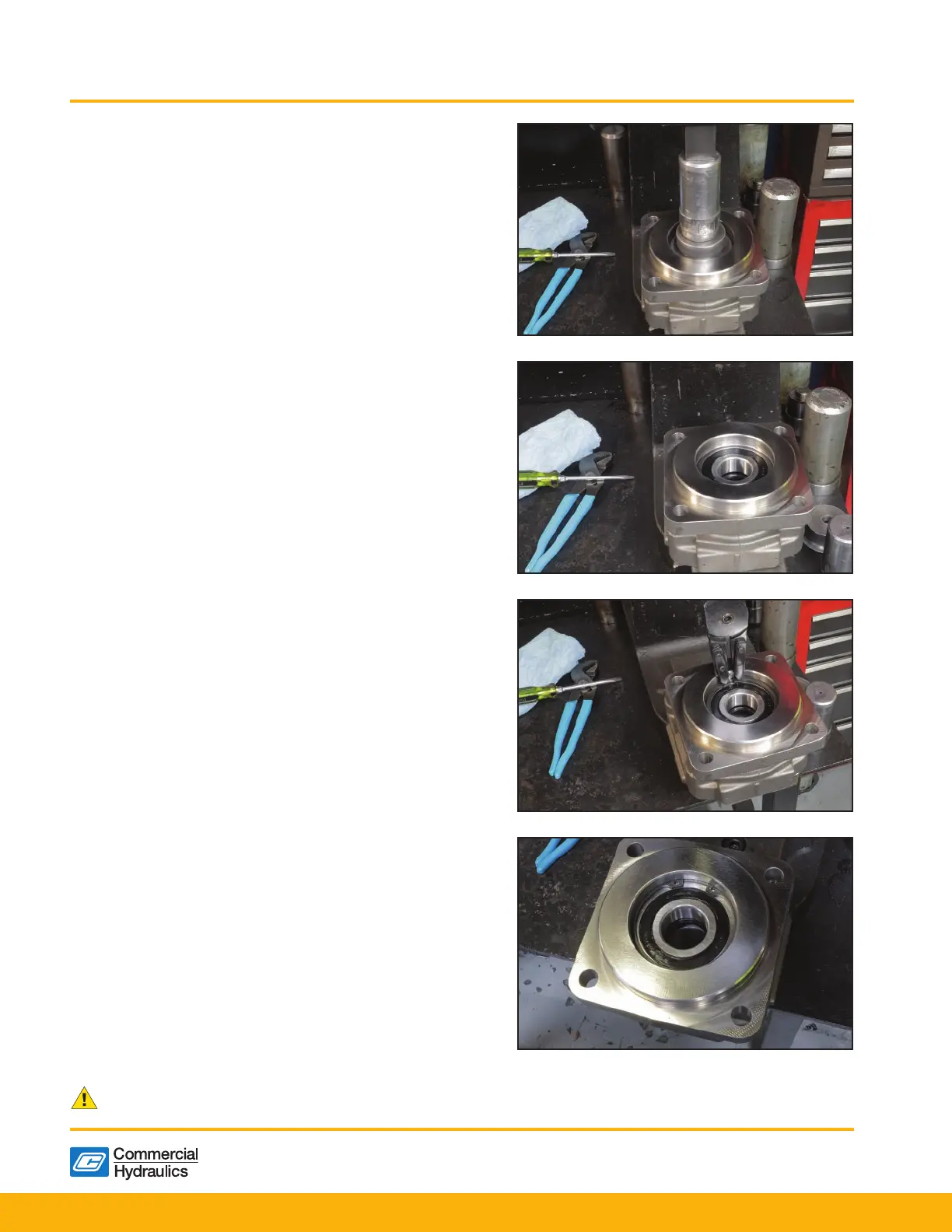

Figure 5
Figure 6
5) Assemble the snap ring
(Fig. 7 & 8)
. Using snap ring plyers,
seat new snap ring on top of bearing and lip seal.
Figure 7
Figure 8
