12
Parker Hannifin Corporation | Pump & Motor Division | Kings Mountain, NC
WARNING: This product can expose you to chemicals including lead or DEHP which are known to the state of California to cause cancer,
birth defects, and other reproductive harm. www.p65warnings.ca.gov
Assembly Instructions
Start Assembly

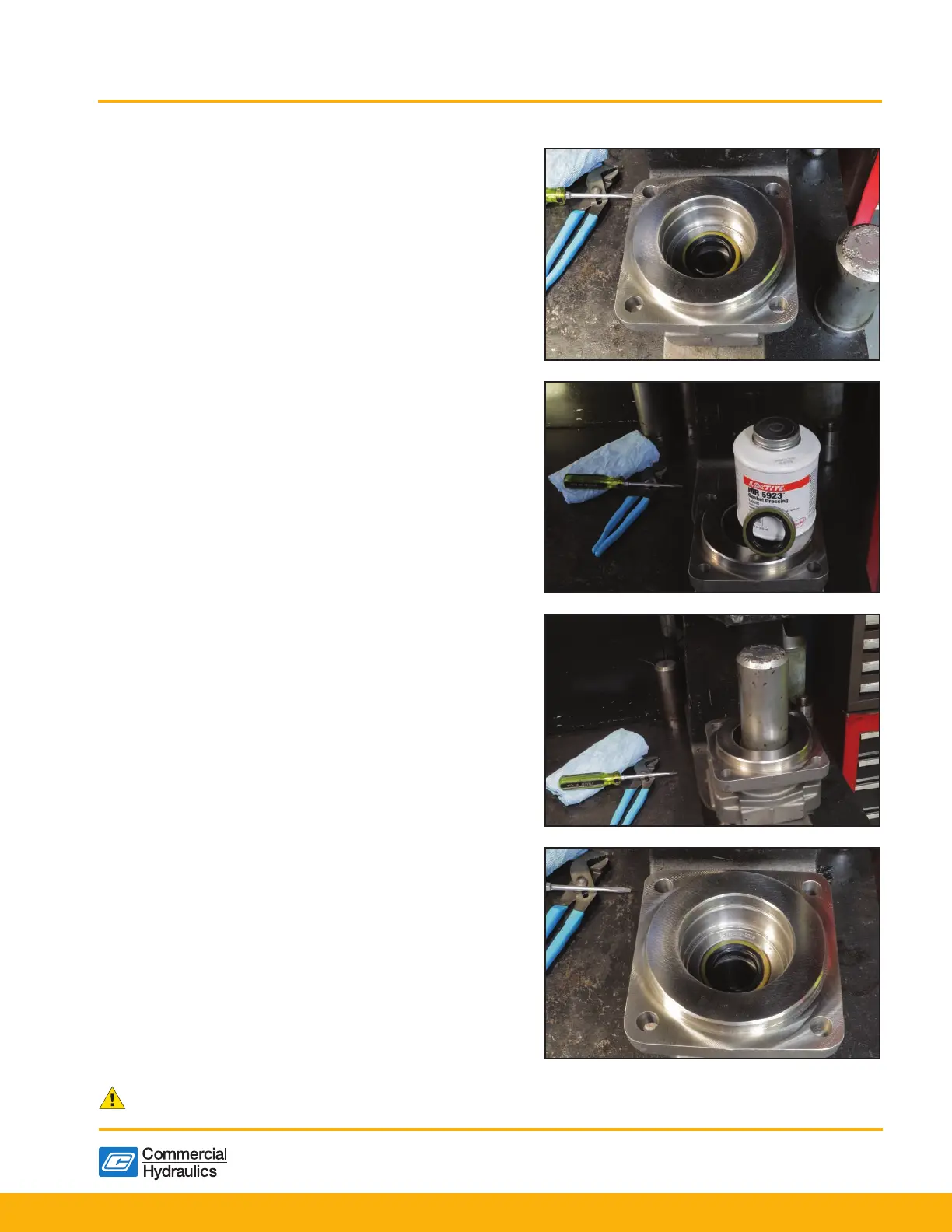

1) Before starting assembly, clean all machined surfaces and
make sure they are free of debris.
Figure 1
2) Prep new lip seal by coating the outer edge of the seal
with Aviation Gasket sealant, also coat the lip seal cavity
(Fig. 1 & 2).
Figure 2
3) Replace lip seal (Fig. 3 & 4).
With the metal side of the lip
seal up, press it into the mounting ange side of the shaft
end cover with an arbor press and bar (see Tool List on
page 4). Be careful not to damage the lip of the seal.
Press in until ush with the recess. Wipe off excess sealant.
Figure 3
Figure 4
