Parker PGP 300 Series User Manual

4
Parker Hannifin Corporation | Pump & Motor Division | Kings Mountain, NC
WARNING: This product can expose you to chemicals including lead or DEHP which are known to the state of California to cause cancer,
birth defects, and other reproductive harm. www.p65warnings.ca.gov
Catalog HY13-PMD300-SM/US
General Information
Special Steel Sleeve
The special steel sleeve is used to insert the drive shaft through the lip seal without damage and can be made from bar
stock:
PGP/PGM315: Use a 1" dia. x 3-1/8" bar
PGP/PGM330: Use a 1-1/8" dia. x 4-5/8" bar or
PGP/PGM330: Use a 1-1/4" dia. x 4-5/8" bar
PGP/PGM350: Use a 1-3/8" dia. x 4-5/8" bar
PGP/PGM365: Use a 1-1 /2" dia. x 4-5/8" bar

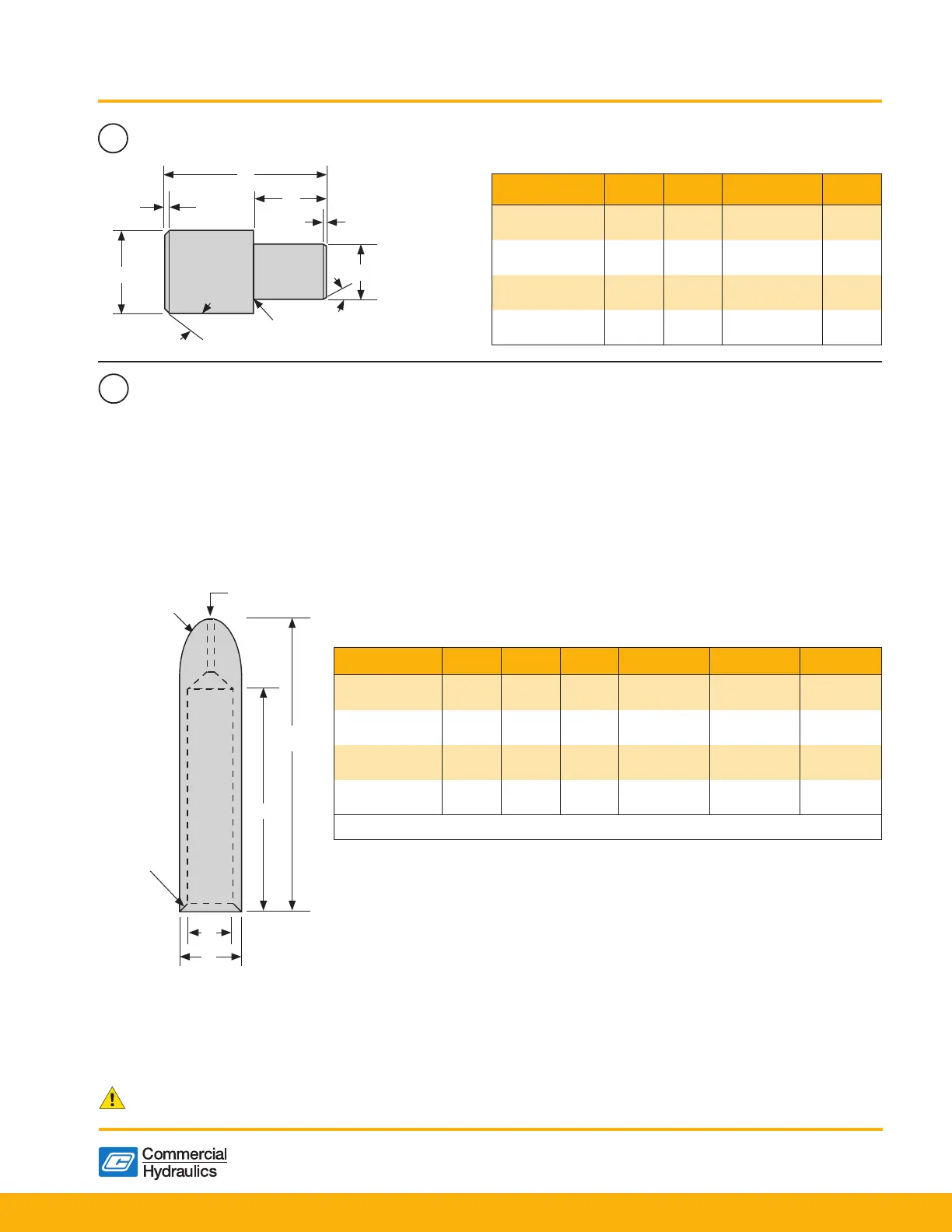

The drawing and chart give details for making this special tool.
Bushing Installation Tool: A.I.S.I 8620 Bearing Quality Steel Heat Treated
Pump/Motor A B
C
Radius
D Dia. E Dia.
F°
Chamfer
PGP/PGM 315 1-7/8" 3" 9/16" .944"
+ .000"
- .002"
.885"
+ .000"
- .002"
.050" x 60°
PGP/PGM 330 3-3/8" 4-1/2" 9/16" 1.065"
+ .000"
- .002"
1.002"
+ .000
- .002"
.015" x 45°
PGP/PGM 350 3-3/8" 4-1/2" 9/16" 1.290"
+ .000"
- .002"
1.250"
+ .000"
- .002"
.015" x 60°
PGP/PGM 365 3-3/8" 4-1/2" 9/16" 1.377"
+ .000"
- .002"
1.250"
+ .000"
- .002"
.015" x 60°
All external surfaces must be free of scratches and burrs.
D
C
Pump/Motor A B C Dia. D Dia.
PGP/PGM 315 2.312" 1.15" .937"
+ .000"
- .002"
1.250
PGP/PGM 330 3.000" 1.47" 1.054"
+ .000"
- .002"
1.250
PGP/PGM 350 3.000" 1.47" 1.282"
+ .000"
- .002"
1.625
PGP/PGM 365 3.000" 1.73" 1.492"
+ .000"
- .002"
1.750
A
.06"
.06"
30°
30°
Grind Relief Allowable
B
C
D
B
A
E
F°
C Radius
1/4" Hole Drill Through
D
