Catalog HY13-PMD600-SM/US
PGP/PGM 600 Series
Gear Pumps & Motors Service Manual
Disassembly Instructions

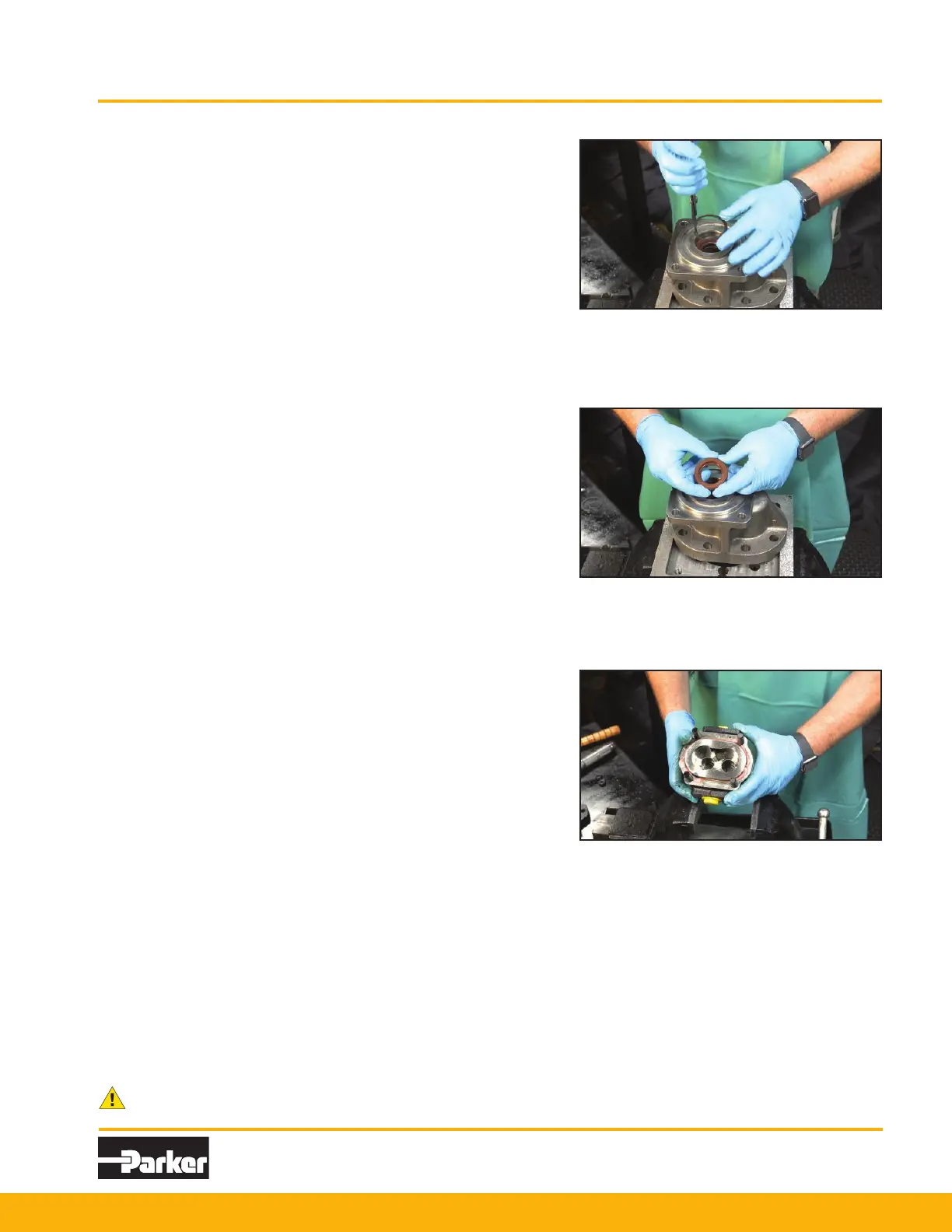

11) Remove the snap ring (Fig. 11).
Snap ring is located in front of the shaft seal ring.
Figure 11
Figure 12
12) Remove the lip seal (Fig. 12).
Be careful not to damage seal bore in pump body.
See tool list on page 3 for prying device.
Figure 13
13) Clean all faces of the body and mounting ange
from sealant and dirt (Fig. 13).
